Product Details:
|
| Product Name: | Vedio Laryngoscope | Material: | 316 Medical Stainless Steel |
|---|---|---|---|
| Resolution: | 960*480 | Display: | 3"TFT Color Display |
| Pixel: | 2million | Carema Resolution: | 1600*1200 |
| Carema: | CMOS, Double Anti Fog | Depth Of Field: | 3～100mm |
| Field Angle: | 70±2º | Stand-by Time: | ≥6h |
| Charing Time: | ≤4h | Battery Life: | Recharge＞800 Times |
| LED Light: | Illuminance ≥ 3000lux | Roatate: | Front To Right：0º～135º；left To Right：0º～275º |
| Blades: | Reusable, 5 Different Sizes | Warranty: | 1 Year |
| High Light: | 32GB USB Portable Laryngoscope,12v Medical Surgical Endoscope,Adults Anesthesia Portable Laryngoscope |
||

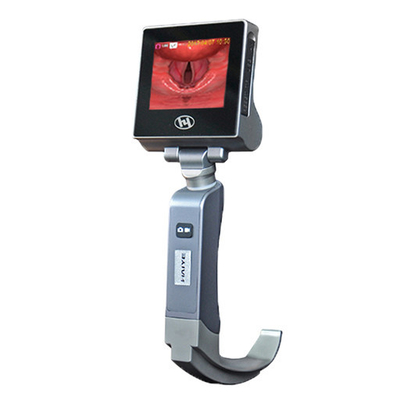

32GB USB Input Medical Surgical Portable Laryngoscope 12v Airway Intubation For Adults Anesthesia
It is often used to provoke the patient's epiglottis to expose the glottis, allowing the user to perform tracheal intubation under visual observation. Further optimization and improvement of the appearance and shape of the video laryngoscope will make the video laryngoscope more consistent with the structural characteristics of the upper respiratory tract (especially the difficult airway).
It is suitable for clinical tracheal intubation, simulation exercise, clinical teaching and difficult airway intubation in anesthesiology department, emergency department, ICU/ pediatric department, ambulance and other medical departments at all levels

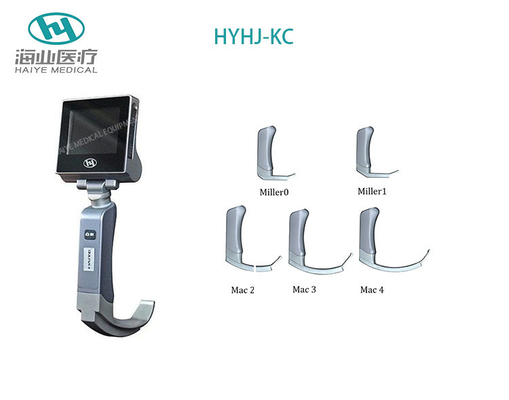

| Vedio Laryngoscope: HYHJ-KC Blades | |||||||
| Tip Size(mm) | L | H | W | Max W | Min W | Remark | |
| 1 | L Adult | 153 | 54.5 | 29.23 | 22.41 | 14.37 | MAC4 |
| 2 | M Adult | 140 | 49 | 29.23 | 21.37 | 14.46 | MAC3 |
| 3 | S Adult & L Child | 122 | 34 | 29.23 | 21.4 | 13.56 | MAC3 |
| 4 | M Child | 77.4 | 22.74 | 18.55 | 14.5 | 10.34 | Miller1 |
| 5 | S Child & Infat | 59.9 | 17.46 | 18.55 | 14.7 | 10.6 | Miller0 |
Technical Parameters of Video Laryngoscope
| Resolution | 960×480 | Pixel | 2million |
| Depth of field | 3～100mm | Field angle | 70±2º |
| Stand-by time | ≥6h | Charing time | ≤4h |
| Battery life | recharge＞800times | Display |
3"TFT color display |
| Roatate | front to right:0º～135º；left to right:0º～275º |
LED light illuminance: |
≥3000lux |
Working Condition
| Temperature | 5℃～40℃ | Humidity | ≤80% |
| Atmospheric pressure: | 860hpa～1060hpa | Charger output | 5V,2000mA |
| Charger input | 100～240V,50/60Hz,0.35A | ||
XI'AN HAIYE has been devoted to the R&D and production of products in the visual medical field since its founding, and has developed successively many kinds and full series of products, such as anesthesia laryngoscopes, video laryngoscopes, video rigid endoscopes, video flexible endoscopes, disposable uroscopes, disposable hysteroscopes.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
