Product Details:
|
| Item Name: | Handheld Video Laryngoscope | Item Weight: | <320 G |
|---|---|---|---|
| Screen Size: | 3 Inch | Screen Tilt: | 0 º~135 º |
| Rotation Angle: | 0º～275º | Viewing Angle: | ≥70º |
| Depth Of Field: | 3~100mm | Working Time: | Up To 6 Hrs |
Handheld Video Laryngoscope Used In Emergency Medical Services EMS For Airway Intubation
Handheld Video laryngoscopes are an excellent solution for difficult airways. Compared to direct laryngoscopy, Handheld video laryngoscopy offers improved glottic visualization, requires less force, and offers a better chance of success.
Product of handheld video laryngoscope HYHJ-1320 Applications:
1. Clinical endotracheal intubation.
2. Clinical teaching
3. Difficult airway intubation.
4. Anesthesiology, Emergency Diagnosis
5. ICU, Pediatrics, and Ambulance
Handheld Video Laryngoscope main features:
1. Clear view: Large depth of field, no blind area for intubation.
2. High resolution: 2 million pixels camera and 3" TFT clear color screen.
3. Intelligent: Built-in memory card is capable of data storage and output.
4. Faster: Unique anti-fog function, convenient and ready to use, no need for preheating.
5. Durable: High precision manufacturing process, ergonomic handle with S/S, long service life.
6. Convenient: Single-use laryngoscope takes pictures, records video, and frames freezing function.
7. Optimization: Large capacity imported rechargeable Li battery provides up to 6 hrs continuous usage.
8. Safety: Disposable sterilized blade packaging to prevent cross-infection for medical care personnel and patients.

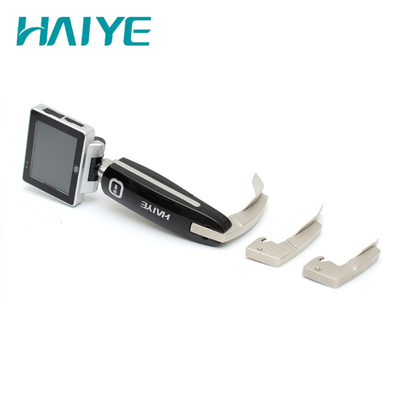

9. Versatile: One handle with 3 different S/S camera systems and disposable blade options.
Handheld Video Laryngoscope Packaging: Anti-drop plastic suitcase
Package Details: 1 Anti-drop suitcase in a standard export Carton for handha eld video laryngoscope
Carton size: 415*110*345 cm
Gross weight: 2.3 kg
Handheld Video Laryngoscope Standard equipment contains:

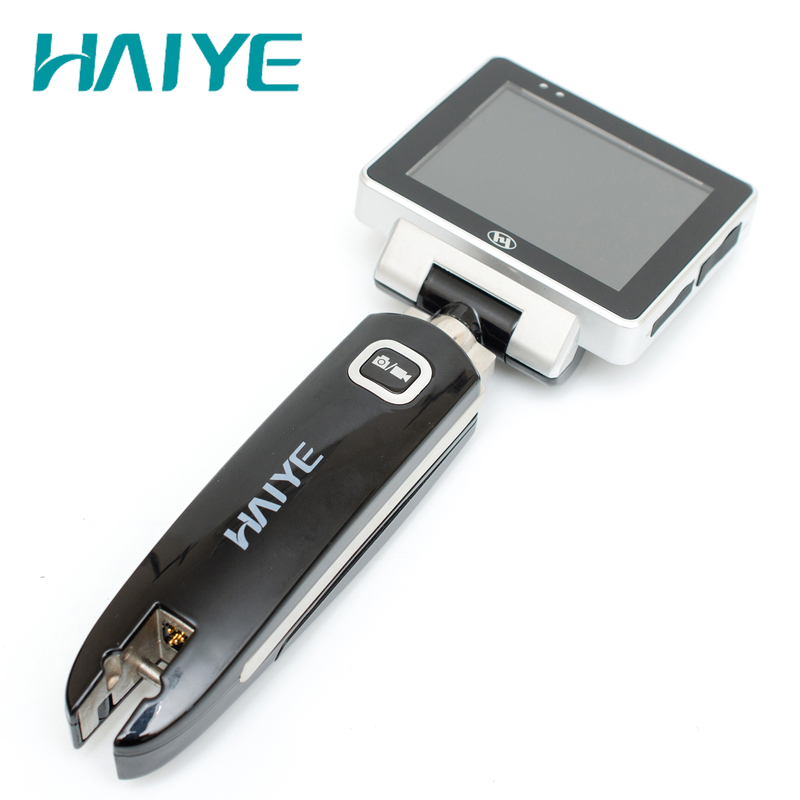

1x LCD color screen integrated with the handle
3x S/S Camera systems

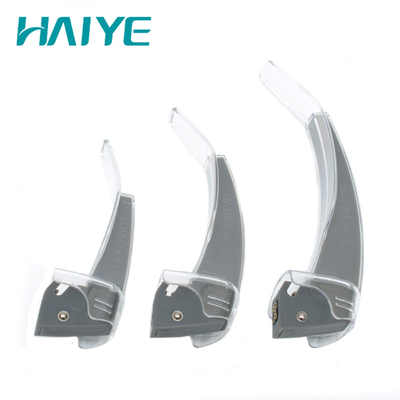

3x Disposable laryngoscope blades
1x Charger
1x Operation manual
1x Warranty card
| Item No. | HYHJ-1320 |
| Category | Disposable |
| Discription | Handheld video Laryngoscope |
| Item size:(L*W*H) | 11.9*8.5*22cm |
| Item weight | <320 g |
| Power | <2W |
| Screen size | 3 inch LCD |
| Screen resolution | 960*480 pixels |
| Tilt angle(back/forth) | 0 º~135 º |
| Rotation angle(left/right) | 0 º~275 º |
| Led light Illuminance | ≥3000 Lux |
| Camera pixels | 2 Million |
| Viewing angle | ≥70º |
| Depth of field | 3~100mm |
| Camera Anti-fog | Yes |
| Image/ Video function | Yes |
| Freeze frame function | Yes |
| Output | USB & AV output |
| Memory type | 8GB Micro SD card |
| Battery type | Rechargable Li-ion |
| Battery capacity | 3400 mAh |
| Continuous working time | ≥6 hrs |
| Charging cycles | >800 times |
| Charging time | <4 hrs |
| Charging Port | Micro USB |
| Input | 100-240V, 50 Hz |
| Output | 5V, 2000mA |
| Warranty | 12 months |
| MOQ | 1 set |
