Product Details:
|
| Material: | 304 Stainless Steel And Plastic | Color: | Silver & Metal |
|---|---|---|---|
| Screen Size: | 3 Inch | Camera: | 2 Million |
| Application: | Airway Intubation | Memory Card: | 8GB |
| Certificate: | CE ,ISO13485 , FDA | ||
| High Light: | 304 Stainless Steel Video Guided Laryngoscope,Intubation Video Guided Laryngoscope,Haiye Video Laryngoscope 8GB |
||
Remarkable Durable Video Guided Laryngoscope for Difficult Airway
What is a video guided Laryngoscope device?

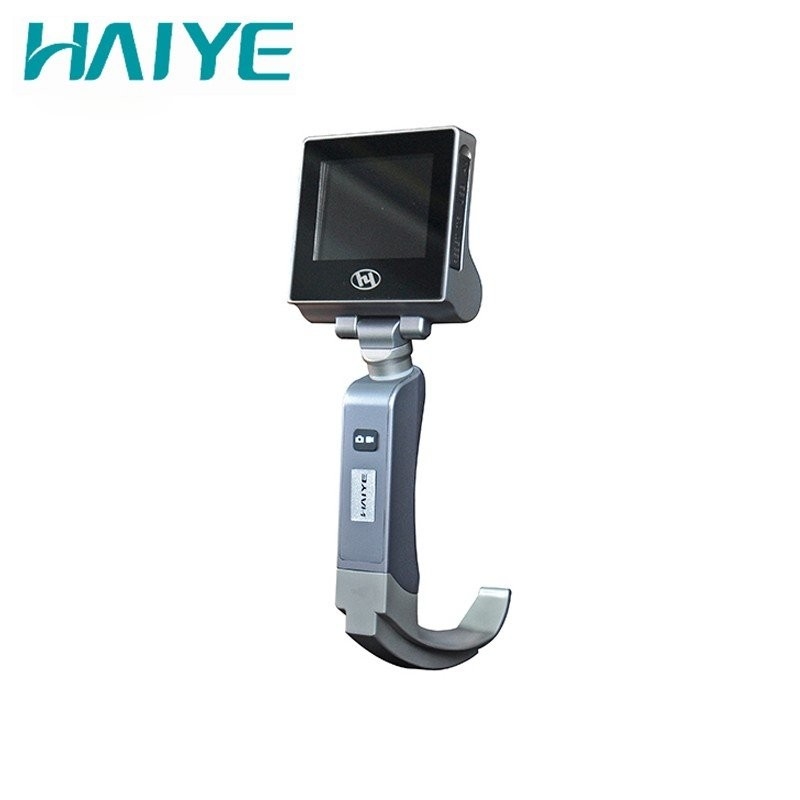

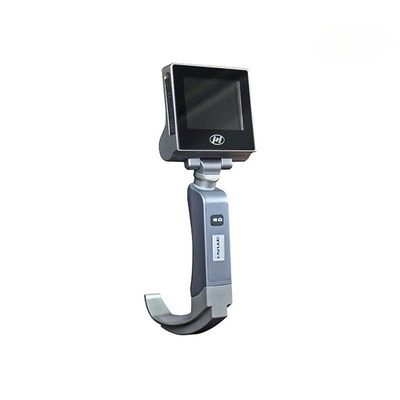

The video guided laryngoscope is a device designed to assist in the visualization of the trachea during intubation. It consists of three parts: a screen, a handle, and a blade.
Product of video guided laryngoscope HYHJ-KC Applications
1. Clinical endotracheal intubation.
2. Simulation practice
3. Clinical teaching
4. Difficult airway intubation.
5. Anesthesiology, Emergency Diagnosis
6. ICU, Pediatrics, and Ambulance
Main features of video guided laryngoscope HYHJ-KC
1. Clear view: Large depth of field, no blind area for intubation.
2. High resolution: 2 million pixels camera and 3" TFT clear color screen.
3. Intelligent: Built-in memory card is capable of data storage and output.
4. Faster: Unique anti-fog function, convenient and faster to use for tracheal intubation.
5. Durable: High precision process, ergonomic metal display screen frame and handle, long service life.
6. Convenient: Portable laryngoscope with taking pictures, video recording, and frame freezing function.
7. Reusable: A camera system in medical grade 304 S/S integrated with the handle could be sterilized and reusable.
8. Versatile: Provides up to five different camera options. Apply for extreme airways, adult large, adult medium, pediatric and neonate patients.
video guided laryngoscope Specification:
| Item No. | HYHJ-KC |
| Category | Reusable |
| Discription | Video Laryngoscope |
| Item weight | <472 g |
| Power | <2W |
| Screen size | 3 inch LCD |
| Screen resolution | 960*480 pixels |
| Tilt angle(back/forth) | 0 º~135 º |
| Rotation angle(left/right) | 0 º~275 º |
| Led light Illuminance | ≥3000 Lux |
| Camera pixels | 2 Million |
| Viewing angle | ≥70º |
| Depth of field | 3~100mm |
| Camera Anti-fog | Yes |
| Image/ Video function | Yes |
| Freeze frame function | Yes |
| Output | USB & AV output |
| Memory type | 8GB Micro SD card |
| Battery type | Rechargable Li-ion |
| Battery capacity | 3400 mAh |
| Continuous working time | ≥6 hrs |
| Charging cycles | >800 times |
| Charging time | <4 hrs |
| Charging Port | Micro USB |
| Input | 100-240V, 50 Hz |
| Output | 5V, 2000mA |
| Warranty | 12 months |

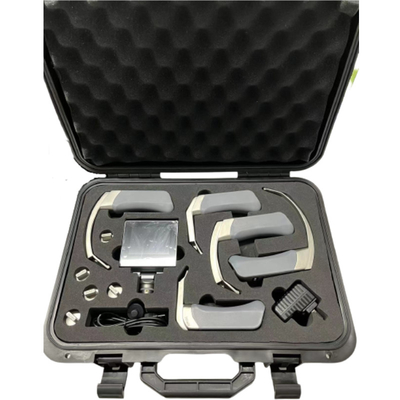

video guided laryngoscope Standard equipment contains:
1x LCD color screen
5x Camera systems integrated with S/S reusable blades
5x reusable stainless steel blades
5x Disinfection cap
1x Operation manual
1x Charger
1x Operation manual and warranty card
Video guided laryngoscope Package: High-strength protection box
Packaging Details: Standard export carton packing for a medical video laryngoscope
Package size: 415*110*345 cm
Gross weight: 3.20 kg
