Product Details:
|
| Material: | Plastic & Metal | Color: | Black And Silver |
|---|---|---|---|
| Screen: | 3 Inch | Tilt Angle: | 0 º~135 º |
| Rotation Angle(left/right): | 0º～275º | Camera: | 2 Million |
| Battery: | Rechargable | Charging Cycles: | 800 Times |
| High Light: | Rechargeable Medical Surgical Endoscope,Airway Medical Surgical Endoscope,Medical Surgical Endoscope Camera |
||

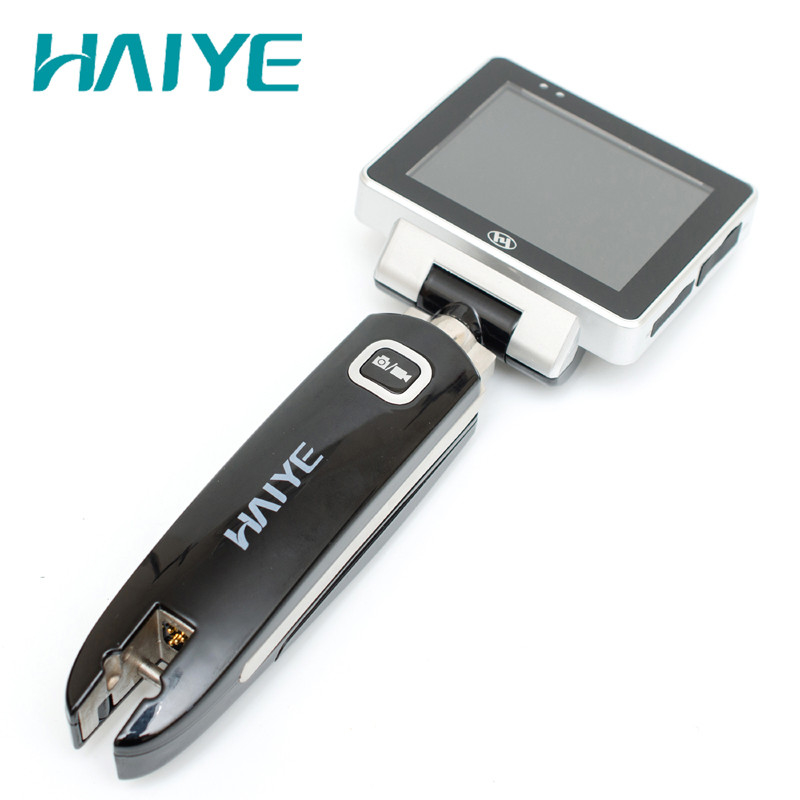

Remarkable Durable Direct Laryngoscope for Difficult Airway & Medical Surgical Endoscope
What are two types of laryngoscope blades?

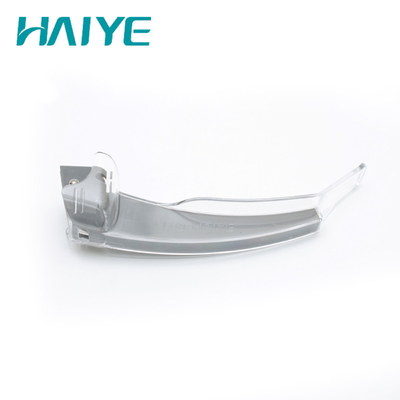

The two most commonly available types of laryngoscope blades are the straight (Miller) and the curved (Macintosh, Mac).
Product of Direct laryngoscope HYHJ-1320 Applications:
1. Clinical endotracheal intubation.
2. Clinical teaching
3. Difficult airway intubation.
4. Anesthesiology, Emergency Diagnosis
5. ICU, Pediatrics, and Ambulance
Direct Laryngoscope main features:
1. Clear view: Large depth of field, no blind area for intubation.
2. High resolution: 2 million pixels camera and 3" TFT clear color screen.
3. Intelligent: Built-in memory card is capable of data storage and output.
4. Faster: Unique anti-fog function, convenient and ready to use, no need for preheating.
5. Durable: High precision manufacturing process, ergonomic handle with S/S, long service life..
6. Convenient: Single-use laryngoscope with taking pictures, video recording, and frame freezing function.
7. Optimization: Large capacity imported rechargeable Li battery provides up to 6 hrs continuous usage.

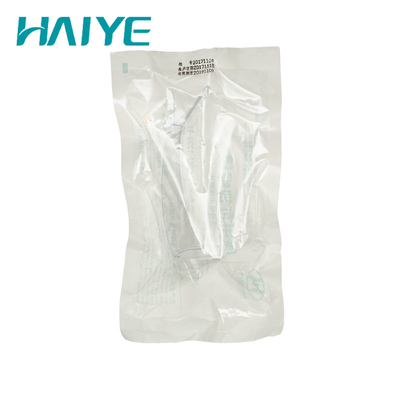

8. Safety: Disposable sterilized blade packaging to prevent cross-infection for medical care personnel and patients.

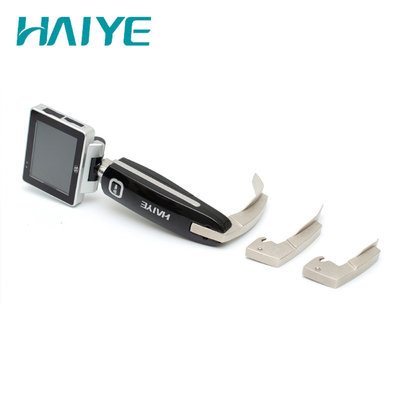

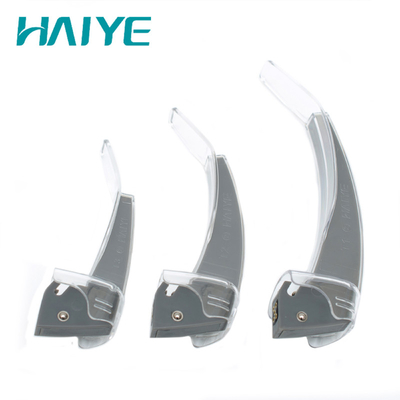

9. Versatile: One handle with 3 different S/S camera systems and disposable blade options. From neonate, pediatric to adult patients.
Video Assisted Laryngoscope Packaging: Anti-drop plastic suitcase
Package Details: 1 Anti-drop suitcase in standard export Carton for direct laryngoscope
Carton size: 415*110*345 cm
Gross weight: 2.3 kg
Direct Laryngoscope Standard equipment contains:
1x LCD color screen integrated with handle
3x S/S Camera systems
3x Disposable blades
1x Charger
1x Operation manual
1x Warranty card
| Item No. | HYHJ-1320 |
| Category | Disposable |
| Discription | Video Laryngoscope |
| Item size:(L*W*H) | 11.9*8.5*22cm |
| Item weight | <320 g |
| Power | <2W |
| Screen size | 3 inch LCD |
| Screen resolution | 960*480 pixels |
| Tilt angle(back/forth) | 0 º~135 º |
| Rotation angle(left/right) | 0 º~275 º |
| Led light Illuminance | ≥3000 Lux |
| Camera pixels | 2 Million |
| Viewing angle | ≥70º |
| Depth of field | 3~100mm |
| Camera Anti-fog | Yes |
| Image/ Video function | Yes |
| Freeze frame function | Yes |
| Output | USB & AV output |
| Memory type | 8GB Micro SD card |
| Battery type | Rechargable Li-ion |
| Battery capacity | 3400 mAh |
| Continuous working time | ≥6 hrs |
| Charging cycles | >800 times |
| Charging time | <4 hrs |
| Charging Port | Micro USB |
| Input | 100-240V, 50 Hz |
| Output | 5V, 2000mA |
| Warranty | 12 months |
| MOQ | 1 set |
