Product Details:
|
| MATERIAL: | STAINLESS STEEL | BLADE: | 5 BLADES |
|---|---|---|---|
| DISPLAY: | 3 INCH LCD SCREEN | RESOLUTION: | 960*480 |
| High Light: | 960*480 RGB adult laryngoscope,adult laryngoscope FDA ISO 13485,960*480 RGB video intubation devices |
||

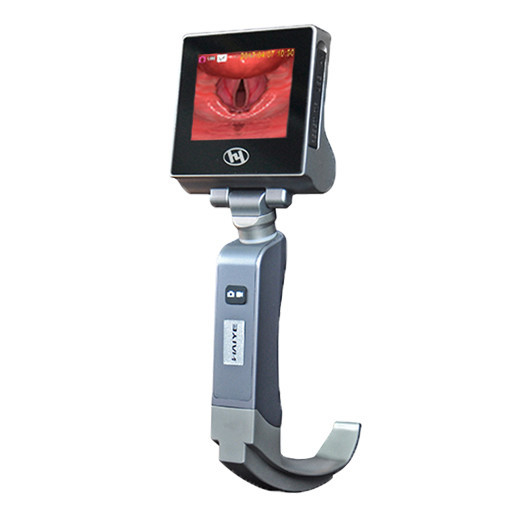

HAIYE ISO13485 certificated difficult Airway intubation Video Laryngoscope adult laryngoscope airway management

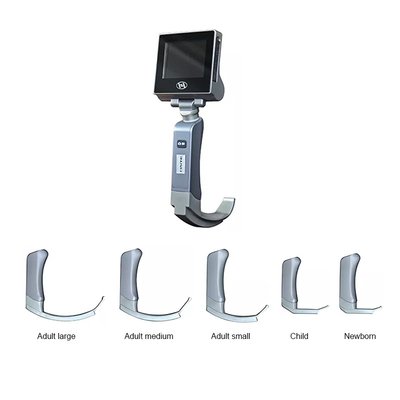

HAIYE Video Laryngoscope With 5 sized Reusable Blades For intubation
Main Features
Anti fog coating on distal lens Video/Photo function Battery rechargeable One button Only, Fast and simple operation
360 °All sight LCD, no blind spot
Application range:

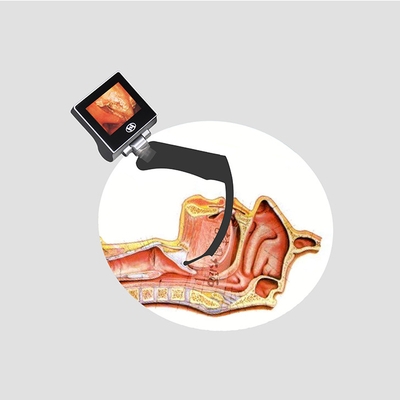

Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia, ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.
One shot button for Recording
One cable connect to PC for data management
One cable connect to large LCD for better view (option)
Full touch scree with user friendly operation
Wireless charging
Specifications for the Video Laryngoscope
| PARTS | Description | Technical Index |
| Machine | Screen | 3 inch LCD |
| Resolution | 960*480 (RGB) | |
| Viewing angle | ≥70º | |
| Power | <2W | |
| Display front and back rotation Angle | 0 º~175 º | |
| Weight | 225g | |
| Camera | Illuminance | ≥3000 LUX |
| Resolution | 1280*720 px | |
| Image/Video function | Image/ Video function | Yes |
| Output | USB output, Easy to storage and establish image/video | |
| Memory type | Micro SD card 16GB | |
| Battery | Battery Type | Rechargable lithium battery |
| Capacity | 3400mAh | |
| Cycle life of battery | >600 times | |
| Battery working time | >400min | |
| Charging time | <2(hrs) | |
| Charging Port | Micro USB | |
| Power Adapter | Input | 100-250V, 50 Hz. |
| Output | 5V1A | |
| Working Condition |
Temperature | -5℃~+50℃ |
| Humidity | 10%~90% | |
| Air Pressure | 860~1060hpa | |
| Transport / Storage Condition |
Temperature | -10℃~50℃ |
| Humidity | ≤93% | |
| Air Pressure | 500~1060hpa |
*Application:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.
