Product Details:
|
| Products Name: | Video Laryngoscope | Screen: | 3.0 Inch |
|---|---|---|---|
| Resolution: | 960*480 | Pixel: | 2 Million |
| Image/ Video Function: | Yes | Reusable Blade: | Difficulty-blade ,Large-adult ,Medium-adult ,Pediatric And Neonate |
| Material: | Stainless Steel | Certificate: | CE & FDA & ISO 13485 |
| Cycle Life Of Battery: | >600 Times | Battery: | Rechargeable Litium Battery |
| Charging Port: | Micro USB | ||
| High Light: | Micro USB direct laryngoscopy intubation,Rigid Video Laryngoscope 1280*720px,Micro USB Rigid Video Laryngoscope |
||
New Electronic Rigid Scope Video Laryngoscope Direct Laryngoscopy Intubation Resolution 1200*1600px
The video laryngoscope used the hospital.
As a perfect solution for doctors in Anesthesia, ICU, Operation Room, Emergency Rescue to handle all kinds of airway management problems.
A. Clinical endotracheal intubation.
B. Simulation practice.
C. Clinical teaching.
D. Difficult airway intubation.
Specifications for the Video Laryngoscope
|
PARTS
|
Description
|
Technical Index
|
|
Machine
|
Screen
|
3 inch LCD
|
|
Resolution
|
960*480 (RGB)
|
|
|
Viewing angle
|
≥70º
|
|
|
Power
|
<2W
|
|
|
Display front and back rotation Angle
|
0 º~175 º
|
|
|
Weight
|
225g
|
|
|
Camera
|
Illuminance
|
≥3000 LUX
|
|
Resolution
|
1200*1600 px
|
|
|
Image/Video function
|
Image/ Video function
|
Yes
|
|
Output
|
USB output, Easy to storage and establish image/video
|
|
|
Memory type
|
Micro SD card 16GB
|
|
|
Battery
|
Battery Type
|
Rechargable lithium battery
|
|
Capacity
|
3400mAh
|
|
|
Cycle life of battery
|
>600 times
|
|
|
Battery working time
|
>400min
|
|
|
Charging time
|
<2(hrs)
|
|
|
|
Charging Port
|
Micro USB
|
|
Power Adapter
|
Input
|
100-250V, 50 Hz.
|
|
Output
|
5V1A
|
|
|
Working
Condition |
Temperature
|
-5℃~+50℃
|
|
Humidity
|
10%~90%
|
|
|
Air Pressure
|
860~1060hpa
|
|
|
Transport / Storage
Condition |
Temperature
|
-10℃~50℃
|
|
Humidity
|
≤93%
|
|
|
Air Pressure
|
500~1060hpa
|
Model No.: HYHJ-KC

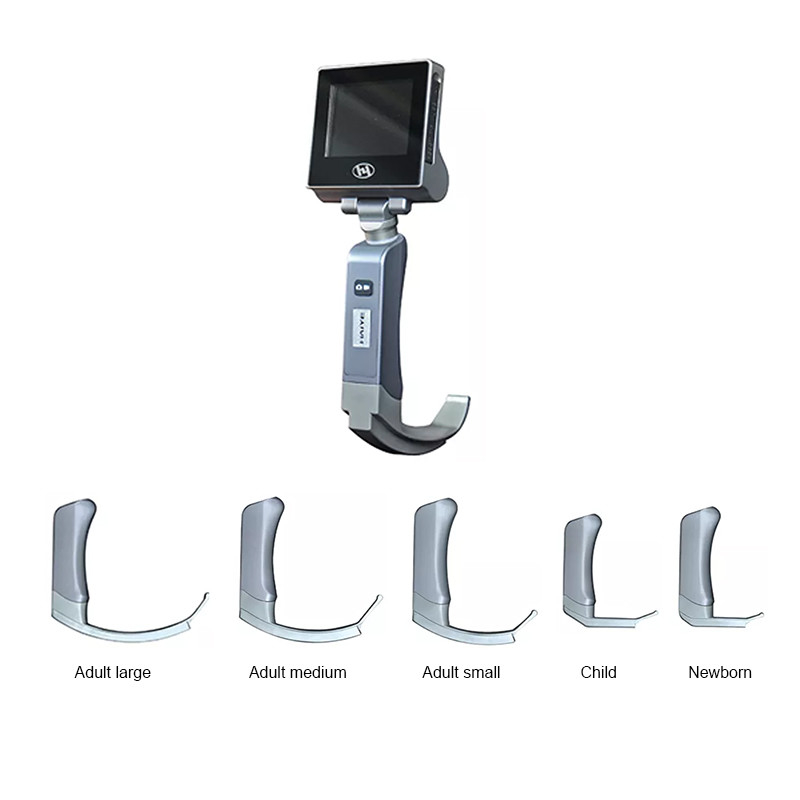

Reusable blade : 1.Difficulty -blade 2. Large-adult 3. Medium-adult 4. Pediatric 5. Neonate
Features:
*Anti fog coating on distal lens
*Video/Photo function
*Battery rechargeable
*One button Only, Fast and simple operation
*360 °All sight LCD, no blind spot
*Application range:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.
**Portable
Light weight, main unit is less than 350g. . Excellent body design, easy to install or remove. It's ready to use in no time.
Packing Size :415*110*345mm
Package Type :Carton ,Standard Export Packing for Ansthesia Video Laryngoscope With 1 blade.
