Product Details:
|
| LCD SCREEN: | 3 INCH | Material: | Stainless Steel |
|---|---|---|---|
| BLADES: | 5 BLADES | RESOLUTION: | 960*480 |
| High Light: | USB 32GB Handheld Video Laryngoscope,USB 32GB Anesthesia video laryngoscope,Anesthesia video laryngoscope HYHJ-KC |
||

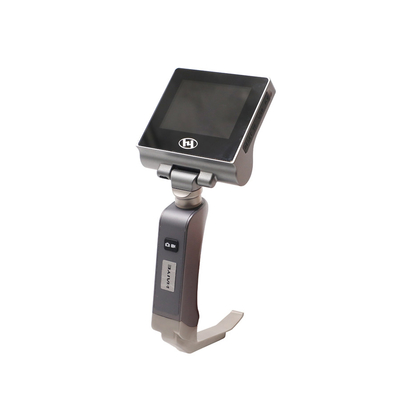

USB 32GB Portable Hospital Anesthesia department Breathing Anesthesia and Emergency Apparat Reusable video laryngoscope
Haiye Video laryngoscope with 5 sized reusable blades
As a perfect solution for doctors in Anesthesia, ICU, Operation Room, Emergency Rescue to handle all kinds of airway management problems.

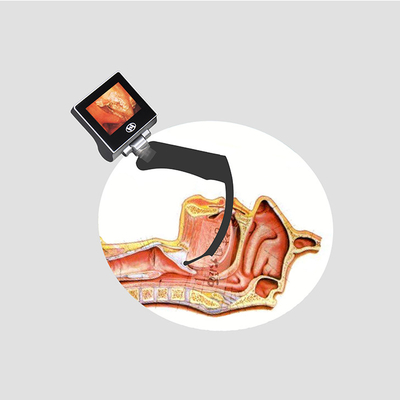

1. Clinical endotracheal intubation.
2. Simulation practice.
3. Clinical teaching.
4. Difficult airway intubation.
Video laryngoscope Specification;
| Components | Parameter | Technical index |
| Screen | Size | 3.0" LCD screen |
| Resolution | 960*480 | |
| backlight | LED | |
| From front to rear the rotation angle | 0-150° | |
| From left to right the rotation angle | 0-270° | |
| Data output | Easy to create and save the file | |
| Video Output | External monitor, facilitate teaching and demonstration. | |
| Laryngoscope blades | Resolution | 2,000,000 |
| Power | ≤12V | |
| laryngoscope blade | Reusable blades(4 model) | |
| FOV | 70±2° | |
| Illumination | ≥3000LUX | |
| Battery | Type | Lithium-ion rechargeable battery |
| Voltage | 3.7V | |
| Capacity | 3000mAh | |
| Charging times | >800 times | |
| Charging time | <4 hours | |
Applications
1. Clinical endotracheal intubation.
2. Simulation practice
3. Clinical teaching
4. Difficult airway intubation.
5. Anesthesiology, Emergency Diagnosis
6. ICU, Pediatrics and Ambulance
Main features
1. It has high precision all mold manufacturing technology, stainless steel reinforcement, not easy to damage, long service life.
2. The machine adopts imported large capacity lithium battery, which can last for more than 300 minutes.
3. It has the functions of taking pictures, videos and freeze frames, and can store and export.
4. The unique anti fog function can be used normally after 3 minutes of warm up. There is no blind area.
5. This machine has four specifications, suitable for adult large, medium size, child type and newborn type.
6. The camera system is made of medical used 304 stainless steel and can be reused after disinfection.
7. Mature reliable and fully functional electronic solutions and high-definition digital camera system, with 3 "TFT colorful display screen, image restoration effect is good.
