Home ProductsHaiye Video Laryngoscope

CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm

Certification
China Xian Haiye Medical Equipment Co.,Ltd certification
China Xian Haiye Medical Equipment Co.,Ltd certification
I'm Online Chat Now

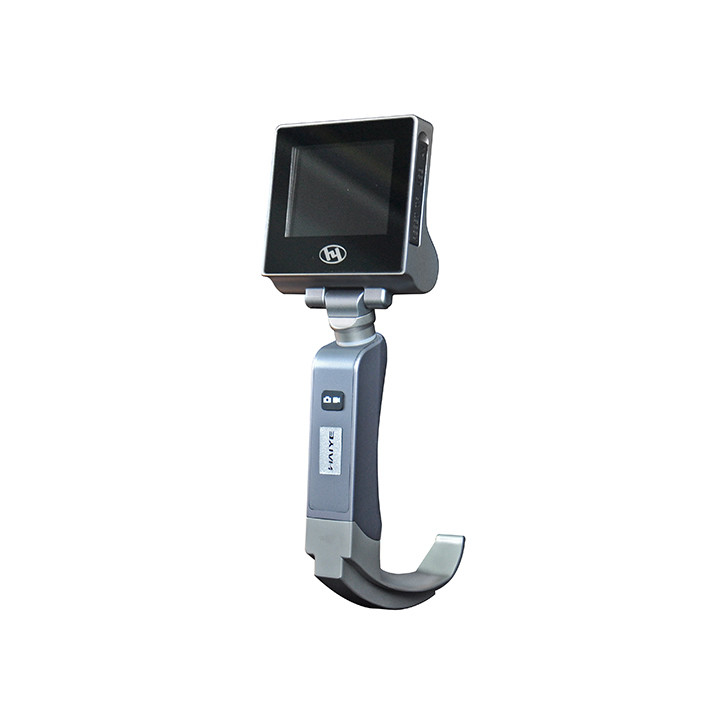

CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm

CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm
CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm

Large Image :  CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm

Product Details:
Place of Origin: China
Brand Name: Haiye
Certification: CE ,FDA ,ISO13485
Model Number: HYHJ-KC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD1000-USD1500
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 1000 sets/Month

CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm

Description
Product Name: Video Laryngoscope Screen: 3.0 Inch
Resolution: 960*480 Pixel: 2 Million
Depth Of Field: 3-100 Mm Field Angle: 70+9
Battery: Rechargeable Lithium Battery Certificate: CE & FDA & ISO13485
Cycle Life Of Battery: >600 Times Battery Working Time: >400 Hrs
Battery Capacity: 3400mA Illuminance: 3000LUX
High Light:

FDA ISO13485 Reusable video laryngoscope

,

Reusable video laryngoscope 100mm

,

airway laryngoscope 100mm

New Types Anesthesia department Difficulty Airway intubation Reusable Video Laryngoscope



Product Name: Video Laryngoscope Screen: 3.0 Inch
Resolution: 960*480 Pixel: 2 Million
Depth Of Field: 3-100mm Field Angle: 70+9
Battery: Rechargeable Lithium Battery Certificate: CE & FDA & ISO13485
Cycle Life Of Battery: >600 Times Battery Working Time: >400 Hrs
Battery Capacity: 3400mA Illuminance: 3000LUX



Specifications for the Video Laryngoscope

PARTS
Description
Technical Index
Machine
Screen
3 inch LCD
Resolution
960*480 (RGB)
Viewing angle
≥70º
Power
<2W
Display front and back rotation Angle
0 º~175 º
Weight
225g
Camera
Illuminance
≥3000 LUX
Resolution
1280*720 px
Image/Video function
Image/ Video function
Yes
Output
USB output, Easy to storage and establish image/video
Memory type
Micro SD card 32GB
Battery
Battery Type
Rechargable lithium battery
Capacity
3400mAh
Cycle life of battery
>600 times
Battery working time
>400min
Charging time
<2(hrs)

Charging Port
Micro USB
Power Adapter
Input
100-250V, 50 Hz.
Output
5V1A
Working

Condition
Temperature
-5℃~+50℃
Humidity
10%~90%
Air Pressure
860~1060hpa
Transport / Storage

Condition
Temperature
-10℃~50℃
Humidity
≤93%
Air Pressure
500~1060hpa



Features:

*Anti fog coating on distal lens
*Video/Photo function
*Battery rechargeable
*One button Only, Fast and simple operation
*360 °All sight LCD, no blind spot



*Application range:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.



NEW Medical Device Anti-fog Emergency Department Use Video Laryngoscope
Advantages

**Portable

Light weight, main unit is less than 350g. Disposable blade is vacuum packing. Excellent body design, easy to install or remove. It's ready to use in no time.



Packing and Delivery



Packing Size :400*95*360mm

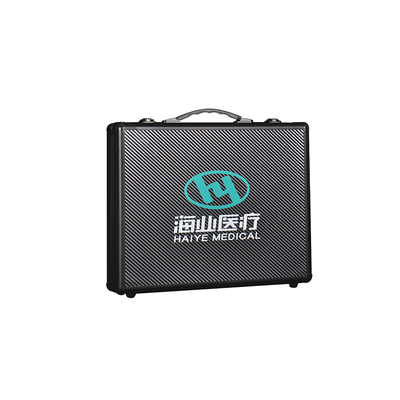

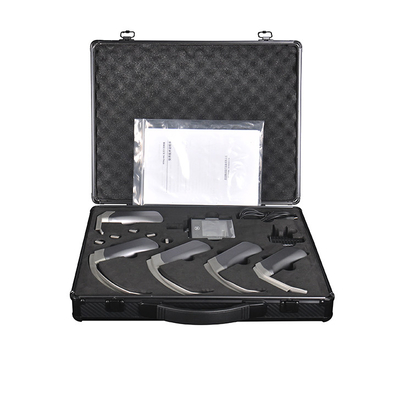

Package Type :Carton ,Standard Export Packing for Ansthesia Video Laryngoscope With 5 blades.



CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm 0









CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm 1

CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm 2

CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm 3

CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm 4



CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm 5

   HAIYE Video Laryngoscope Workshop

CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm 6

CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm 7

CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm 8

CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm 9





  Certificate





CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm 10

CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm 11

CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm 12

CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm 13

CE FDA ISO13485 Airway Reusable Video Laryngoscope 3-100mm 14
