70*2 Angle Pediatric Video Laryngoscope For Intubation 16GB

Certification
China Xian Haiye Medical Equipment Co.,Ltd certification
China Xian Haiye Medical Equipment Co.,Ltd certification
I'm Online Chat Now

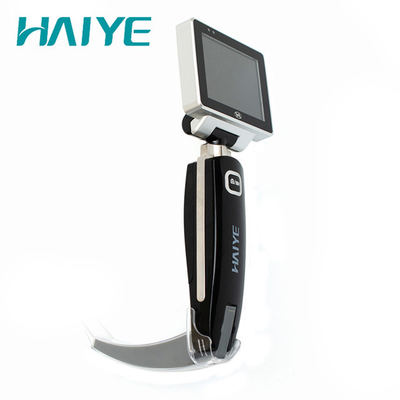

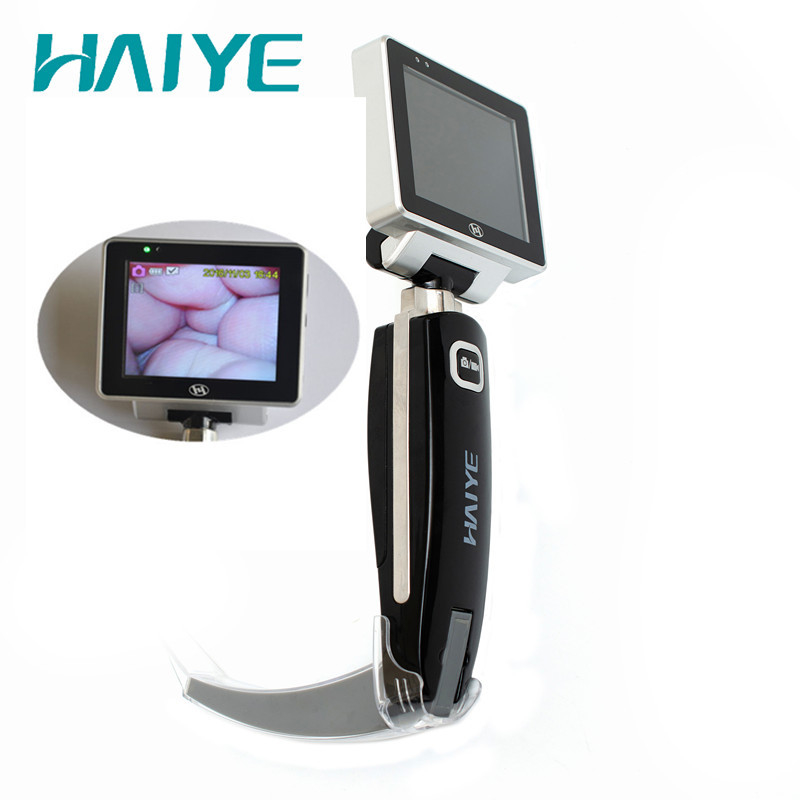

70*2 Angle Pediatric Video Laryngoscope For Intubation 16GB

70*2 Angle Pediatric Video Laryngoscope For Intubation 16GB
70*2 Angle Pediatric Video Laryngoscope For Intubation 16GB 70*2 Angle Pediatric Video Laryngoscope For Intubation 16GB 70*2 Angle Pediatric Video Laryngoscope For Intubation 16GB

Large Image :  70*2 Angle Pediatric Video Laryngoscope For Intubation 16GB

Product Details:
Place of Origin: China
Brand Name: Haiye
Certification: CE & ISO13485 & FDA
Model Number: HYHJ-1320
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 1000-1500USD/Set
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 1000 sets

70*2 Angle Pediatric Video Laryngoscope For Intubation 16GB

Description
Produts Name: Video Laryngoscope Screen: 3.0 Inch
Resolution: 960*480 Pixel: 2 Million
Material: Stainless Steel And Plastic Depth Of Field: 3-100mm
Field Angle: 70*2 Image /Video: Yes
Battery: Rechargeable Battery Certiifcate: CE ,ISO13485,FDA
High Light:

70*2 angle laryngoscope for intubation

,

laryngoscope for intubation 16GB

,

70*2 angle pediatric video laryngoscope

Emergency Difficulty Intubation Video Laryngoscope

Emergency Difficulty Intubation USB 8GB Portable Medical Monitor Reusable Blade Video Laryngoscope



Specifications for the Video Laryngoscope



Produts Name: Video Laryngoscope Screen: 3.0 Inch
Resolution: 960*480 Pixel: 2 Million
Material: Stainless Steel And Plastic Depth Of Field: 3-100mm
Field Angle: 70*2 Image /Video: Yes
Battery: Rechargeable Battery Certiifcate: CE ,ISO13485,FDA
PARTS
Description
Technical Index
Machine
Screen
3 inch LCD
Resolution
960*480 (RGB)
Viewing angle
≥70º
Power
<2W
Display front and back rotation Angle
0 º~175 º
Weight
225g
Camera
Illuminance
≥3000 LUX
Resolution
1280*720 px
Image/Video function
Image/ Video function
Yes
Output
USB output, Easy to storage and establish image/video
Memory type
Micro SD card 16GB
Battery
Battery Type
Rechargable lithium battery
Capacity
3400mAh
Cycle life of battery
>600 times
Battery working time
>400min
Charging time
<2(hrs)

Charging Port
Micro USB
Power Adapter
Input
100-250V, 50 Hz.
Output
5V1A
Working

Condition
Temperature
-5℃~+50℃
Humidity
10%~90%
Air Pressure
860~1060hpa
Transport / Storage

Condition
Temperature
-10℃~50℃
Humidity
≤93%
Air Pressure
500~1060hpa



Features:

*Anti fog coating on distal lens
*Video/Photo function
*Battery rechargeable
*One button Only, Fast and simple operation
*360 °All sight LCD, no blind spot



*Application range:
Routine and Difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, Surgical. etc.
Clinical training and teaching of tracheal Intubation.



Advantages

**Portable

Light weight, main unit is less than 350g. Disposable blade is vacuum packing. Excellent body design, easy to install or remove. It's ready to use in no time.



Packing and Delivery



Packing Size :400*95*360mm

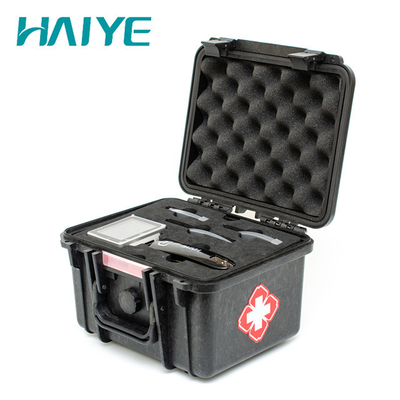

Package Type :Carton ,Standard Export Packing for Ansthesia Video Laryngoscope With 1 blade.
