Product Details:
|
| Display: | 3 "TFT Color Screen | Resolution: | 960*480 |
|---|---|---|---|
| Material: | Metal, Plastic | Weight: | 225g |
| Viewing Angle: | 70°± 2° | Depth Of Fieldh: | 3～100mm |
| Pixel: | 2million | Charing Time: | ≤4h |
| Battery Life: | Recharge＞800times | Illuminance: | ≥3000lux |
| Carema System: | 3 Types For Adults, Children, Infants | Warranty: | 1 Year |
| OEM Service: | Yes, Qty > 50 Units | Product Name: | Medical Portable Anesthesia Video Laryngoscope |
| High Light: | FDA Portable Video Laryngoscope,Stainless Steel Portable Video Laryngoscope,Medical Infants Pediatric Glidescope |
||

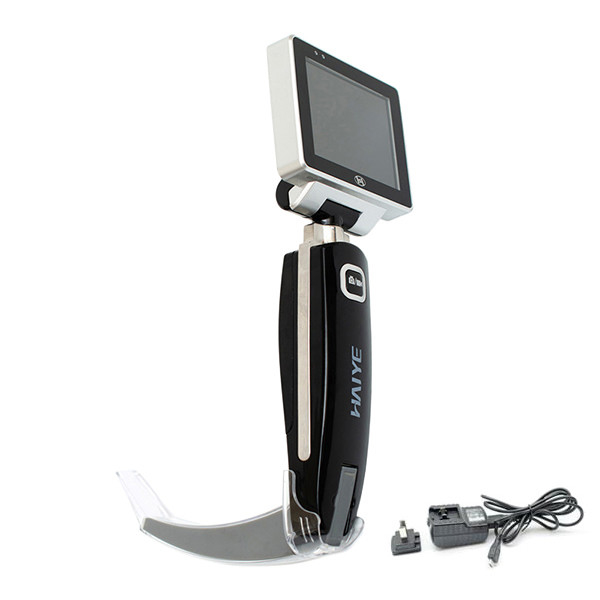

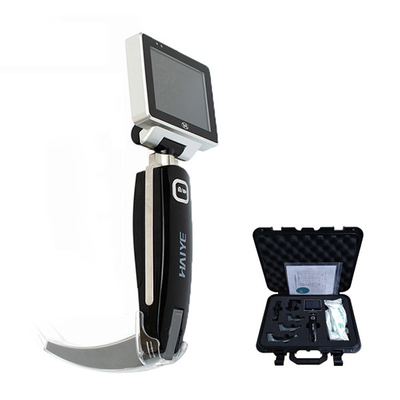

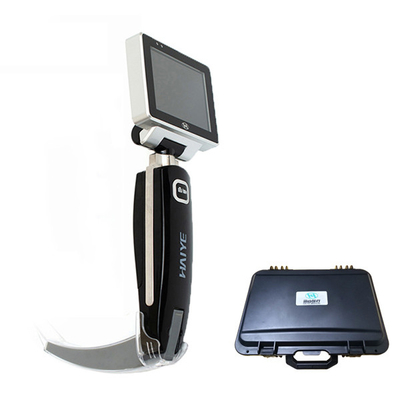

FDA Certified Medical Portable Anesthesia Stainless Steel Video Laryngoscope for adults, children, infants
Company Overview:
HYHJ-1320 Medical Visual Laryngoscope
Main Features
HYHJ-1320 medical visual laryngoscope is a forward-looking product of our company. This machine has the advantages of novel design, beautiful appearance, small size, portability, complete function and simple use. This machine is a medical visual laryngoscope which integrates functions, portability, practicability, durability and high configuration,It is a tailor-made for the people's conscience! It is an ideal teaching tool for hospital first aid, clinical application and trachea intubation lead-in teaching.
◆ With high precision, full mold manufacturing process, stainless steel reinforcement, not easy to damage, long service life;
◆ With 3 inch TFT color display screen, and can Large angle rotation up and down, left and right;
◆ The machine adopts imported high-capacity lithium battery, lasts for more than 300 minutes;
◆ With pictures, video, freeze and other functions, and can store and export;
◆ Unique dual anti fog function, that is, open and use, no preheating,intubation without blind area ;

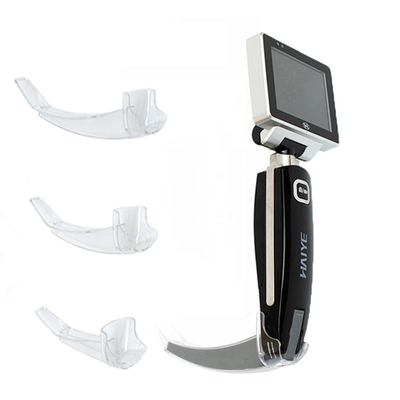

◆ With three different type of cameras , three different blades are available for adults, children and newborns.
◆ Disposable packing and sterilizing of blade to prevent cross infection;
◆ Mature, reliable, full-featured electronic solutions and high-definition digital camera system, with 3 inch TFT color display screen, the image restoration effect is good.
Technical Parameter
◆ Resolution :960×480
◆ Pixel :2 million
◆ Effective depth of field :3～100mm
◆ Field angle :70º±2°
◆ Battery life :≥6h
◆ Display: 3 "TFT color display screen
◆ Front and back rotation angle of display :0º～135º,Left and right rotation angle of display:0º～275º
◆ The light source built-in high power waterproof LED light source, and the illumination:≥3000lux
Working Environment
◆ Temperature :5℃～40℃
◆ Humidity:≤80%
◆ Atmospheric pressure :860hpa～1060hpa
◆ Charger input :100～240V,50/60Hz,0.35A
◆ Charger output :5V,2000mA
◆ Charging time :≤4h
| Item | Name | Specification |
|
parameters |
display | 3"color screen |
| field angle | 72º±5º | |
| Battery life | Imported large capacity lithium battery, continuous use ≧ 300 minutes | |
| host keys | Power key contains scale freezing function,Camera button contains the video function | |
| material | With medical 304 stainless steel parts | |
| light source | high power waterproof LED | |
| camera | double anti fog, no blind area | |
| Interface | USB interface for charging and data collection, TF card interface with hotplug function | |
| laryngoscope blade | Different specifications blades meet various oral structure, asepsis packing a one-time use | |
| charger | charger input | 100~240V,50/60Hz,0.35A |
| charger output | 5V,2000mA | |
| charging time | ＜4h | |
| work environment | temperature | 5℃～40℃ |
| humidity | ≤80% | |
| atmospheric pressure | 860hpa～1060hpa | |
| Internal power supply | Lithium ion batteries, 4.4 V to 6.0 V | |
|
Transportation and storage environment |
temperature | -40℃～+55℃ |
| humidity | ≤93% | |
| atmospheric pressure | 500hpa～1060hpa |
FAQ
Q: Are you Manufacturer?
A: We are professional manufacturer of video laryngoscope in China over 5 years, now we mainly produce video laryngoscope with disposable and reusable blade,welcome to visit our factory.
Q: What’s your MOQ and OEM service available?
A: 1 sets as sample can accept, we offer OEM service and print your logo as your requirement.
Q: Can we replace disposable and reusable blade?
A: Main machine is the same, you can match our disposable or reusable freely.
Q: Whats your warranty?
A: We offer 12 months warranty, within warranty change new machine, after warranty only pay produce cost.
