Product Details:
|
| Product Name: | Video Laryngoscope | Application: | ICU, AID |
|---|---|---|---|
| Colour: | Black | Storage: | Storage |
| Warranty: | Warranty | Screen Size: | 3" |
| Resolution: | 960*480 | Viewing Angle: | ≥70 |
| High Light: | Portable Medical Anesthesia Video Laryngoscope,Surgical Airway Video Assisted Laryngoscope,AID Anesthesia Medical Video Laryngoscope |
||
2022 Surgical All-In-One Airway Anesthesia Video Laryngoscope Portable Medical Device
Company Overview:

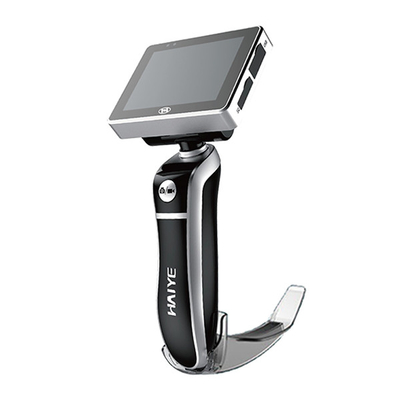

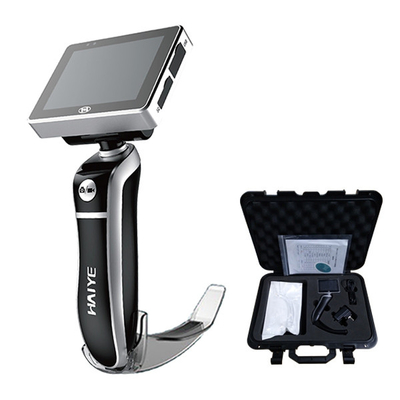

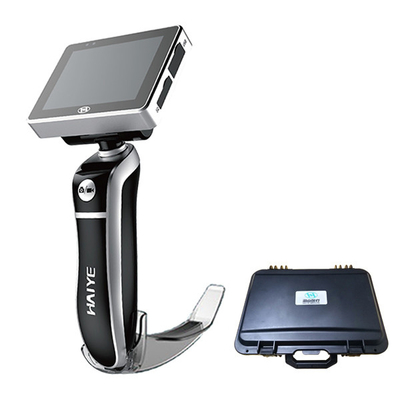

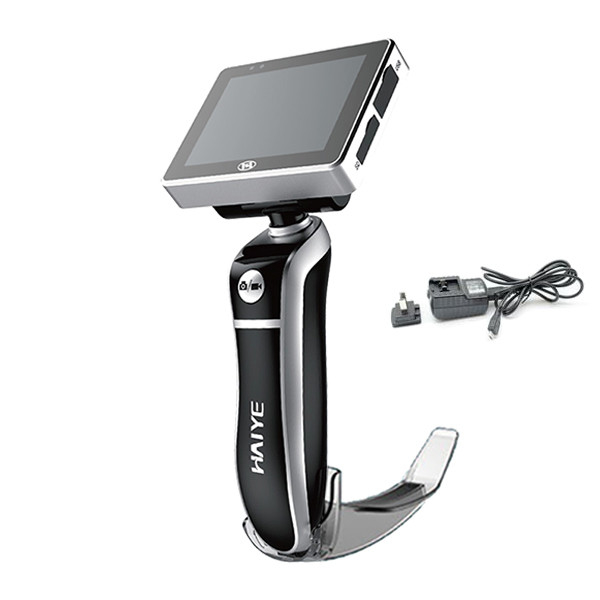

Product of video laryngoscope HYHJ-1330 II
Production Capacity:
Applications
1. Clinical endotracheal intubation.
2. Simulation practice
3. Clinical teaching
4. Difficult airway intubation.
Main features of video laryngoscope HYHJ-1330 II
| PARTS | Description | Technical Index |
|
Machine
|
Screen | 3 inch LCD |
| Resolution | 960*480 (RGB) | |
| Viewing angle | ≥70º | |
| Power | <2W | |
| Display front and back rotation Angle | 0 º~175 º | |
| Weight | 225g | |
| Camera | Illuminance | ≥3000 LUX |
| Resolution | 1280*720 px | |
| Image/Video function | Image/ Video function | Yes |
| Output | USB output, Easy to storage and establish image/video | |
| Memory type | Micro SD card 16GB | |
| Battery | Battery Type | Rechargable lithium battery |
| Capacity | 3400mAh | |
| Cycle life of battery | >600 times | |
| Battery working time | >400min | |
| Charging time | <2(hrs) | |
| Charging Port | Micro USB | |
| Power Adapter | Input | 100-250V, 50 Hz. |
| Output | 5V1A | |
| Working Condition |
Temperature | -5℃~+50℃ |
| Humidity | 10%~90% | |
| Air Pressure | 860~1060hpa | |
| Transport / Storage Condition |
Temperature | -10℃~50℃ |
| Humidity | ≤93% | |
| Air Pressure | 500~1060hpa |
Features:
*Anti fog coating on distal lens
*Video/Photo function
*Battery rechargeable
*One button Only, Fast and simple operation
*360 °All sight LCD, no blind spot
*Application range:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.
Portable
Light weight, main unit is less than 350g. Disposable blade is vacuum packing. Excellent body design, easy to install or remove. It's ready to use in no time.
Packing Size :260*230*185mm
Package Type :Carton ,Standard Export Packing for Ansthesia Video Laryngoscope With 1 blade.
Specifications of video laryngoscope HYHJ-1330
| Parts | Description | Technical Index |
| Machine | Screen | 3 inch LCD |
| Resolution | 960*480 (RGB) | |
| Viewing angle | ≥70º | |
| Power | <2W | |
| Display front and back rotation Angle | 0 º~175 º | |
| Weight | 225g | |
| Camera | Illuminance | ≥3000 LUX |
| Resolution | 1280*720 px | |
| Image/Video function | Image/ Video function | Yes |
| Output | USB output, Easy to storage and establish image/video | |
| Memory type | Micro SD card 32GB | |
| Battery | Battery Type | Rechargable lithium battery |
| Capacity | 3400mAh | |
| Cycle life of battery | >600 times | |
| Battery working time | >400min | |
| Charging time | <2(hrs) | |
| Charging Port | Micro USB | |
| Power Adapter | Input | 100-250V, 50 Hz. |
| Output | 5V1A |
FAQ
Q: Are you Manufacturer?
A: We are professional manufacturer of video laryngoscope in China over 5 years, now we mainly produce video laryngoscope with disposable and reusable blade,welcome to visit our factory.
Q: What’s your MOQ and OEM service available?
A: 1 sets as sample can accept, we offer OEM service and print your logo as your requirement.
Q: Can we replace disposable and reusable blade?
A: Main machine is the same, you can match our disposable or reusable freely.
Q: Whats your warranty?
A: We offer 12 months warranty, within warranty change new machine, after warranty only pay produce cost.
