Product Details:
|
| Products Name: | Video Laryngoscope | Disposable Blade: | 5 Size Blades |
|---|---|---|---|
| Certificate: | CE ,FDA ,ISO13485 | Blade Material: | PC |
| Batery Capacity: | 3400mA | Rechargeable Battery: | Yes |
| Storage Card: | 64 GB | Screen: | 3.5 Inch Touch Screen |
| Resolution: | 1200*1600Px | ||
| High Light: | Anti Fog Waterproof Video Laryngoscope,5 Size Blades Video Laryngoscope,3.5inch Touch Screen Medical Video Laryngoscope |
||

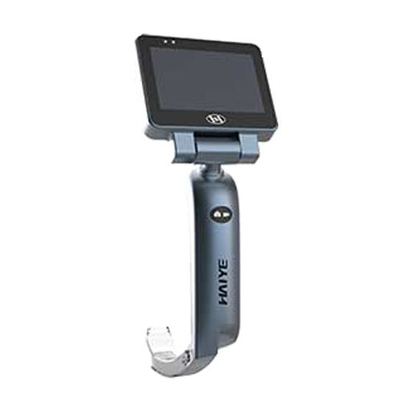

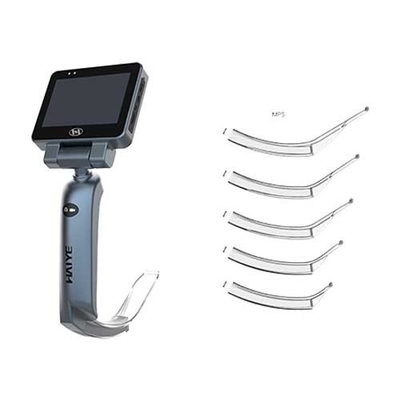

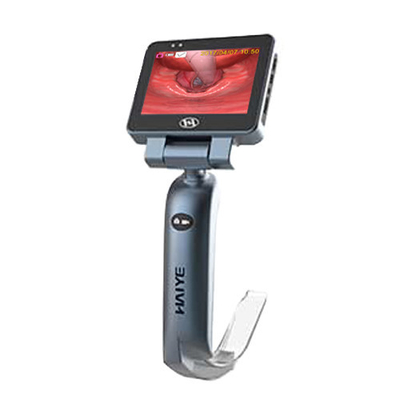

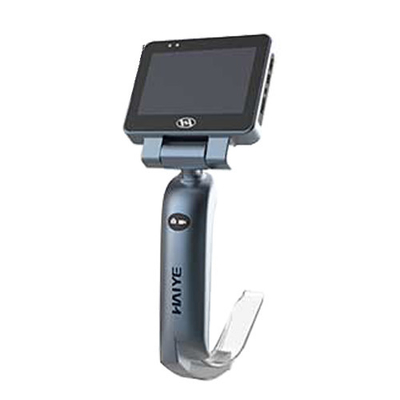

3.5inch Touch Screen Disposable 5 size Blades Anti-fog Waterproof Video Laryngoscope
New Types Anesthesia department Difficulty Airway intubation Reusable Video Laryngoscope
Company Overview:
Product of video laryngoscope HYHJ-KM

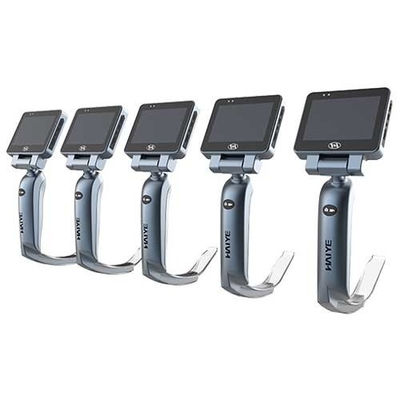

Specifications for the Video Laryngoscope
| Specification | Length of blade(L1) | Blade inserted in part length(L2) | Blade tip width(W1) | Width of blade at camera(W2) | Blade insert partial thickness(W3) |
| Mac 5 | 141.1 | 135.0 | 9.0 | 22.5 | 14.0 |
| Mac 4 | 132.1 | 126.0 | 8.8 | 22.4 | 12.3 |
| Mac 3 | 126.1 | 120.0 | 8.6 | 22.3 | 12.2 |
| Mac 2 | 116.1 | 110.0 | 8.81 | 20.9 | 11.8 |
| Mac 1 | 107.1 | 100.0 | 10.7 | 20.9 | 11.8 |
| Miller 1 | 79.6 | 68.5 | 8.1 | 14.7 | 9.6 |
| Miller 0 | 67.6 | 56.5 | 8.4 | 14.7 | 9.6 |
| Miller 00 | 57.1 | 46.0 | 8.65 | 14.7 | 9.6 |
Features:
*Anti fog coating on distal lens
*Video/Photo function
*Battery rechargeable
*One button Only, Fast and simple operation
*360 °All sight LCD, no blind spot
3.5inch Touch Screen Surgical medical equipment disposable 5 size blades Video Laryngoscope
*Application range:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.
**Portable
Light weight, main unit is less than 350g. Excellent body design, easy to install or remove. It's ready to use in no time.
Packing Size :400*95*360mm
Package Type :Carton ,Standard Export Packing for Ansthesia Video Laryngoscope With 5 disposable blades.
