Product Details:
|
| Product: | Video Laryngoscope | Screen: | 3.0 Inch |
|---|---|---|---|
| Resolution: | 960*480 | Pixel: | 2 Million |
| Material: | Medical PC | Storage Card: | 8GB To 32 GB |
| Certificate: | CE ,FDA ,ISO13485 | Depth Of Filed: | 3-100mm |
| Field Angle: | 70+2 | Battery: | Rechargeable Lithium Battery |
| Anti-fog: | Yes | Battery Cycly Life Of Time: | >600 Times |
| Battery Working Time: | >400 Hrs | ||
| High Light: | CE 3.0 Inch Anesthesia Video Laryngoscope,Medical Disposable Blades Video Laryngoscope |
||

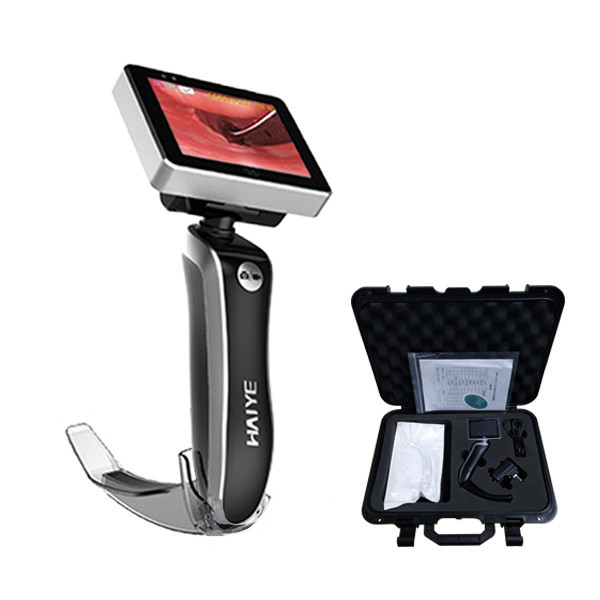

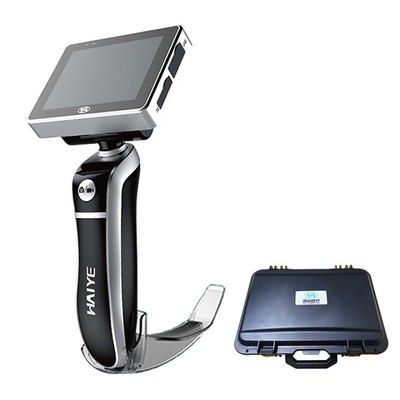

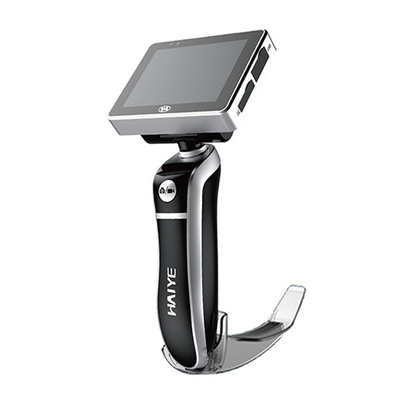

CE Certificated 3.0 inch Screen Medical Anesthesia Video Laryngoscope with Disposable Blades
Company Overview:
Product of video laryngoscope HYHJ-1330 II
Production Capacity:
Factory price Surgical and Anesthesia Disposable blade Video Laryngoscope
Portable Adult disposable blade video laryngoscope

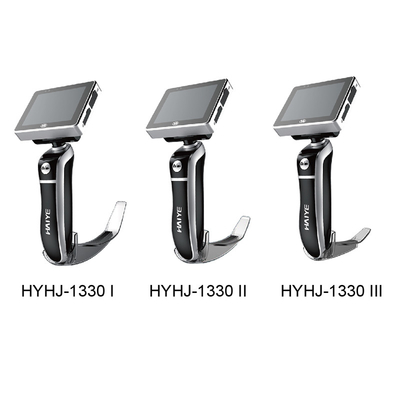

Model No.: HYHJ-1330I ,HYHJ-1330II ,HYHJ-1330III
Disposable blade : 1. Adult 2. Pediatric 3. Neonate
Specifications for the Video Laryngoscope
|
PARTS
|
Description
|
Technical Index
|
|
Machine
|
Screen
|
3 inch LCD
|
|
Resolution
|
960*480 (RGB)
|
|
|
Viewing angle
|
≥70º
|
|
|
Power
|
<2W
|
|
|
Display front and back rotation Angle
|
0 º~175 º
|
|
|
Weight
|
225g
|
|
|
Camera
|
Illuminance
|
≥3000 LUX
|
|
Resolution
|
1280*720 px
|
|
|
Image/Video function
|
Image/ Video function
|
Yes
|
|
Output
|
USB output, Easy to storage and establish image/video
|
|
|
Memory type
|
Micro SD card 32GB
|
|
|
Battery
|
Battery Type
|
Rechargable lithium battery
|
|
Capacity
|
3400mAh
|
|
|
Cycle life of battery
|
>600 times
|
|
|
Battery working time
|
>400min
|
|
|
Charging time
|
<2(hrs)
|
|
|
|
Charging Port
|
Micro USB
|
|
Power Adapter
|
Input
|
100-250V, 50 Hz.
|
|
Output
|
5V1A
|
|
|
Working
Condition |
Temperature
|
-5℃~+50℃
|
|
Humidity
|
10%~90%
|
|
|
Air Pressure
|
860~1060hpa
|
|
|
Transport / Storage
Condition |
Temperature
|
-10℃~50℃
|
|
Humidity
|
≤93%
|
|
|
Air Pressure
|
500~1060hpa
|
Main Features
Anti fog coating on distal lens Video/Photo function Battery rechargeable One button Only, Fast and simple operation
360 °All sight LCD, no blind spot
Application range:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia, ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.
One shot button for Recording
One cable connect to PC for data management
One cable connect to large LCD for better view (option)
Full touch scree with user friendly operation
Wireless charging
FAQ
Q: Are you Manufacturer?
A: We are professional manufacturer of video laryngoscope in China over 5 years, now we mainly produce video laryngoscope with disposable and reusable blade,welcome to visit our factory.
Q: What’s your MOQ and OEM service available?
A: 1 sets as sample can accept, we offer OEM service and print your logo as your requirement.
Q: Can we replace disposable and reusable blade?
A: Main machine is the same, you can match our disposable or reusable freely.
Q: Whats your warranty?
A: We offer 12 months warranty, within warranty change new machine, after warranty only pay produce cost.
