Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades

Certification
China Xian Haiye Medical Equipment Co.,Ltd certification
China Xian Haiye Medical Equipment Co.,Ltd certification
I'm Online Chat Now

Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades

Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades
Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades
Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades

Large Image :  Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades

Product Details:
Place of Origin: China
Brand Name: HAIYE
Certification: CE ,ISO13485 ,FDA
Model Number: HYHJ-KC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1000-USD1500/Set
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 1000 sets

Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades

Description
Product Name: Video Laryngoscope Screen: 3.0 Inch
Resolution: 960*480 Image /Video: Yes
Storage SD Card: 32 GB Material: Stainless Steel
Blade: Reusable Blade 5 Size Certificate: CE ,ISO13485
Depth Of Field: 3-100mm Field Angle: 70+2
Battery: Recargeable Lithium Battery Batetry Capacity: 3400mA
Battery Cycle Of The Time: >600 Times Battery Working Time: >400 Hrs

Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades



Company Overview:



Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 0






Product of video laryngoscope HYHJ-KC



Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 0






Specifications for the Video Laryngoscope

PARTS
Description
Technical Index
Machine
Screen
3 inch LCD
Resolution
960*480 (RGB)
Viewing angle
≥70º
Power
<2W
Display front and back rotation Angle
0 º~175 º
Weight
225g
Camera
Illuminance
≥3000 LUX
Resolution
1280*720 px
Image/Video function
Image/ Video function
Yes
Output
USB output, Easy to storage and establish image/video
Memory type
Micro SD card 32GB
Battery
Battery Type
Rechargable lithium battery
Capacity
3400mAh
Cycle life of battery
>600 times
Battery working time
>400min
Charging time
<2(hrs)

Charging Port
Micro USB
Power Adapter
Input
100-250V, 50 Hz.
Output
5V1A
Working

Condition
Temperature
-5℃~+50℃
Humidity
10%~90%
Air Pressure
860~1060hpa
Transport / Storage

Condition
Temperature
-10℃~50℃
Humidity
≤93%
Air Pressure
500~1060hpa



Features:

*Anti fog coating on distal lens
*Video/Photo function
*Battery rechargeable
*One button Only, Fast and simple operation
*360 °All sight LCD, no blind spot



Surgical medical equipment Reusable 5 size blades Video Laryngoscope



*Application range:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.



NEW Medical Device Anti-fog Emergency Department Use Video Laryngoscope
Advantages

**Portable

Light weight, main unit is less than 350g. Excellent body design, easy to install or remove. It's ready to use in no time.

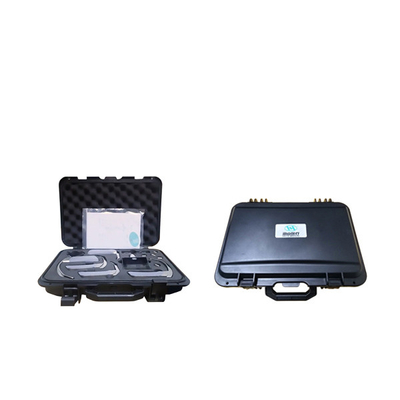

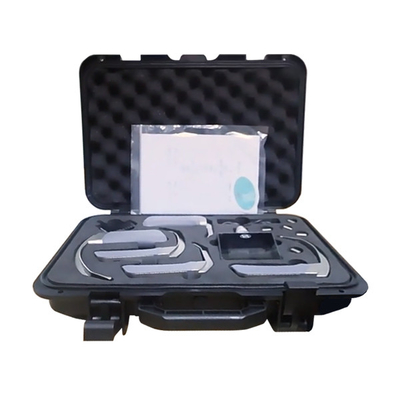

Packing and Delivery



Packing Size :400*95*360mm

Package Type :Carton ,Standard Export Packing for Ansthesia Video Laryngoscope With 5 blades.



Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 2Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 3Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 4Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 5









Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 6Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 7



Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 8

Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 9

Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 10





Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 11

Certificate





Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 12

Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 13

Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 14

Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 15

Haiye Video Laryngoscope 3000 Lux with 5 Size Reusable Blades 16





Contact us:



HAIYE MEDICAL (Professional Manufacturer of Video Laryngoscope)



FAQ



Q: Are you Manufacturer?
A: We are professional manufacturer of video laryngoscope in China over 5 years, now we mainly produce video laryngoscope with disposable and reusable blade,welcome to visit our factory.


Q: What’s your MOQ and OEM service available?
A: 1 sets as sample can accept, we offer OEM service and print your logo as your requirement.


Q: Can we replace disposable and reusable blade?
A: Main machine is the same, you can match our disposable or reusable freely.


Q: Whats your warranty?
A: We offer 12 months warranty, within warranty change new machine, after warranty only pay produce cost.
