Product Details:
|
| Product Name: | Disposable Video Laryngoscope | Display: | 3.0 Inch LCD Screen |
|---|---|---|---|
| Display Resolution: | 960 X 480 | Pixels: | 2 Million |
| Viewing Angle: | 70 ± 2 Degree | Depth Of Field: | 3~100mm |
| Battery Working Time: | Continous Use ≥ 350 Mins | Blades: | Aseptic Packaging Single Use Disposable Blades |
| Carema Resolution: | 1280 X 720 | Light Source: | Waterproof LED Light Source |

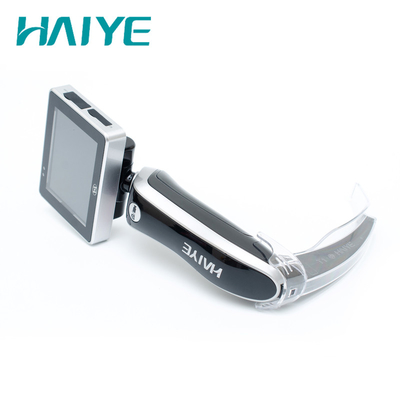

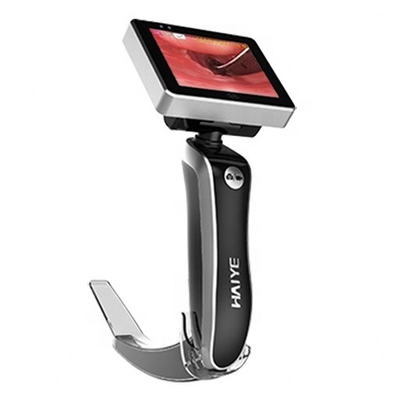

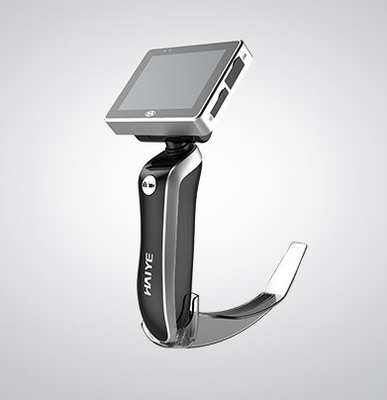

1280 x 720 Carema Resolution Waterproof LED Light Source Disposable Video Laryngoscope
The HYHJ-1330 Video laryngoscope has 3 specifications, suitable for adult large, children's type, newborn type; The camera system of video laryngoscope is finely processed from 304 stainless steel, which can be reused after sterilization, saving costs for users More than six hours of battery life .The kep unit is using stainless steel laryngeal blades as standard, other sizes of laryngoscopes blades can also be choosed as required.
Name Technical term Technical Index
Machine
Display Resolution 960 x 480
Pixels 2 million
Carema Resolution 1280 x 720
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Roatate angle front to back: 135 º, left to right: 275 º
laryngoscope 3 different types disposable blades,aseptic packaging for single use
Adapter Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output
Battery
Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continous use ≥ 350 mins
Working Condition
Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Technical Index
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope blades | 3 different types disposable blades,aseptic packaging for single use | |
| Adapter | Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |

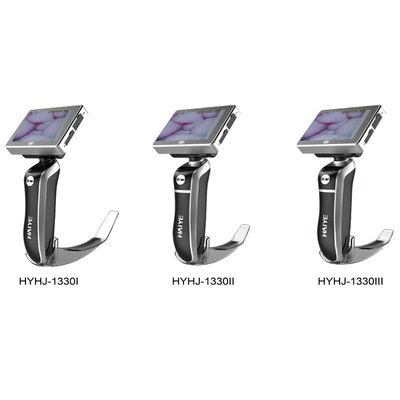

HYHJ-1330 3 types united design metal grade handle for you to choose:
1330I 1330II 1330 III
Welcome to inquiry if you have any interests!
OEM order is acceptable.
