Product Details:
|
| Product Name: | Optical Video Laryngoscope | Blades Type: | 3P Medical Grade Disposable Blades |
|---|---|---|---|
| Display Resolution: | 960 X 480 | Pixels: | 2 Million |
| Viewing Angle: | 70 ± 2 Degree | Depth Of Field: | 3~100mm |
| Cycle Life Of Battery: | > 800 Times | Battery Working Time: | Continous Use ≥ 350 Mins |
| Display: | 3.0 Inch LCD Screen | Warranty: | 1 Year |
| OEM Service: | Yes, Qty > 50 Units | ||
| High Light: | 3.0 Inch LCD Optical Laryngoscope,3P Medical Blades Optical Laryngoscope,Optical Handheld Video Laryngoscope |
||

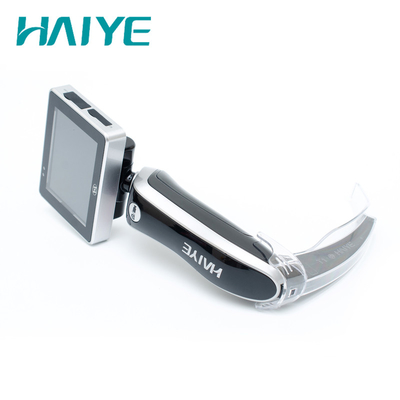

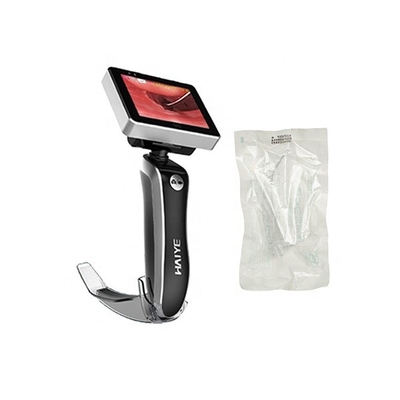

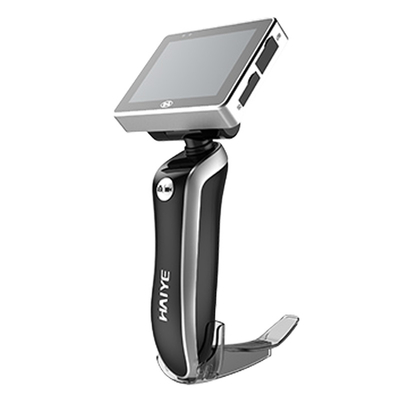

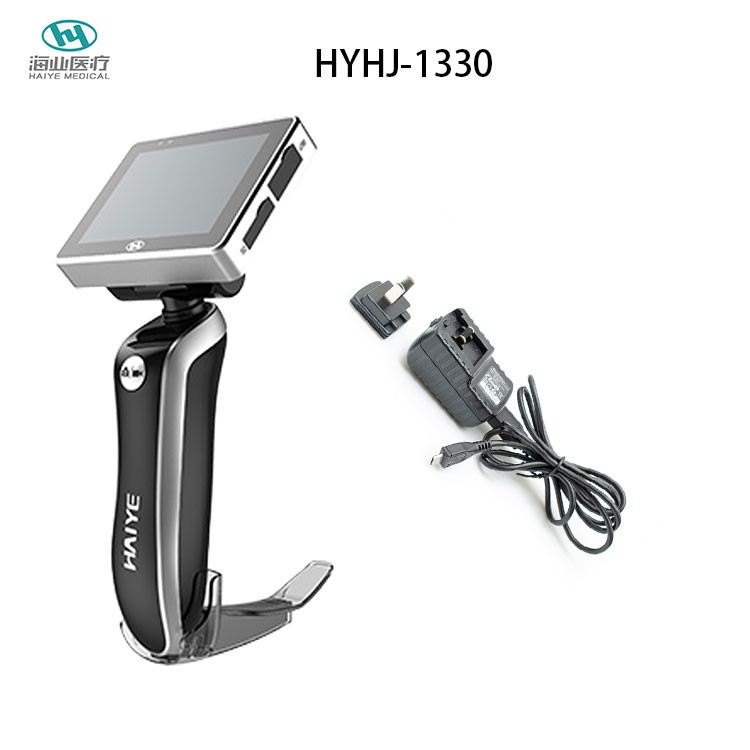

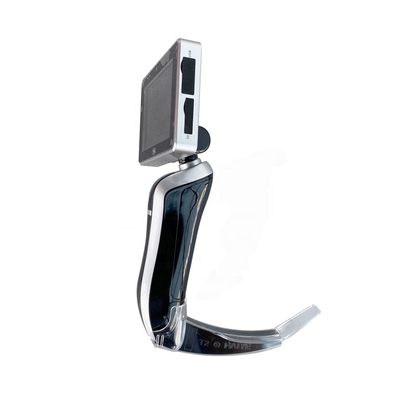

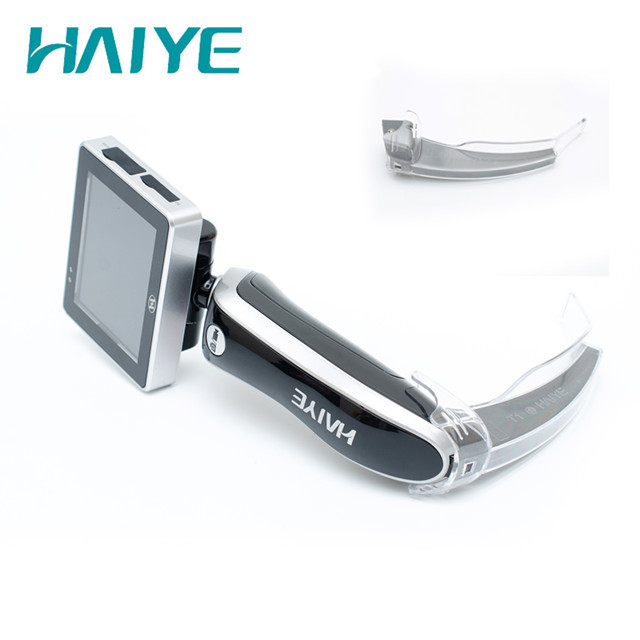

3.0 inch LCD Optical Video Laryngoscope with 3P Medical Grade Disposable Blades
5 to choose the HAIYE MEDICAL Video laryngoscope :
1. Processing and customization: real-time quotation of quality video laryngoscope wholesale
2. Rich experience; Years of video laryngoscope experience is reliable
3. Adequate stock, large stock on conventional spot of video laryngoscope
4. Factory price direct sales: preferential prices to buy high quality video laryngoscopes
5. Integrity business: complete qualifications, its video laryngoscope won a variety of awards and certificates of honor
1. Haiye Video laryngoscope is Real-time high-definition noise-free image output, camera resolution up to 1280 x7 20, can accurately and clearly present the oral structure
2. Haiye Video laryngoscope's Simple structure, rapid intubation operation, lens field of view 70 degrees/depth of field 3-100mm can clearly show the patient's internal condition, accurately find the glottis, avoid the doctor blind insertion, assist the rapid completion of intubation
3. Video Laryngoscope peeping piece comes with anti-fog function, disposable vacuum packaging, made of high strength medical PC material, 3 sizes available for choice, suitable for patients of various body types and oral structures can be used
4. The video laryngoscope is lightweight and easy to carry. It is suitable for auxiliary intubation in various emergency medical places, which improves the rescue rate of medical accidents and reduces the medical risk of patients
Technical Index
| Name | Technical term | Technical Index |
|
Machine |
Screen Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Double anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope blades | 3 Disposable blades, aseptic packaging for single use | |
|
Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continous use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
