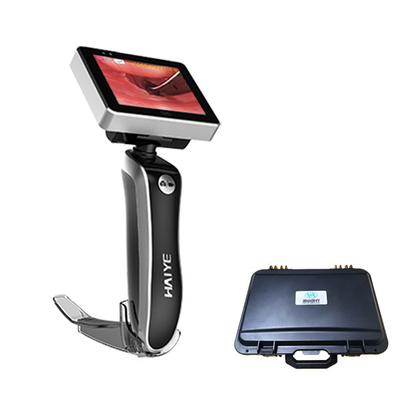

China Manufacturer Portable Video Laryngoscope Malleable Anti-fog with Reusable and Disposable Blades
Planning for the difficult airway, expected or unexpected, is no longer a challenge when intubating a patient. Whether an adult or a child, with HAIYE , you are always prepared for the difficult airway.
HAIYE is designed to enable quick and easy intubation with its display providing a consistent clear real-time view of your patient’s airway. The single-use blades are available in 5 different sizes and offers the choice of two blade types, allowing you to keep your preferred intubation technique.
Make your first attempt your only attempt Bright white LED light offers a 60˚ field of view for an improved view of the glottic area. Combined with an optimized focal camera, blackout and blind-spot reduction technology, Video Laryngoscopes reduce the shadowing effect of an ET Tube when inserted into the upper airway.
Video assisted intubation
70˚ field of view
Bright White LED
Ideal for Elective and Unanticipated Difficult Airways
Difficult airways remain a challenge and unsuccessful management of the difficult airway is a main cause of complication in anesthesia. When intubating, either electively or facing an unanticipated difficult airway, it is recommended the products used are reliable and familiar.
Video Laryngoscope Macintosh blade is the same shape and profile of the successful and reliable BritePro Solo, providing reliability with the added advantage of video technology. Apply familiar airway management techniques with confidence while sharing a better view with your team.
Plug & Go
Video Laryngoscope has an intuitive “Plug and Go” interface. Wake the display with one touch of a button. The responsive, text-free display is ready to go.
More Available Space
At 12mm height, the Video Laryngoscope blade, improves visualization of the airway, increases maneuverability and working space reducing the risk of dental trauma.
Ultimate Confidence & Control
The single-use handle provides significant grip and comfort, with reduced height to facilitate difficult intubation particularly for situations with limited neck movement and obesity.
Optimal View
Achieve the optimal screen viewing angle for you and the team, improving efficiency and decision making.
Single-use safety
The handle and blade of ProVu Video Laryngoscope is a single-use device, reducing the risk of cross-infection, reprocessing costs, time and storage.
100% All Metal Blade
Specially engineered metal blade provides the confidence needed for direct and video laryngoscopy.
Anti-Fog Design
The internally mounted Anti-Fog design reduces the need for warm up time and allows users to intubate quickly with a clear view.
Blade and Handle assists with either Routine and Difficult Airways.
The Macintosh blade is the same shape and profile of the successful and reliable BriteBlade Pro, ideal for routine intubation, but with the advantages of video technology to aid intubation.
The shape, profile and angulation of the Hyper Blades provide a superior view of the glottic opening without having to align the oral, pharyngeal and laryngeal axis reducing the need for lifting pressure and potential for trauma to the patient. Ideal for difficult, anterior airways and patients with restricted neck movement.
For fast and reliable intubation, nothing is more important than the best view of the glottis - with a bright and sharp image. This is true for every intubation – and even more so for difficult, unforeseen situations. HYHJ-1330 provides 2 million pixal resolution.
Get more of the light you want and less of light you don’t. Our video laryngoscopes deliver a high-resolution image powered by the latest advancements in lighting and camera technology, for enhanced airway views
Get the confidence of HAIYE whenever and wherever you need it. Intubate routine and difficult airways with the handheld, portable video laryngoscopy system designed for rapid, first-pass success.
Main Feature of video laryngoscope:
1. 3.0 inch Colorful LCD screen.
2. Camera Resolution: 2 M pixel.
3. Disposable blade and Reusable Blade:Aseptic packaging,strength,comfortable and reliable.
4. Compatible with blade perfect.
5. Video synchronous transmission to big monitor by AV cable.
6. Easy to input the tracheal tube by good view of glottis.
7. More curved blade angle makes it can cope with most difficult airway management.
8. Anti-fog,no need preheating.
| Parts |
Description |
Technical Index |
| Machine |
Screen |
3 inch LCD |
| Resolution |
960*480 (RGB) |
| Viewing angle |
≥70º |
| Power |
<2W |
| Display front and back rotation Angle |
0 º~175 º |
| Weight |
225g |
| Camera |
Illuminance |
≥3000 LUX |
| Resolution |
1280*720 px |
| Image/Video function |
Image/ Video function |
Yes |
| Output |
USB output, Easy to storage and establish image/video |
| Memory type |
Micro SD card 32GB |
| Battery |
Battery Type |
Rechargable lithium battery |
| Capacity |
3400mAh |
| Cycle life of battery |
>600 times |
| Battery working time |
>400min |
| Charging time |
<2(hrs) |
| Charging Port |
Micro USB |
| Power Adapter |
Input |
100-250V, 50 Hz. |
| Output |
5V1A |
Advantage of video laryngoscopes
*Anti-fog
*Video/Photo function
*Battery rechargeable
*One button Only, Fast and simple operation
Application of video laryngoscope
1. Clinical endotracheal intubation.
2. Simulation practice
3. Clinical teaching
4. Difficult airway intubation.
We are manufacturer of video laryngoscope, the advantages are as below:
* Expert in video laryngoscope for 8 years;
* Focus on reusable video laryngoscope and disposable video laryngoscope;
* Obtained certificates: CE, ISO 13485 and ISO 9001 and FDA;
* We offer OEM service and print logo as your requirement;
* High standard Lab research and test.
