Product Details:
|
| Product Name: | Medical Grade Video Laryngoscope | Blades: | Disposable Of 3 Different Larynx Lens |
|---|---|---|---|
| Interface: | USB，TF(Hot Plug) | Carema System: | 2 Million Pixel Double Anti-fog |
| Powder Button: | On/Off And Freeze Frame | Display Resolution: | 960 X 480 |
| Warranty: | 1 Year | ||
| High Light: | Medical Grade Video Laryngoscope,USB Video Assisted Laryngoscope,Mouth Cavity Medical Video Laryngoscope |
||

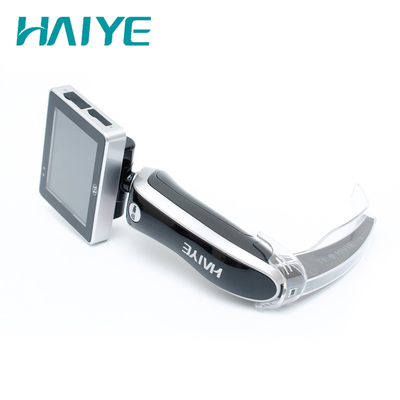

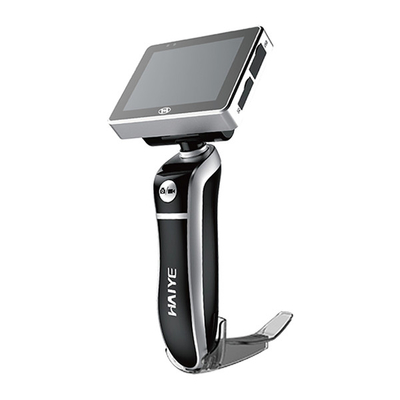

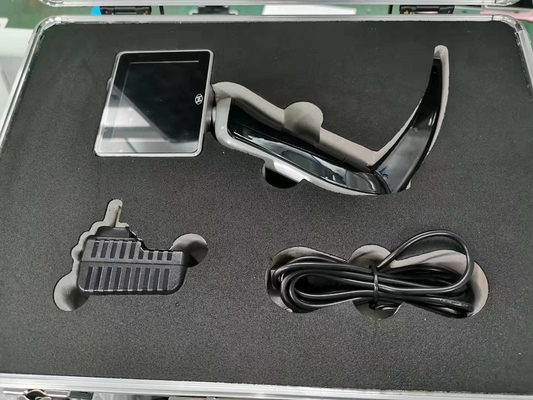

3P Medical Grade Larynx Lens Video Laryngoscope Suitable for Different Sizes of Mouth Cavity
HYHJ-1330 Video Laryngoscope with a 3-100mm depth of field field
HYHJ-1330 Video Laryngoscope has 70 ± 2 degrees field of view, 2 million pixels

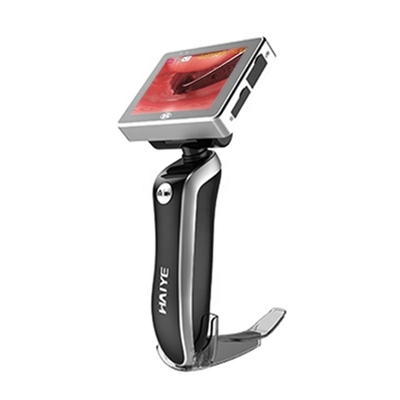

HYHJ-1330 Video Laryngoscope's 3.0 inches color high-definition display screen can clearly observe the laryngeal glottis structure, intubation can be carried out within the visual range
The operation of HYHJ-1330 Video Laryngoscope is more convenient, beginners can also quickly and skillfully operate
HYHJ-1330 Video Laryngoscope can be used as a clinical teaching tool for endotracheal intubation
The integrated design of HYHJ-1330 Video Laryngoscope is more in line with the needs of practical medical applications, eliminating the need for installation while reducing machine damage due to insertion and removal

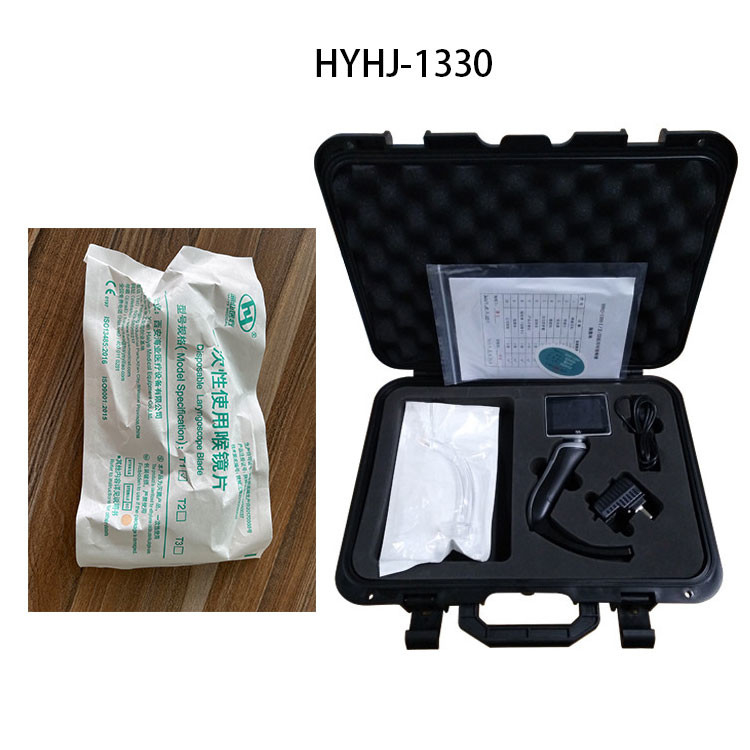

3 kinds of disposable vacuum packaging 3P medical materials of HYHJ-1330 Video Laryngoscope blades, suitable for various oral structures
HYHJ-1330 Video Laryngoscope's dual anti-fogging cameras make intubation smoother; Imported lithium battery can be repeatedly charged more than 800 times, 6 hours long standby
HYHJ-1330 Video Laryngoscopecan be widely used in a variety of clinical and medical assistance occasions
HYHJ-1330 Disposable laryngoscope tablets are packaged and sterilized to prevent cross infection. Mature and reliable fully functional electronic scheme and HD digital camera system, with 3 "TFT color display screen, good effect of restoration.
Technical Index of video portable laryngoscope
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope blades | 3 different types disposable video laryngoscopeblades,aseptic packaging for single use | |
| Adapter | Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continous use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
Welcome to inquiry if you have any interests!
OEM order is acceptable.
