Product Details:
|
| Product Name: | Reusable Visual Laryngoscopes | Resolution: | 960 X 480 |
|---|---|---|---|
| Pixel: | 2 Million | Viewing Angle: | 70 Degree |
| Depth Of Field: | 3~100mm | Material: | Medical Stainless Steel |
| Application: | Different Oral Structure Intubation | Blades: | Medical Lens 5 Reusable Blades |
| High Light: | 5 Blades Visual Laryngoscope,Oral Visual Laryngoscope,70 Degree Medical Video Laryngoscope |
||

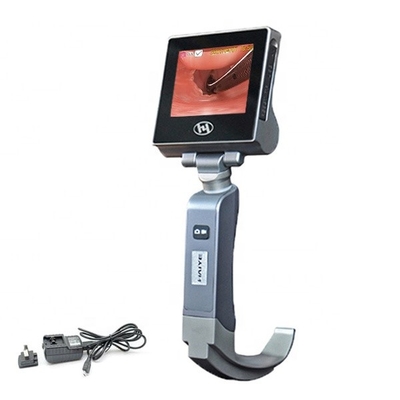

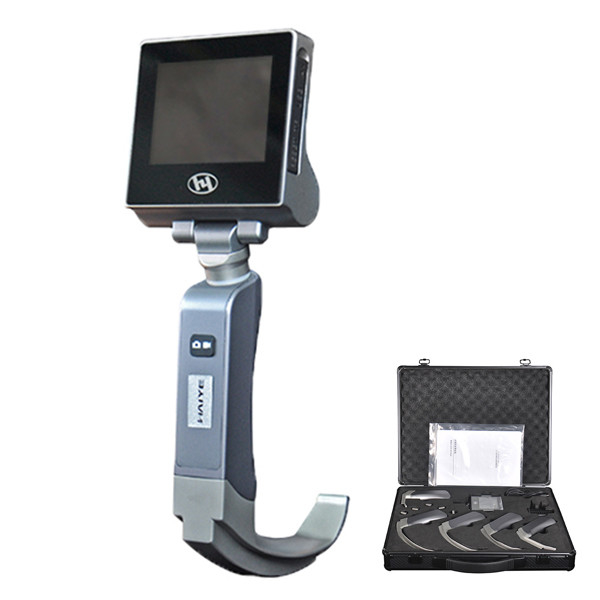

70 Degree 5 Blades Visual Laryngoscope For Different Oral Structure
The shell of the whole machine is made of medical-grade metal material, the high-grade, atmospheric, thick, solid handle is comfortable to hold;
Product configuration is rich, up to five specifications of the camera system can be replaced between different patients, to achieve a multi-purpose machine;
Digital camera system with high - resolution display, make intubation easier;
The laryngoscope is made of medical grade stainless steel, which can be used repeatedly after disinfection which reduce the cost;
Photo, video, freeze frame, storage, external play, large capacity battery, complete function
HYHJ-KC video laryngoscope Technical Parameter
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |

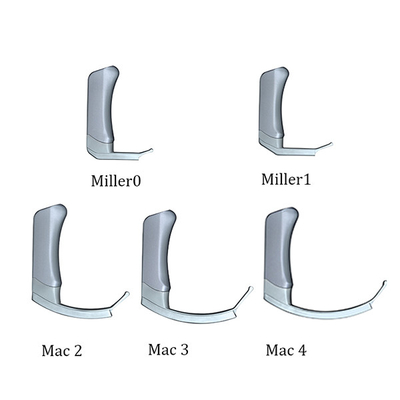

| Blades | 5 reasuable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
HYHJ-KC video laryngoscope Description:
optimized and improved the structure design, imaging quality and convenience of use which perfectly combines the appearance and use together.The product HYHJ-KC video laryngoscope is design fully takes into account the particularity of clinical use, It adopts a large number of medical grade metal materials and advanced processing technology;
HYHJ-KC video laryngoscope features:
HYHJ-KC video laryngoscope with photography, freeze frame, video recording, HD output, data storage, large capacity export and other functions. The large-capacity battery lasts longer, and the display can rotate from front to back, left to right. simple and graceful, clear imaging, simple operation, complete specifications.

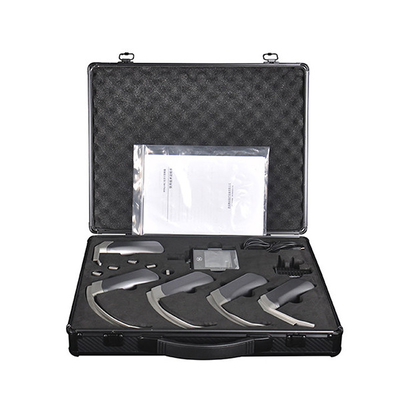

HYHJ-KC video laryngoscope configuration:

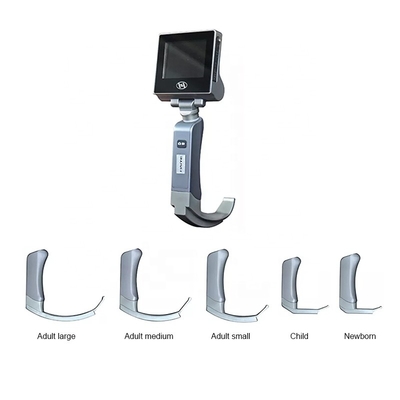

In order to enhance the convenience of use, the display screen can be connected with any size of the handle, the product can be reused and one-time use (5 specifications: adult large, adult medium, child, newborn, premature).
Welcome to inquiry if you have any interests!
OEM order is acceptable.
