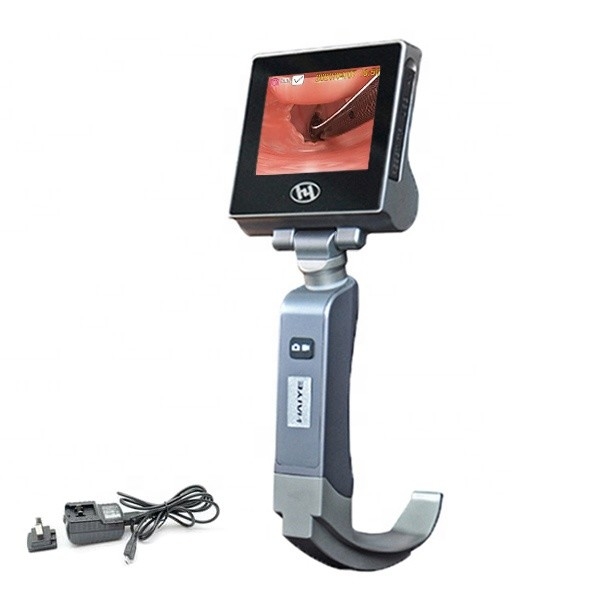

Reusable Blade 5 Size Optical Video Guided Laryngoscope USB Output

Reusable Blade 5 Size Optical Video Guided Laryngoscope USB Output
Reusable Blade 5 Size Optical Video Guided Laryngoscope USB Output Reusable Blade 5 Size Optical Video Guided Laryngoscope USB Output Reusable Blade 5 Size Optical Video Guided Laryngoscope USB Output Reusable Blade 5 Size Optical Video Guided Laryngoscope USB Output Reusable Blade 5 Size Optical Video Guided Laryngoscope USB Output Reusable Blade 5 Size Optical Video Guided Laryngoscope USB Output

Large Image :  Reusable Blade 5 Size Optical Video Guided Laryngoscope USB Output

Product Details:
Place of Origin: China
Brand Name: HAIYE
Certification: CE ,ISO13485 ,FDA
Model Number: HYHJ-KC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 1000~1500USD/set
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 1000sets

Reusable Blade 5 Size Optical Video Guided Laryngoscope USB Output

Description
Product Name: Video Laryngoscope Display: 3.0 Inch
Resolution: 960*480 Image /Video: Yes
Field Angle: 70+2 Depth Of Field: 3-100mm
Batetry Capacity: 3400mA Cycle Life Of Battery: > 800 Times
Battery Working Time:: >400 Hrs Battery: Recargeable Lithium Battery
Storage SD Card: 32 GB Material: Stainless Steel
Blade: Reusable Blade 5 Size OEM Service: Yes, Qty>50unit
High Light:

5 Size Optical Video Guided Laryngoscope

,

Reusable Blade Video Guided Laryngoscope

,

USB Output Anesthesia Video Laryngoscope

Hot sales ! 32GB Best Quality Surgical Medical Equipment Reusable Video Laryngoscope




Features:

*Anti fog coating on distal lens
*Video/Photo function
*Battery rechargeable

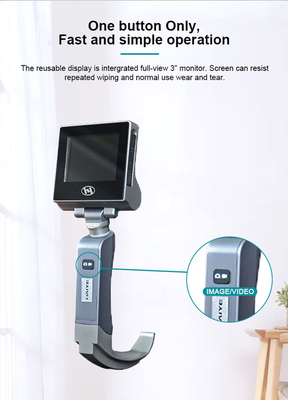

*One button Only, Fast and simple operation
*360 °All sight LCD, no blind spot



Surgical medical equipment Reusable 5 size blades Video Laryngoscope



*Application rang
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.



NEW Medical Device Anti-fog Emergancy Department Use Video Laryngoscope



Light weight, main unit is less than 350g.



Excellent body design, easy to install or remove.



Ready to use in no time

 Reusable Blade 5 Size Optical Video Guided Laryngoscope USB Output 0

Benefits of HAIYE Video Laryngoscope

The main advantage of using video laryngoscopy for every intubation is increased patient comfort. Since far less force is used in intubation, much less or almost no flexing in needed. This in turn means the adverse effects such as tooth damage, bleeding, neck problems, etc are considerably lower. Even simple inconveniences such as a soar throat or hoarseness will be less prevalent due to a less traumatic intubation procure.

  • Reduces risk of failed first attempts at intubation
  • Reduces risk of oesophageal intubation
  • Reduces risk of damage to the vocal cords
  • Reduces risk of damaging the teeth
  • Reduces risk of damage or bleeding of the mucous membrane
  • Reduces risk of conversion to advanced intubation methods
  • Reduces risks of cervical spine due to hyper extension
  • Better visibility on placement of the endotracheal tube
  • Easier determination of the right depth of the tube
  • Shortens the time required for and reduces risks involved with complex intubation
  • Documentation of the intubation is possible
  • User-friendly. Only two buttons to operate
  • Assists with the enhancement of training methods of the intubation procedure
  • Suitable for traditional direct laryngoscopy
  • Very economical in use

Reusable Blade 5 Size Optical Video Guided Laryngoscope USB Output 1

Specifications for the Video Laryngoscope

Name Technical term Technical Index













Machine

Display Resolution 960 x 480
Pixels 2 million
Camera Resolution 1600 x 1200
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area

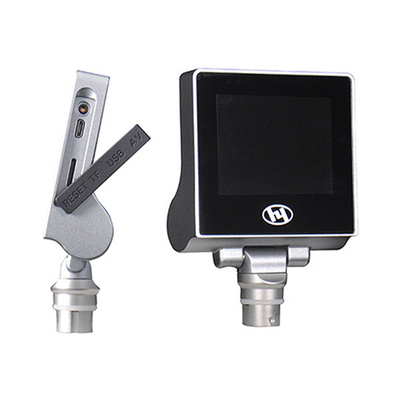

Interface USB,TF(Hot plug)
Rotate angle front to back: 135 º, left to right: 275 º

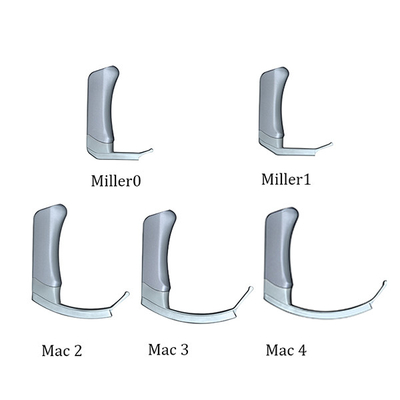

Blades 5 reasuable blades suit for different oral structure



Powder Adapter

Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output



Battery

Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins



Working Condition

Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%



Reusable Blade 5 Size Optical Video Guided Laryngoscope USB Output 2
