Product Details:
|
| Product Name: | Video Laryngoscope Bronchoscopes | Display: | 3 "TFT Color Screen |
|---|---|---|---|
| Resolution: | 960*480 | Pixel: | 2 Million |
| Viewing Angle: | 70°± 2° | Depth Of Fields: | 3~100mm |
| Rotate Angle: | Front To Back: 0~135°, Left To Right: 0~275° | Powder Input: | 100 - 240V50/60Hz,0.35A |
| Power Output: | 5V,2000mA, USB Output | Cycle Life Of Battery: | > 800 Times |
| Warranty: | 1 Year | OEM Service: | Yes, Qty > 50 Units |
| High Light: | Portable Video Bronchoscopes,Portable Video Laryngoscope Camera,Portable Video Laryngoscope 1600 X 1200 |
||

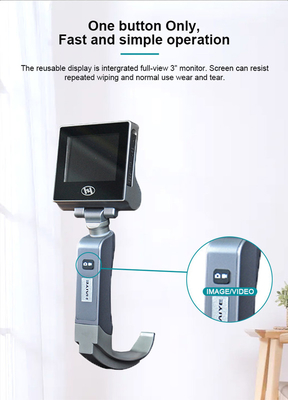

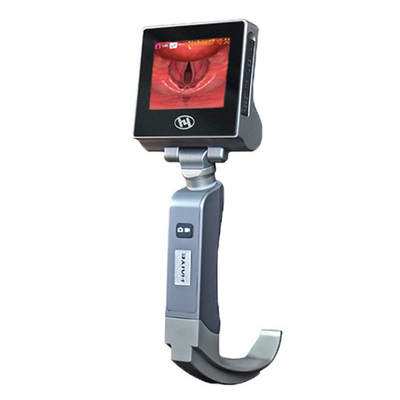

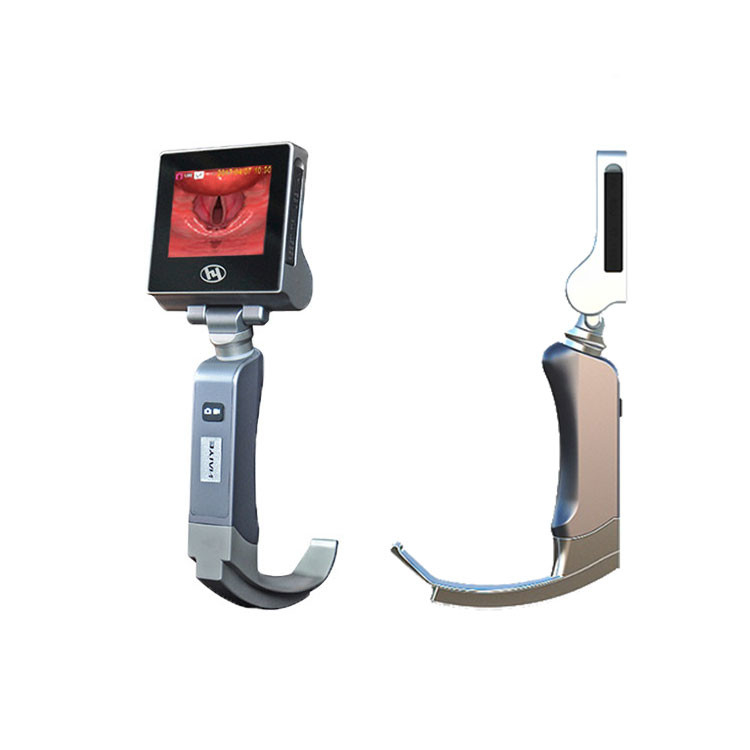

Bronchoscopes Portable Video Laryngoscope Camera Resolution 1600 X 1200
The shell of the whole video laryngoscope machine is made of medical-grade metal material, the high-grade, atmospheric, thick, solid handle is comfortable to hold;

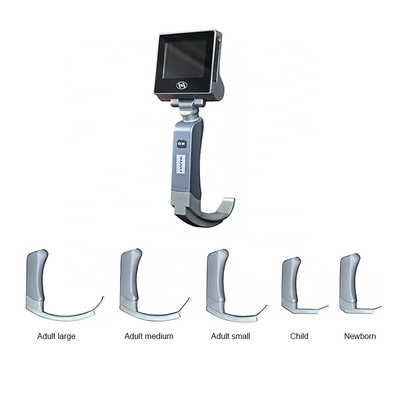

video laryngoscope Product configuration is rich, up to five specifications of the camera system can be replaced between different patients, to achieve a multi-purpose machine;
Digital camera system with high - resolution display, make intubation easier;
The video laryngoscope is made of medical grade stainless steel, which can be used repeatedly after disinfection which reduce the cost;
Photo, video, freeze frame, storage, external play, large capacity battery, complete function
Technical Parameter
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | Suit for different oral structure, aseptic packaging for single use | |
|
Power Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Advantages towards video laryngoscope
Video laryngoscope is suitable for intubation simulation practice, clinical teaching, intubation treatment for patients with airway injury and routine difficult airway intubation in anesthesiology department, emergency department, field, ambulance and other medical departments at all levels.
3.0-inch LCD screen Video laryngoscope, can be turned back and forth large Angle, disposable video laryngoscope blade guide groove design, make intubation simple and effective; Imported special medical materials, smooth surface no reflection, the fuselage free fall is not easy to damage, medical waterproof aviation professional connection design, to ensure high-quality image transmission; High quality protective case, handle video laryngoscope integrated design, lightweight and dexterous.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
