Anti Fog Sterilized Medical Video Laryngoscope For Video Intubation

Certification
China Xian Haiye Medical Equipment Co.,Ltd certification
China Xian Haiye Medical Equipment Co.,Ltd certification
I'm Online Chat Now

Anti Fog Sterilized Medical Video Laryngoscope For Video Intubation

Anti Fog Sterilized Medical Video Laryngoscope For Video Intubation
Anti Fog Sterilized Medical Video Laryngoscope For Video Intubation Anti Fog Sterilized Medical Video Laryngoscope For Video Intubation Anti Fog Sterilized Medical Video Laryngoscope For Video Intubation Anti Fog Sterilized Medical Video Laryngoscope For Video Intubation

Large Image :  Anti Fog Sterilized Medical Video Laryngoscope For Video Intubation

Product Details:
Place of Origin: CHINA
Brand Name: Haiye
Certification: CE, FDA, ISO 13485, ISO9001
Model Number: HYHJ-1330I,II,III
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Anti-drop plastic suitcase
Delivery Time: 3-7 days
Payment Terms: T/T
Supply Ability: 500 units per month

Anti Fog Sterilized Medical Video Laryngoscope For Video Intubation

Description
Discription: Video Guided Laryngoscope Blade: Disposable
Product Weight: <307 G Led Light: ≥3000 Lux
Viewing Angle: ≥70º Depth Of Field: 3~100mm
Camera Anti-fog: Yes Image/ Video Function: Yes
High Light:

Video Intubation Portable Medical Device

,

Sterilized Medical Video Laryngoscope

,

Anti Fog Video Guided Laryngoscope

Brand-New Sterilized Medical Video Guided Laryngoscope For Video Intubation



Airway management has always been a priority for physicians of all eras. Every physician must-have skills for appropriate airway management. Difficult laryngoscopy has been reported to occur in 6-10% of intubations. Consequently, every intervention which could improve successful intubation may be warranted in these situations. There has been much research on the development of new devices, which were designed for difficult airway management. Video-guided laryngoscope (VGL) is a device for airway management that is designed to allow a good exposure of the glottis without aligning oral, pharyngeal, and tracheal axes. It increases the first-attempt success rate for endotracheal intubation. Several studies have demonstrated its glottic exposure to be equal to or better than direct laryngoscopy most of which agree that future trials are required to show the exact efficacy of VGL in difficult airway management.



Anti Fog Sterilized Medical Video Laryngoscope For Video Intubation 0



Video Guided Laryngoscope main features:

1. Clear view: Large depth of field, no blind area for intubation.

2. High resolution: 2 million pixels camera and 3" TFT clear color screen.

3. Intelligent: Built-in memory card is capable of data storage and output.

4. Faster: Unique anti-fog function, convenient and ready to use, no need for preheating.

5. Durable: High precision manufacturing process, ergonomic handle with S/S, long service life.

6. Convenient: Single-use laryngoscope takes pictures, records video, and frames freezing function.

7. Optimization: Large capacity imported rechargeable Li battery provides up to 6 hrs continuous usage.

8. Safety: Disposable sterilized blade packaging to prevent cross-infection for medical care personnel and patients.

9. Versatile: Integrated design applies for anesthesiology, ICU,pediatrics,emergency department and ambulance for clinical tracheal intubation.



Do you have clients who want an endotracheal intubation solution with
enhanced laryngoscope view?

Are you looking for a Disposable video-guided laryngoscope?

Are you looking for a laryngoscope with a disposable blade that could be applied in multiple hospital departments or medical centers?

How about a person who help you to solve all the problems
and leave you to sit back and relax?


I am Larry from Haiye medical: a video-guided laryngoscope reliable manufacturer.

You could write to me by Larry@haiyemedical.com
or WhatsApp: +86 132 8980 5658

WHY US?
Certificates such as
CE, FDA, ISO 13485, ISO9001
are proofs of our quality.
All of the Video guided Laryngoscope are
fully inspected before shipment.


Video-guided Laryngoscope  Specification:

Item No. HYHJ-1330 I, II, III
Category Disposable
Discription Video guided Laryngoscope
Item size:(L*W*H) 11.9*8.5*19cm
Item weight <307 g
Power <2W
Screen size 3 inch LCD
Screen resolution 960*480 pixels
Tilt angle(back/forth) 0 º~135 º
Rotation angle(left/right) 0 º~275 º
Led light Illuminance ≥3000 Lux
Camera pixels 2 Million
Viewing angle ≥70º
Depth of field 3~100mm
Camera Anti-fog Yes
Image/ Video function Yes
Freeze frame function Yes
Output USB & AV output
Memory type 8GB Micro SD card
Battery type Rechargable Li-ion
Battery capacity 3400 mAh
Continuous working time ≥6 hrs
Charging cycles >800 times
Charging time <4 hrs

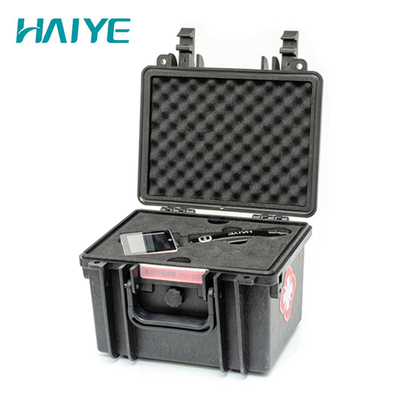

Video guided Laryngoscope Packaging: Anti-drop Protective case



Standard equipment contains:
1x Integrated machine
1x Disposable laryngoscope blades
1x Charger
1x Operation manual



FAQ:

Q: Are you trading company or manufacturer ?
A: We are manufacture, specialized in reusable and disposable video assisted laryngoscopes.
Q: How long is your delivery time?
A: Usually it takes about 3-7 working days, it depends on the quantity.
Q: Could you design for us?
A: Sure, we accept various OEM and ODM orders.
Q: How do I pay?
A: You can pay us by T/T, Alibaba secure payment etc.
Q: What if we find a defective product?
A: In this case, please contact us as soon as possible and we will take quick measures to resolve it.

Anti Fog Sterilized Medical Video Laryngoscope For Video Intubation 1
