Product Details:
|
| Product Name: | Video Bronchoscopes Laryngoscope | Display: | 3 "TFT Color Screen |
|---|---|---|---|
| Resolution: | 960*480 | Pixel: | 2 Million |
| Viewing Angle: | 70°± 2° | Depth Of Fields: | 3~100mm |
| Roatate Angle: | Front To Back: 135 º, Left To Right: 275 º | Blades: | 5 Reasuable Blades Suit For Different Oral Structure |
| Powder Input: | 100 - 240V50/60Hz,0.35A | Powder Output: | 5V,2000mA, USB Output |
| Battery Working Time: | Continous Use ≥ 350 Mins | Warranty: | 1 Year |
| OEM Service: | Yes, Qty > 50 Units | ||
| High Light: | Medical Grade Video Bronchoscopes,Steel Video Assisted Laryngoscope,2 Million Pixels Video Bronchoscopes |
||

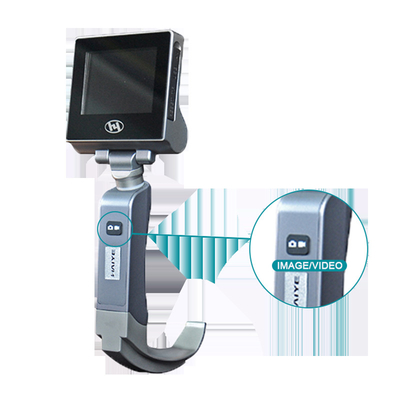

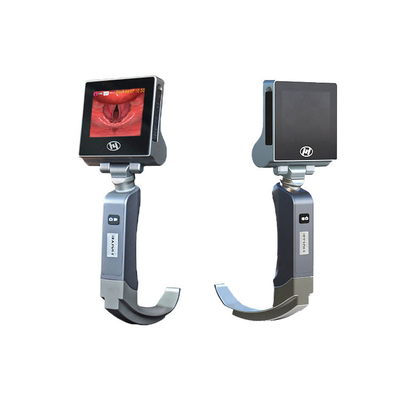

2 million Pixels Medical Grade Steel Video Laryngoscope Bronchoscope
The shell of the whole machine is made of medical-grade metal material, the high-grade, atmospheric, thick, solid handle is comfortable to hold;
Product configuration is rich, up to five specifications of the camera system can be replaced between different patients, to achieve a multi-purpose machine;
Digital camera system with high - resolution display, make intubation easier;
The laryngoscope is made of medical grade stainless steel, which can be used repeatedly after disinfection which reduce the cost;
Photo, video, freeze frame, storage, external play, large capacity battery, complete function
Description of Products:
The product HYHJ-KC’s design fully takes into account the particularity of clinical use, It adopts a large number of medical grade metal materials and advanced processing technology; optimized and improved the structure design, imaging quality and convenience of use which perfectly combines the appearance and use together.
Product features:
simple and graceful, clear imaging, simple operation, complete specifications. Products with photography, freeze frame, video recording, HD output, data storage, large capacity export and other functions. The large-capacity battery lasts longer, and the display can rotate from front to back, left to right.

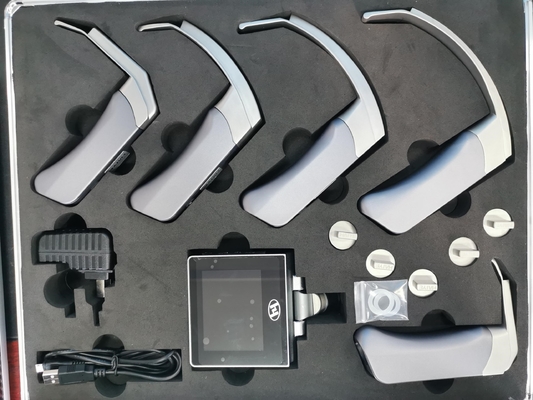

Product configuration:
In order to enhance the convenience of use, the display screen can be connected with any size of the handle, the product can be reused and one-time use (5 specifications: adult large, adult medium, child, newborn, premature).
Technical feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |

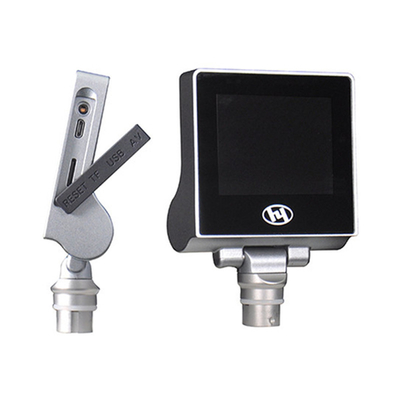

| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | 5 reasuable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |

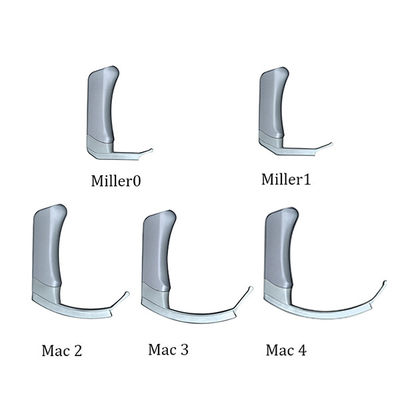

(5 KC Resuable Blades)
Why Choose Vedio Laryngoscope?
1. Any doctors familar with tradional laryngoscope can smoothly use it;

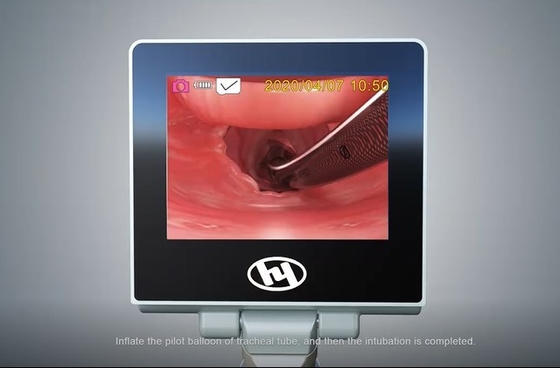

2. Showing the internal oral structure very clearly, easily capture the photo and vedio;
3. Keep distance between doctor and patient, greatly reduce the cross-infection possiblity;
4. Significantly improved glottic exposure grade, nearly 99% of the patients can reach grade I-II, and the grade of glottic exposure can be reduced by at least I grade;
5. Shorter the endotracheal intubation time , increase the success rate and also lower the esophageal intubation rate;
6. The forward view do not need three-axis line, the range of head and neck operation is small, Which is suitable for cervical spine injury cases;
7. Lighter operating force,less inquiry,and smoother hemodynamics.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
