Product Details:
|
| Material: | Reusable Video Laryngoscope | Display: | 3.0 High Definition Screen |
|---|---|---|---|
| Carema: | CMOS, Double Anti Fog | Resolution: | 960*480 |
| Viewing Angle: | 70°± 2° | Depth Of Fields: | 3~100mm |
| Battery: | Lithium Ion Battery，3.7V | Host Key: | Freeze Frame, Take Photo And Vedio |
| Pixels: | 2 Million | OEM Service: | Yes |
| Advanteges: | Better Glottic View | Application: | Difficult Airway Intubation |
| High Light: | High Definition Reusable Video Laryngoscope,Glottic View Reusable Video Laryngoscope,Reusable Anesthesia Intubation Video Laryngoscope |
||

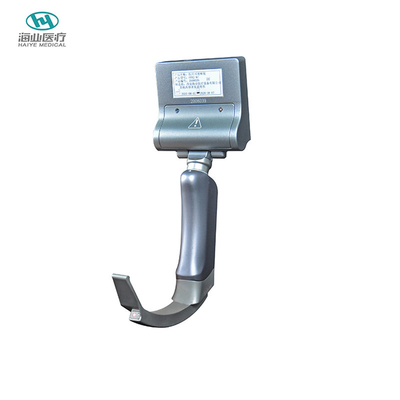

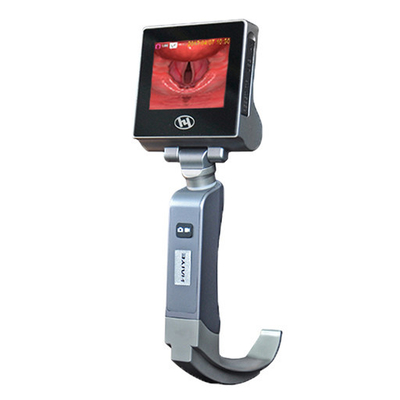

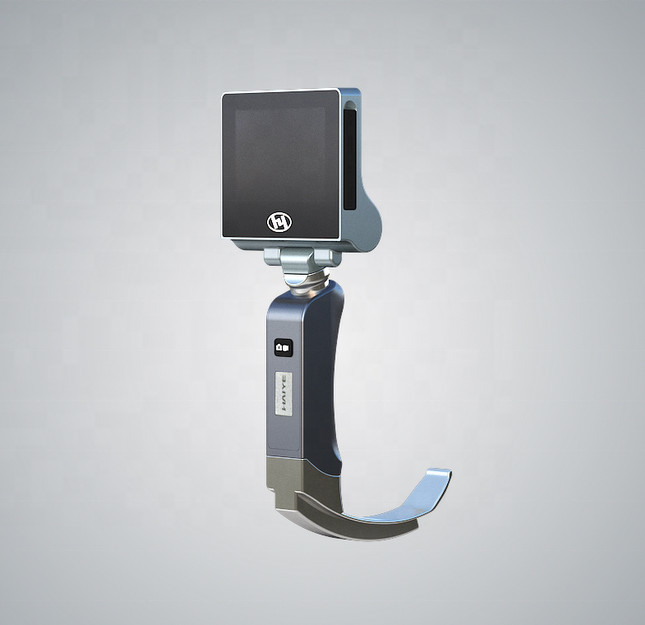

Airway Intubation Reusable Video Laryngoscope 3.0 High Definition With Glottic View
Application
It is often used to provoke the patient's epiglottis to expose the glottis, allowing the user to perform tracheal intubation under visual observation. Further optimization and improvement of the appearance and shape of the video laryngoscope will make the video laryngoscope more consistent with the structural characteristics of the upper respiratory tract (especially the difficult airway).
It is suitable for clinical tracheal intubation, simulation exercise, clinical teaching and difficult airway intubation in anesthesiology department, emergency department, ICU/ pediatric department, ambulance and other medical departments at all levels
Why Choose Video Laryngoscope?
Moderate quality evidence showed that video laryngoscopy reduced failed intubations including in participants with anticipated difficult airways. Video laryngoscopes reduced laryngeal/airway trauma and hoarseness. Videolaryngoscopy increased easy laryngeal views and reduced difficult views and intubation difficulty, typically using an ‘intubation difficulty score’.
Video laryngoscopes can reduce the number of failed intubations, particularly among patients presenting with a difficult airway. They improve the glottic view and may reduce laryngeal/airway trauma.
Technical feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | 5 resuable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |

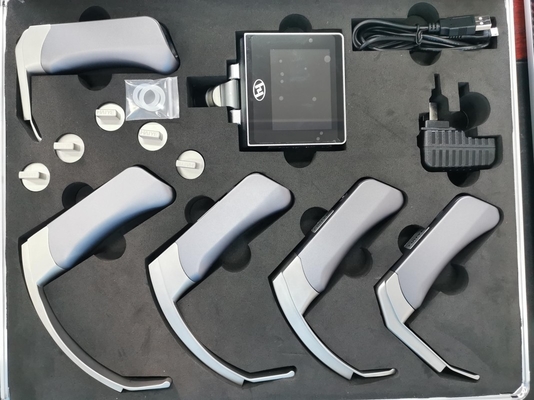

5 Stainless types of blades can suit for different oral structure:
Large Adult Midium Adult Small Adult & Large Child Medium Child Small Child & Infant
Welcome to inquiry if you have any interests!
OEM order is acceptable.
