Product Details:
|
| Item No.: | HYHJ-KC | Catagory: | Reusable |
|---|---|---|---|
| Description: | Rigid Video Laryngoscope | Item Weight: | <472 G |
| Battery: | Rechargeable Li | Screen: | 3'' LCD |
| Led Illuminance: | 3000 Lux | Camera Pixels: | 2 Mega Pixels |
| High Light: | Medical Video Guided Laryngoscope,Airway Management Video Guided Laryngoscope,3'' LCD Rechargeable Medical Surgical Endoscope |
||

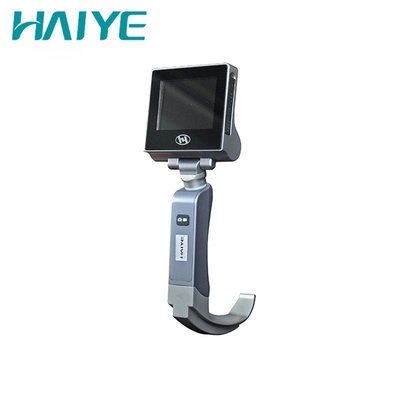

Remarkable Durable Medical Sugical Endoscope Video Guided Laryngoscope For Difficult Airway Management
What is a video guided laryngoscope?
A video guided laryngoscope is a tool that is placed into the mouth of a patient who is sedated or unconscious and, consequently, requires assistance with keeping their airways open. The ‘blade’ is the portion of the laryngoscope that is placed into the patient’s mouth to view the oropharynx or the laryngeal opening of the trachea. The tool uses indirect viewing of the larynx through a camera at the tip of the blade to enable the clinician to place a breathing or endotracheal tube for manual or assisted breathing of the patient.
Video guided Laryngoscope HYHJ-KC Applications:
1. Clinical endotracheal intubation.
2. Clinical teaching
3. Difficult airway intubation.
4. Anesthesiology, Emergency Diagnosis
5. ICU, Pediatrics, and Ambulance
Video guided Laryngoscope's main features:
1. Clear view: Large depth of field, no blind area for intubation.
2. High resolution: 2 million pixels camera and 3" TFT clear color screen.
3. Intelligent: Built-in memory card is capable of data storage and output.
4. Faster: Unique anti-fog function, convenient and faster to use for tracheal intubation.
5. Durable: High precision process, ergonomic metal display screen frame and handle, long service life.
6. Convenient: Portable laryngoscope with taking pictures, video recording, and frame freezing function.
7. Optimization: Large capacity imported rechargeable Li battery provides up to 6 hrs continuous usage.
8. Reusable: A camera system in medical grade 304 S/S integrated with the handle could be sterilized and reusable.

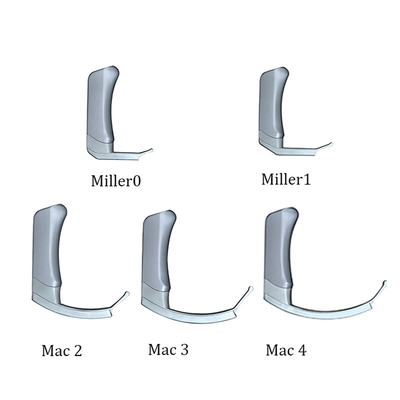

9. Versatile: Provides up to 5 different camera options. Apply for extreme airways, adult large, adult medium, pediatric and neonate patients.
| Item No. | HYHJ-KC |
| Category | Reusable |
| Discription | Video guided Laryngoscope |
| Item size:(L*W*H) | 15.3*8.5*23cm |
| Item weight | <472 g |
| Power | <2W |
| Screen size | 3 inch LCD |
| Screen resolution | 960*480 pixels |
| Tilt angle(back/forth) | 0 º~135 º |
| Rotation angle(left/right) | 0 º~275 º |
| Led light Illuminance | ≥3000 Lux |
| Camera pixels | 2 Million |
| Viewing angle | ≥70º |
| Depth of field | 3~100mm |
| Camera Anti-fog | Yes |
| Image/ Video function | Yes |
| Freeze frame function | Yes |
| Output | USB & AV output |
| Memory type | 8GB Micro SD card |
| Battery type | Rechargable Li-ion |
| Battery capacity | 3400 mAh |
| Continuous working time | ≥6 hrs |
| Charging cycles | >800 times |
| Charging time | <4 hrs |

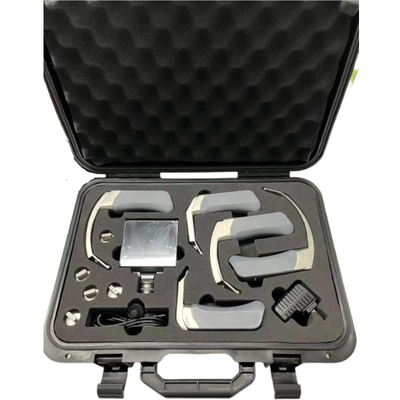

Video guided Laryngoscope Packing: High-strength protection box
Package Details: 1 Anti-drop suitcase in a standard export Carton for a video guided laryngoscope
Carton size: 415*110*345 cm
Gross weight: 3.2 kg
Standard equipment contains:
1x LCD color screen
5x Camera systems integrated with S/S reusable blades
5x Disinfection cap
1x Charger
1x Operation manual
1x Warranty card
