Product Details:
|
| Description: | Video Assisted Laryngoscope | Model No.: | HYHJ-1330 I, II, III |
|---|---|---|---|
| Screen Size: | 3 Inch Color LCD | Screen Resolution: | 960*480 |
| LED: | ≥3000 Lux | Viewing Angle: | ≥70º |
| Anti-fog: | Yes | Working Time: | 6 Hrs |
| High Light: | Airway Management Medical Video Laryngoscope,Video Assisted Intubation Laryngoscope,3 Inch LCD Anesthesia Video Laryngoscope |
||

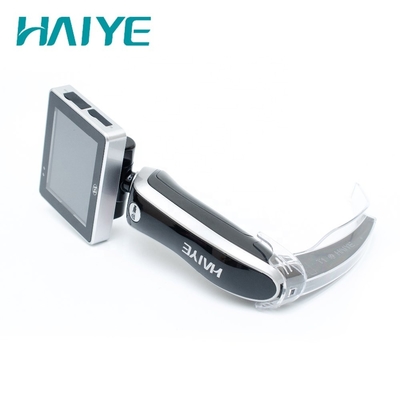

Hot-Sale Reliable Video Assisted Laryngoscope For Difficult Airway Management
What is a video assisted laryngoscope?
A video assisted laryngoscope is a tool that is placed into the mouth of a patient who is sedated or unconscious and, consequently, requires assistance with keeping their airways open. The ‘blade’ is the portion of the laryngoscope that is placed into the patient’s mouth to view the oropharynx or the laryngeal opening of the trachea. The tool uses indirect viewing of the larynx through a camera at the tip of the blade to enable the clinician to place a breathing or endotracheal tube for manual or assisted breathing of the patient.
The Video assisted laryngoscope HYHJ-1330 main features:
1. Clear view: Large depth of field, no blind area for intubation.
2. High resolution: 2 million pixels camera and 3" TFT clear color screen.
3. Intelligent: Built-in memory card is capable of data storage and output.
4. Faster: Unique anti-fog function, convenient and ready to use, no need for preheating.
5. Durable: High precision manufacturing process, ergonomic design handle with long service life.
6. Convenient: Portable laryngoscope with taking pictures, video recording, and frame freezing function.
7. Optimization: Large capacity imported rechargeable Li battery provides up to 6 hrs continuous usage.

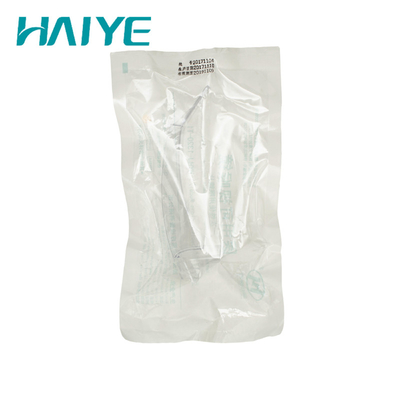

8. Safety: Disposable sterilized blade packaging to prevent cross-infection for medical care personnel and patients.
9. Versatile: Integrated design applies for anesthesiology, ICU, pediatrics, emergency department, and ambulance for clinical tracheal intubation.

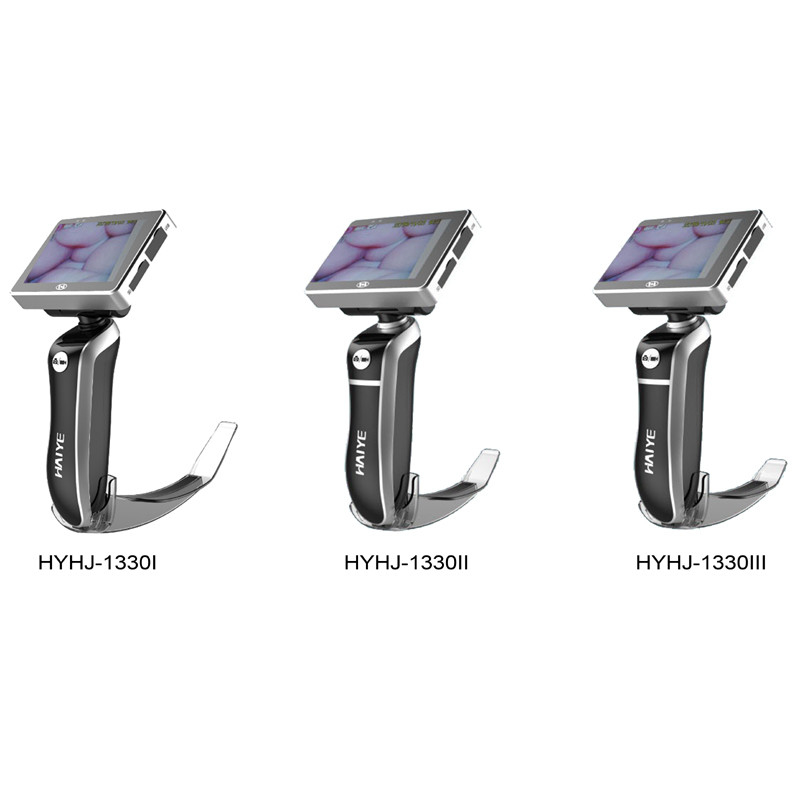

| Item No. | HYHJ-1330 I, II, III |
| Category | Disposable |
| Description | Video assisted Laryngoscope |
| Item size:(L*W*H) | 11.9*8.5*19cm |
| Item weight | <307 g |
| Power | <2W |
| Screen size | 3 inch LCD |
| Screen resolution | 960*480 pixels |
| Tilt angle(back/forth) | 0 º~135 º |
| Rotation angle(left/right) | 0 º~275 º |
| Led light Illuminance | ≥3000 Lux |
| Camera pixels | 2 Million |
| Viewing angle | ≥70º |
| Depth of field | 3~100mm |
| Camera Anti-fog | Yes |
| Image/ Video function | Yes |
| Freeze frame function | Yes |
| Output | USB & AV output |
| Memory type | 8GB Micro SD card |
| Battery type | Rechargable Li-ion |
| Battery capacity | 3400 mAh |
| Continuous working time | ≥6 hrs |
| Charging cycles | >800 times |
| Charging time | <4 hrs |

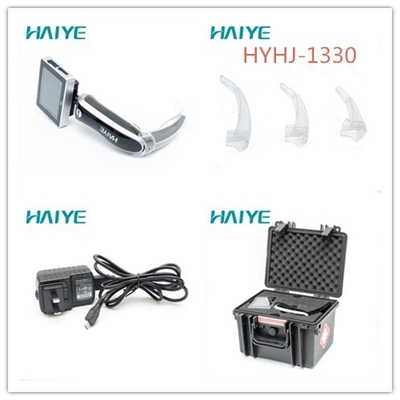

Video assisted laryngoscope Packaging: Anti-drop Protective case
