Product Details:
|
| Display: | 3 "TFT Color Screen | Resolution: | 960*480 |
|---|---|---|---|
| Pixel: | 2 Million | Depth Of Field: | 3～100mm |
| Field Angle: | 70±2º | Charing Time: | ≤4h |
| Stand-by Time: | ≥6h | Battery Life: | Recharge＞800times |
| WorkingTemperature: | 5℃～40℃ | Charger Input: | 100～240V，50/60Hz,0.35A |
| Charger Output: | 5V,2000mA | Illuminance: | ≥3000lux |
| Blades: | Disposable, T1, T2,T3 | Warranty: | 1 Year |
| OEM MOQ: | 50SETS | ||
| High Light: | 3.0 Display Portable Endoscope,USB Output Portable Video Laryngoscope,FDA Certified Portable Endoscope |
||

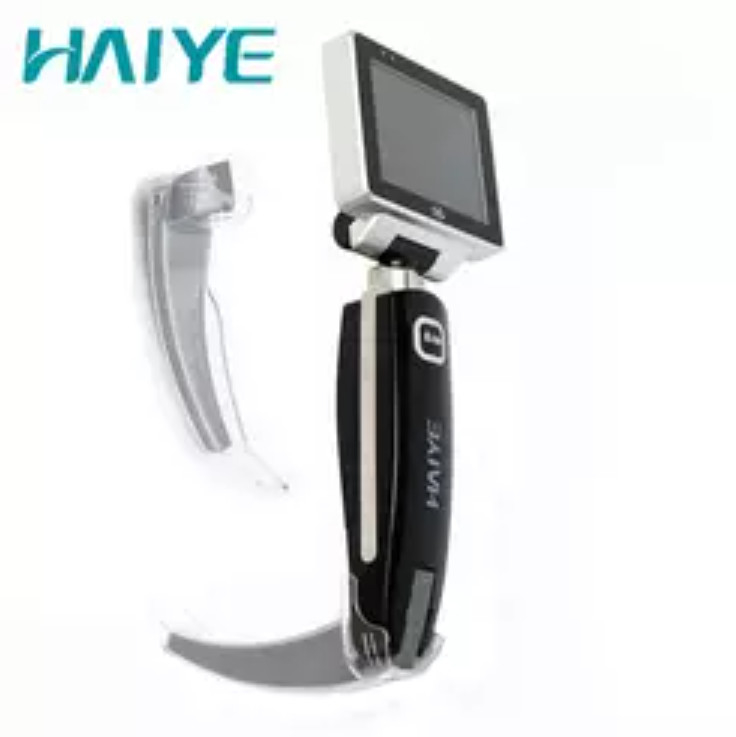

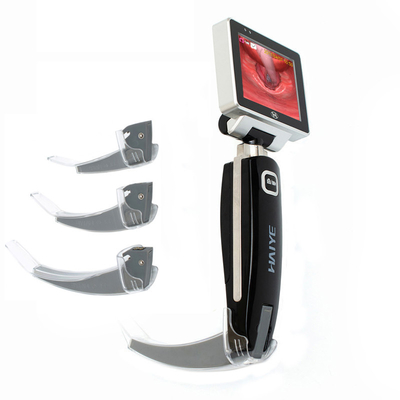

HYHJ-1320 medical visual laryngoscope is a forward-looking product of our company. This machine has the advantages of novel design, beautiful appearance, small size, portability, complete function and simple use. This machine is a medical visual laryngoscope which integrates functions, portability, practicability, durability and high configuration,It is a tailor-made for the people's conscience! It is an ideal teaching tool for hospital first aid, clinical application and trachea intubation lead-in teaching.
One key boot without pre heating
Power key contains scale freezing function
Standard 3 inch screen clarity high practiability
The frame is made of medical 304 stainless steel with high strength and high hardness
Camera button contaions the vedio function
Camera system with medical 304 stainless steel
Double anti fog, no blind area

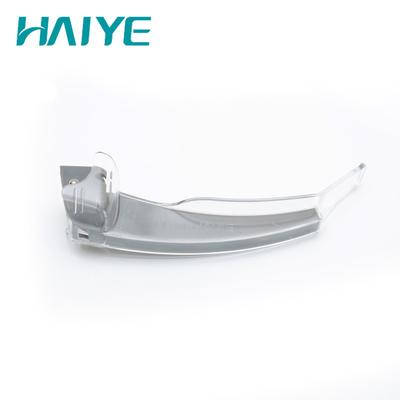

Transparent laryngoscope blade
Different specifications meet various oral structure, asepsis packing a one –time use

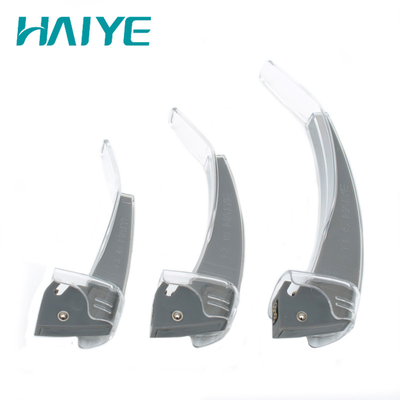

Blades Types
HYHJ-1320 has 3 different sizes of carema for clients to choose, which can suit for various oral structures; the large carema is for adult, medium for children while the small for the newborns. Each camera system has its own disposable laryngoscope blade to match with:
1. Large carema: HYHJ-1320-T1
2. Medium carema: HYHJ-1320-T2
3. Small carema: HYHJ-1320-T3
Parameters of laryngoscope
Large: ≤ 35mm, medium: ≤ 32mm; small: ≤ 28mm
Large: 119mm, medium: 95mm; small: 78mm
Large/ Medium/ Small: ≤ 10mm
Large: 41, medium: 35; small: 19
Technical Feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| Blades | 3 Disposable blades, aseptic packaging for single use | |
|
Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are widely used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: U.S., Middle East, Australia, Korea, Russia, Pakistan...
Welcome to inquiry if you have any interests!
OEM order is acceptable.
