Product Details:
|
| Description: | Video Guided Laryngoscope | Model No.: | HYHJ-1330 Series |
|---|---|---|---|
| Screen: | 3 Inch Color Screen | Screen Tilt Angle: | 0 º~135 º |
| Screen Rotation Angle: | 0 º~275 º | Illuminance: | 3000 Lux |
| Battery: | Rechargeable Li | Working: | 6 Hours |

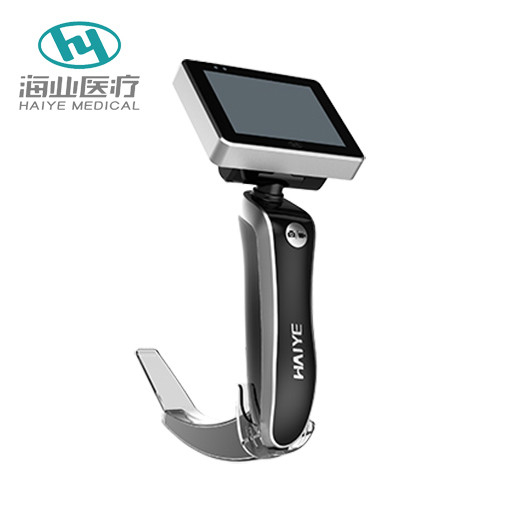

Preferable Safe Affordable Video Guided Laryngoscope for Difficult Airway Intubation
What is video guided laryngoscope for?
This device is implemented in most german hospitals and used when conventional direct laryngoscopy is not sufficient. By positioning the camera at the tip of the blade, the achievable field of view onto the glottic plane is improved.
Video guided Laryngoscope main features:
1. Clear view: Large depth of field, no blind area for intubation.
2. High resolution: 2 million pixels camera and 3" TFT clear color screen.
3. Intelligent: Built-in memory card is capable of data storage and output.
4. Faster: Unique anti-fog function, convenient and ready to use, no need for preheating.
5. Durable: High precision manufacturing process, ergonomic design handle with long service life.
6. Convenient: Portable laryngoscope with taking pictures, video recording, and frame freezing function.
7. Optimization: Large capacity imported rechargeable Li battery provides up to 6 hrs continuous usage.
8. Safety: Disposable sterilized blade packaging to prevent cross-infection for medical care personnel and patients.
9. Versatile: Integrated design applies for anesthesiology, ICU, pediatrics, emergency department, and ambulance for clinical tracheal intubation.

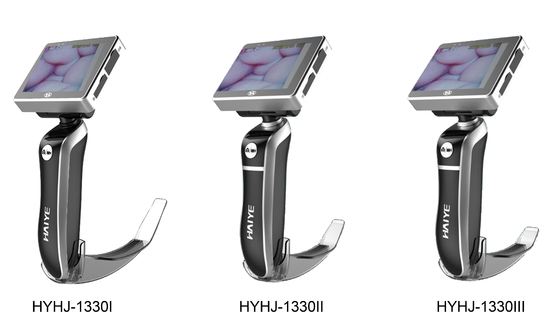

| Item No. | HYHJ-1330 I, II, III |
| Category | Disposable |
| Discription | Video Laryngoscope |
| Item size:(L*W*H) | 11.9*8.5*19cm |
| Item weight | <307 g |
| Power | <2W |
| Screen size | 3 inch LCD |
| Screen resolution | 960*480 pixels |
| Tilt angle(back/forth) | 0 º~135 º |
| Rotation angle(left/right) | 0 º~275 º |
| Led light Illuminance | ≥3000 Lux |
| Camera pixels | 2 Million |
| Viewing angle | ≥70º |
| Depth of field | 3~100mm |
| Camera Anti-fog | Yes |
| Image/ Video function | Yes |
| Freeze frame function | Yes |
| Output | USB & AV output |
| Memory type | 8GB Micro SD card |
| Battery type | Rechargable Li-ion |
| Battery capacity | 3400 mAh |
| Continuous working time | ≥6 hrs |
| Charging cycles | >800 times |
| Charging time | <4 hrs |
| Charging Port | Micro USB |
| Input | 100-240V, 50 Hz |
| Output | 5V, 2000mA |
| Warranty | 12 months |
| MOQ | 1 set |

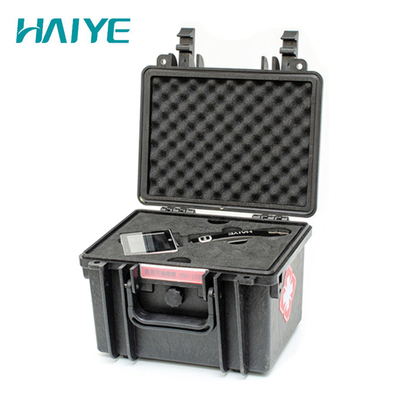

Video guided Laryngoscope Packaging: Anti-drop Plastic case
