Product Details:
|
| Item Name: | Medical Video Laryngoscope | Product Weight: | <320 G |
|---|---|---|---|
| Screen Size: | 3 Inch | Tilt Angle: | 0 º~135 º |
| Screen Rotation: | 0º～275º | Battery Type: | Rechargable |
| Charging Time: | <4 Hrs | Working Time: | 6 Hrs |
Advanced Medical Video Laryngoscope Airway Management Devices For Emergency Airway Management
Studies performed on manikins, or in the operating room during management of controlled airways,, show that time to ventilation and successful placement of the laryngeal tube is on a par with the laryngeal mask airway (LMA) and significantly faster than tracheal intubation using video laryngoscopy
Product of medical video laryngoscope HYHJ-1320 Applications:
1. Clinical endotracheal intubation.
2. Clinical teaching
3. Difficult airway intubation.
4. Anesthesiology, Emergency Diagnosis
5. ICU, Pediatrics, and Ambulance
Medical Video Laryngoscope main features:
1. Clear view: Large depth of field, no blind area for intubation.
2. High resolution: 2 million pixels camera and 3" TFT clear color screen.
3. Intelligent: Built-in memory card is capable of data storage and output.
4. Faster: Unique anti-fog function, convenient and ready to use, no need for preheating.
5. Durable: High precision manufacturing process, ergonomic handle with S/S, long service life.
6. Convenient: Single-use laryngoscope takes pictures, records video, and frames freezing function.
7. Optimization: Large capacity imported rechargeable Li battery provides up to 6 hrs continuous usage.
8. Safety: Disposable sterilized blade packaging to prevent cross-infection for medical care personnel and patients.
9. Versatile: One handle with 3 different S/S camera systems and disposable blade options.

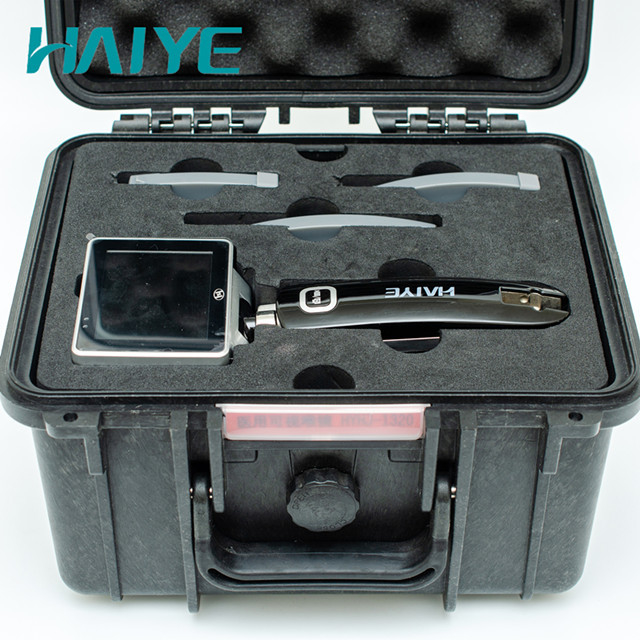

Medical Video Laryngoscope Packaging: Anti-drop plastic suitcase
Package Details: 1 Anti-drop suitcase in a standard export Carton for handha eld video laryngoscope
Carton size: 415*110*345 cm
Gross weight: 2.3 kg
Medical Video Laryngoscope Standard equipment contains:
1x LCD color screen integrated with the handle
3x S/S Camera systems
3x Disposable laryngoscope blades
1x Charger
1x Operation manual
1x Warranty card
| Discription | Medical Video Laryngoscope |
| Item size:(L*W*H) | 11.9*8.5*22cm |
| Item weight | <320 g |
| Power | <2W |
| Screen size | 3 inch LCD |
| Screen resolution | 960*480 pixels |
| Tilt angle(back/forth) | 0 º~135 º |
| Rotation angle(left/right) | 0 º~275 º |
| Led light Illuminance | ≥3000 Lux |
| Camera pixels | 2 Million |
| Viewing angle | ≥70º |
| Depth of field | 3~100mm |
| Camera Anti-fog | Yes |
| Image/ Video function | Yes |
| Freeze frame function | Yes |
| Output | USB & AV output |
| Memory type | 8GB Micro SD card |
| Battery type | Rechargable Li-ion |
| Battery capacity | 3400 mAh |
| Continuous working time | ≥6 hrs |
| Charging cycles | >800 times |
| Charging time | <4 hrs |
