Product Details:
|
| Model No.: | HYHJ-KC | Catagory: | Reusable |
|---|---|---|---|
| Description: | Adult Video Laryngoscope | Product Weight: | <472 G |
| Screen Tilt: | 0 º~135 º | Rotation Angle: | 0 º~275 º |
| Illuminance: | 3000 Lux | Camera Pixels: | 2 Million |

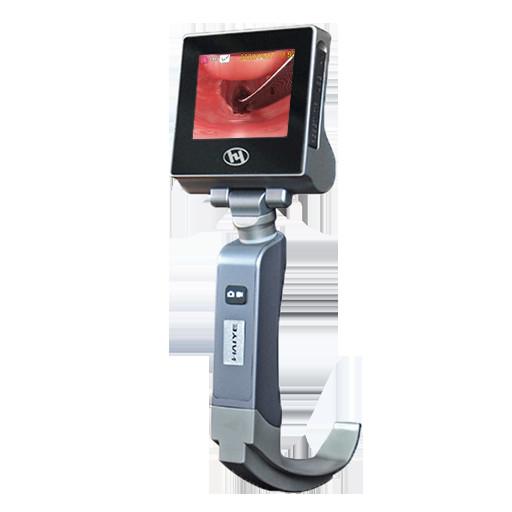

Preferable Reusable Adult Video Laryngoscope For Tracheal Intubation
Where is video laryngoscope applied in?
Tracheal intubation using a laryngoscope secures the respiratory passage in instances where the trachea is blocked or constricted during cardiopulmonary arrest or in surgical operations where the patient is given general anesthesia.
Adult Video Laryngoscope HYHJ-KC Applications:
1. Clinical endotracheal intubation.
2. Clinical teaching
3. Difficult airway intubation.
4. Anesthesiology, Emergency Diagnosis
5. ICU, Pediatrics, and Ambulance
Adult Video Laryngoscope main features:
1.Clear view: Large depth of field, no blind area for intubation.
2.High resolution: 2 million pixels camera and 3" TFT clear color screen.
3.Intelligent: Built-in memory card is capable for data storage and output.
4.Faster: Unique anti-fog function, convenient and faster to use for tracheal intubation.
5.Durable: High precision process, ergonomic metal display screen frame and handle, long service life.
6.Convenient: Portable laryngoscope with taking pictures, video recording and frame freezing function.
7.Optimization: Large capacity imported rechargeable Li battery provides up to 6 hrs continuous usage.
8.Resuable: Camera system in medical grade 304 S/S integrated with handle could be sterilized and reusable.
9.Multiple: Provides up to 5 different camera options. Apply for extreme airways, adult large, adult medium, pediatric and neonate patients.
| Item No. | HYHJ-KC |
| Category | Reusable |
| Description | Video Laryngoscope |
| Item size:(L*W*H) | 15.3*8.5*23cm |
| Item weight | <472 g |
| Power | <2W |
| Screen size | 3 inch LCD |
| Screen resolution | 960*480 pixels |
| Tilt angle(back/forth) | 0 º~135 º |
| Rotation angle(left/right) | 0 º~275 º |
| Led light Illuminance | ≥3000 Lux |
| Camera pixels | 2 Million |
| Viewing angle | ≥70º |
| Depth of field | 3~100mm |
| Camera Anti-fog | Yes |
| Image/ Video function | Yes |
| Freeze frame function | Yes |
| Output | USB & AV output |
| Memory type | 8GB Micro SD card |
| Battery type | Rechargable Li-ion |
| Battery capacity | 3400 mAh |
| Continuous working time | ≥6 hrs |
| Charging cycles | >800 times |
| Charging time | <4 hrs |
| Charging Port | Micro USB |
| Input | 100-240V, 50 Hz |
| Output | 5V, 2000mA |
| Warranty | 12 months |
| MOQ | 1 set |
Video Laryngoscope Packing: High strength protection box
Package Details: 1 Anti-drop suitcase in a standard export Carton for a video laryngoscope
Carton size: 415*110*345 cm
Gross weight: 3.2 kg
Standard equipment contains:
1x LCD color screen
5x Camera systems integrated with S/S reusable blades
5x Disinfection cap
1x Charger
1x Operation manual
1x Warranty card
