Product Details:
|
| Item No.: | HYHJ-KC | Category: | Reusable |
|---|---|---|---|
| Description: | Medical Video Laryngoscope | Item Weight: | <472 G |
| Tilt: | 0 º~135 º | Rotation: | 0 º~275 º |
| Led Illuminance: | 3000 Lux | Camera: | 2 Mega Pixels |

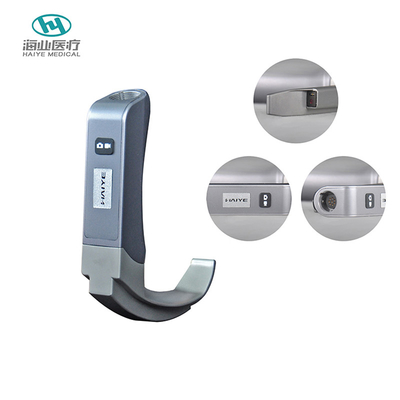

remarkable medical video laryngoscope with miller laryngoscope blades
What is a medical video laryngoscope?
Medical Video laryngoscopy is a form of laryngoscopy whereby the clinician views the larynx indirectly. Images from VDLs are displayed on a monitor and can be recorded, while the magnification allows for a more detailed examination of the larynx.
Medical Video Laryngoscope HYHJ-KC Applications:
1. Clinical endotracheal intubation.
2. Clinical teaching
3. Difficult airway intubation.
4. Anesthesiology, Emergency Diagnosis
5. ICU, Pediatrics, and Ambulance
Medical Video Laryngoscope main features:
1.Clear view: Large depth of field, no blind area for intubation.
2.High resolution: 2 million pixels camera and 3" TFT clear color screen.
3.Intelligent: Built-in memory card is capable for data storage and output.
4.Faster: Unique anti-fog function, convenient and faster to use for tracheal intubation.
5.Durable: High precision process, ergonomic metal display screen frame and handle, long service life.
6.Convenient: Portable laryngoscope with taking pictures, video recording and frame freezing function.
7.Optimization: Large capacity imported rechargeable Li battery provides up to 6 hrs continuous usage.
8.Resuable: Camera system in medical grade 304 S/S integrated with handle could be sterilized and reusable.
9.Versatile: Provides up to 5 different camera options. Apply for extreme airways, adult large, adult medium, pediatric and neonate patients.
| Item No. | HYHJ-KC |
| Category | Reusable |
| Discription | Medical Video Laryngoscope |
| Item size:(L*W*H) | 15.3*8.5*23cm |
| Item weight | <472 g |
| Power | <2W |
| Screen size | 3 inch LCD |
| Screen resolution | 960*480 pixels |
| Tilt angle(back/forth) | 0 º~135 º |
| Rotation angle(left/right) | 0 º~275 º |
| Led light Illuminance | ≥3000 Lux |
| Camera pixels | 2 Million |
| Viewing angle | ≥70º |
| Depth of field | 3~100mm |
| Camera Anti-fog | Yes |
| Image/ Video function | Yes |
| Freeze frame function | Yes |
| Output | USB & AV output |
| Memory type | 8GB Micro SD card |
| Battery type | Rechargable Li-ion |
| Battery capacity | 3400 mAh |
| Continuous working time | ≥6 hrs |
| Charging cycles | >800 times |
| Charging time | <4 hrs |
| Charging Port | Micro USB |
| Input | 100-240V, 50 Hz |
| Output | 5V, 2000mA |
| Warranty | 12 months |
| MOQ | 1 set |
Medical Video Laryngoscope Packing: High strength protection box
Package Details: 1 Anti-drop suitcase in a standard export Carton for a medical video laryngoscope
Carton size: 415*110*345 cm
Gross weight: 3.2 kg
Standard equipment contains:
1x LCD color screen
5x Camera systems integrated with S/S reusable blades
5x Disinfection cap
1x Charger
1x Operation manual
1x Warranty card
