Product Details:
|
| Discription: | Video Assisted Laryngoscope | Color: | Black And Silver |
|---|---|---|---|
| Item Weight: | <320 G | Power: | <2W |
| Screen Size: | 3 Inch LCD | Camera: | 2 Mega |
| Battery Capacity: | 3400 MAh | Battery Capacity: | 3400 MAh Rechargable |
| High Light: | Airway Video Assisted Laryngoscope,3400 MAh Video Assisted Laryngoscope,Rechargeable Video Intubation Devices |
||

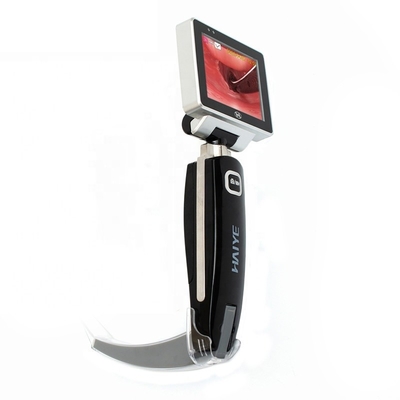

Hot-sale Reliable Video Assisted Laryngoscope for Difficult Airway Intubation
What is video asssited Laryngoscope?
Video assisted laryngoscope (VL) is the latest frontier in airway management. It serves as a valuable adjunct to facilitate intubation in a patient with a known or suspected difficult airway. The standard VL has a digital camera, incorporated into the blade, and without the need for three-axis alignment and minimal swings in hemodynamics, the video laryngoscope provides an optimal glottic view, which is projected onto a screen where it can be visualized by both the anesthesia and surgical teams.
Product of assited laryngoscope HYHJ-1320 Applications:
1. Clinical endotracheal intubation.
2. Clinical teaching
3. Difficult airway intubation.
4. Anesthesiology, Emergency Diagnosis
5. ICU, Pediatrics, and Ambulance
Direct Laryngoscope main features:
1. Clear view: Large depth of field, no blind area for intubation.
2. High resolution: 2 million pixels camera and 3" TFT clear color screen.
3. Intelligent: Built-in memory card is capable of data storage and output.
4. Faster: Unique anti-fog function, convenient and ready to use, no need for preheating.
5. Durable: High precision manufacturing process, ergonomic handle with S/S, long service life..
6. Convenient: Single-use laryngoscope with taking pictures, video recording, and frame freezing function.
7. Optimization: Large capacity imported rechargeable Li battery provides up to 6 hrs continuous usage.
8. Safety: Disposable sterilized blade packaging to prevent cross-infection for medical care personnel and patients.
9. Versatile: One handle with 3 different s/s camera options. From neonate, pediatric to adult patients, and routine to extreme airways.

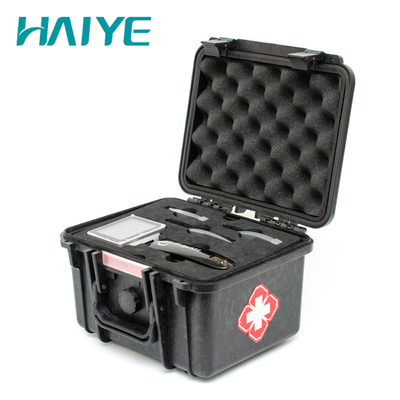

Video assisted Laryngoscope Packaging: Anti-drop plastic strong case
Package Details: 1 Anti-drop suitcase in standard export Carton for direct laryngoscope
Carton size: 415*110*345 cm
Gross weight: 2.3 kg
Direct Laryngoscope Standard equipment contains:

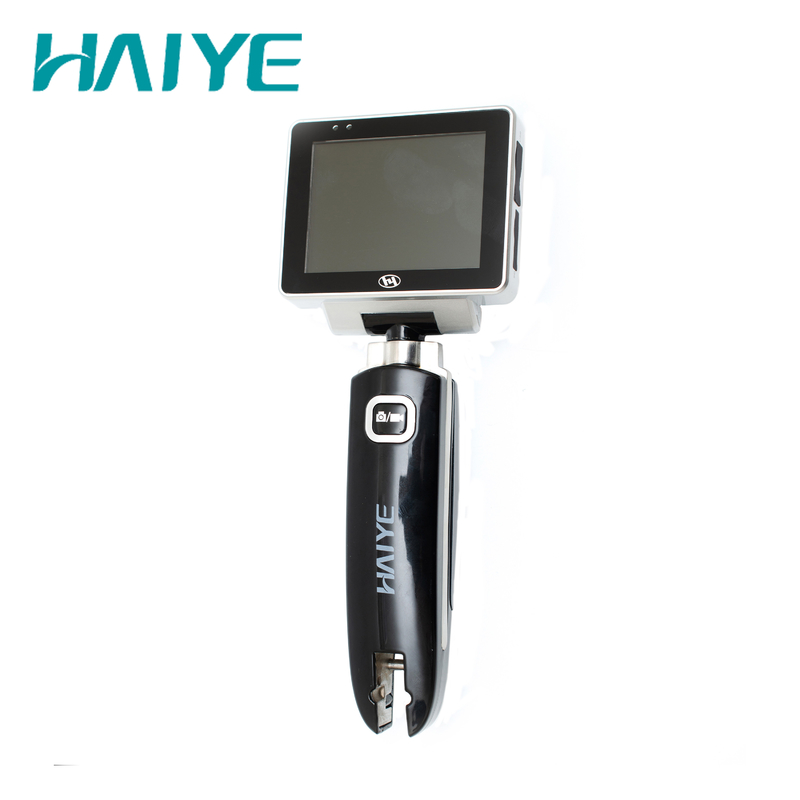

1x LCD color screen integrated with handle
3x S/S Camera systems

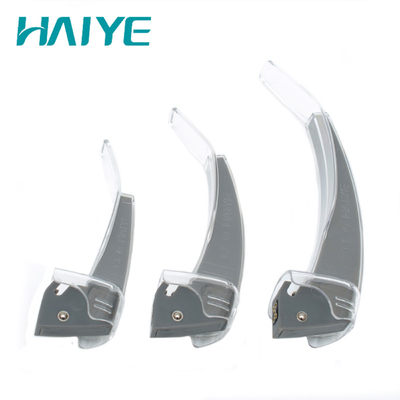

3x Disposable blades
1x Charger
1x Operation manual
1x Warranty card
| Description | |
| Product name | video laryngoscope |
| Power | <2W |
| Screen size | 3 inch LCD |
| Screen resolution | 960*480 pixels |
| Viewing angle | ≥70º |
| Screen tilt angle(back/forth) | 0 º~135 º |
| Screen rotation angle(left/right) | 0º～275º |
| Illuminance | ≥3000 Lux |
| Camera pixels | 2 million |
| Viewing angle | ≥70º |
| Depth of field | 3～100mm |
| Anti-fog | Yes |
| Image/ Video/ Freeze frame function | Yes |
| Output | USB & AV output |
| Memory type | 8GB Micro SD card |
| Battery Type | Rechargable Li-ion |
| Capacity | 3400 mAh |
| Charging cycles | >800 times |
| Charging time | <4 hrs |
| Continuous working time | ≥6 hrs |
| Charging Port | Micro USB |
| Input & output | 100-240V, 50 Hz./5V, 2000mA |
