Product Details:
|
| Material: | Metal | Category: | Reusable |
|---|---|---|---|
| Application: | Entracheal Intubation | Discription: | Video Assisted Laryngoscope |
| Item Weight: | <472 G | Screen Resolution: | 960*480 Pixels |
| Tilt Angle: | 0 º~135 º | Rotation Angle: | 0 º~275 º |
| High Light: | Surgical Intubation Video Assisted Laryngoscope,Metal Video Assisted Medical Surgical Endoscope,Entracheal Intubation Portable Laryngoscope |
||

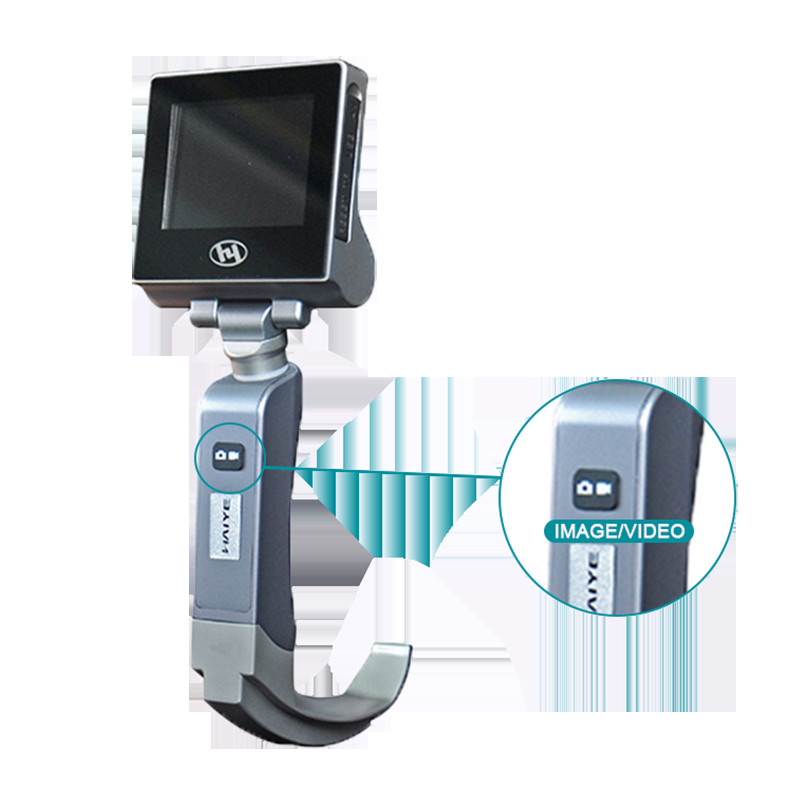

Modern Economical Portable Video Assisted Laryngoscope for Difficult Airway Management
What is a video Assisted laryngoscope?
The term “video assisted laryngoscopy” in its literal sense refers to the airway management technique whereby the larynx is visualized for intubation using a device that has a video camera at the tip of its blade. It is often used interchangeably with the term “indirect laryngoscopy”: visualization of the larynx without alignment of pharyngeal, laryngeal, and oral axes,
Video Assisted Laryngoscope main features:
1.Clear view: Large depth of field, no blind area for intubation.
2.High resolution: 2 million pixels camera and 3" TFT clear color screen.
3.Intelligent: Built-in memory card is capable for data storage and output.
4.Faster: Unique anti-fog function, convenient and faster to use for tracheal intubation.
5.Durable: High precision process, ergonomic metal display screen frame and handle, long service life.

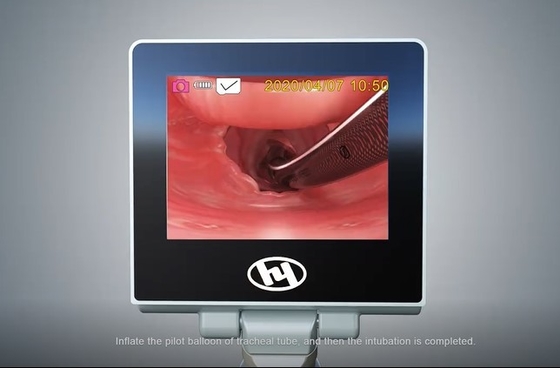

6.Convenient: Portable laryngoscope with taking pictures, video recording and frame freezing function.
7.Optimization: Large capacity imported rechargeable Li battery provides up to 6 hrs continuous usage.
8.Resuable: Camera system in medical grade 304 S/S integrated with handle could be sterilized and reusable.
9.Versatile: Provides up to 5 different camera options. Apply for extreme airways, adult large, adult medium, pediatric and neonate patients.
| Item No. | HYHJ-KC |
| Category | Reusable |
| Discription | Video Assisted Laryngoscope |
| Item size:(L*W*H) | 15.3*8.5*23cm |
| Item weight | <472 g |
| Power | <2W |
| Screen size | 3 inch LCD |
| Screen resolution | 960*480 pixels |
| Tilt angle(back/forth) | 0 º~135 º |
| Rotation angle(left/right) | 0 º~275 º |
| Led light Illuminance | ≥3000 Lux |
| Camera pixels | 2 Million |
| Viewing angle | ≥70º |
| Depth of field | 3~100mm |
| Camera Anti-fog | Yes |
| Image/ Video function | Yes |
| Freeze frame function | Yes |
| Output | USB & AV output |
| Memory type | 8GB Micro SD card |
| Battery type | Rechargable Li-ion |
| Battery capacity | 3400 mAh |
| Continuous working time | ≥6 hrs |
| Charging cycles | >800 times |
| Charging time | <4 hrs |
| Charging Port | Micro USB |
| Input | 100-240V, 50 Hz |
| Output | 5V, 2000mA |
| Warranty | 12 months |
| MOQ | 1 set |
Video Assisted Laryngoscope Packing: High strength protection box
