Product Details:
|
| Material: | Metal & Plastic | Power: | Electric |
|---|---|---|---|
| Application: | Endotracheal Inbubation | Camera: | 2 M Pixel |
| Screen: | 3'' LCD | Packing: | PP Box |
| Battery Charging: | 800 Times | Battery Time: | 6 Hrs |
| High Light: | 3'' LCD Video Assisted Laryngoscope,Endotracheal Intubation Video Assisted Laryngoscope,Electric Video Laryngoscope |
||

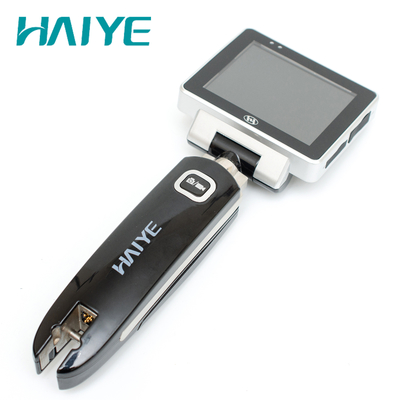

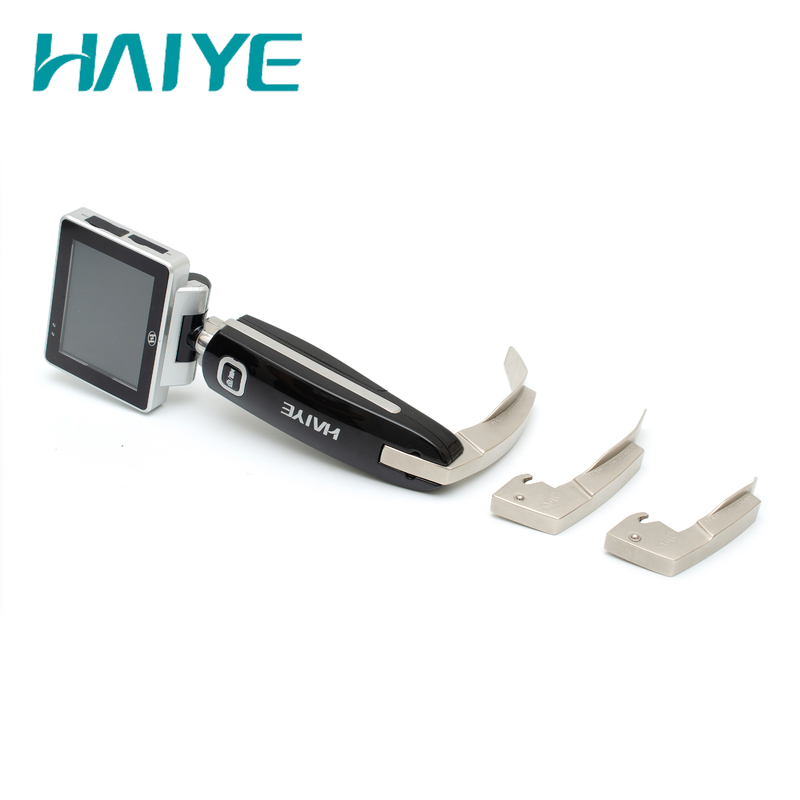

Remarkable Durable Video Assisted Laryngoscope
What is laryngoscope device?
The traditional laryngoscope is a device designed to assist in the visualization of the trachea during intubation. It consists of two parts: a handle with battery holder and a blade.
Video Assited Laryngoscope main features:
1.Clear view: Large depth of field, no blind area for intubation.
2.High resolution: 2 million pixels camera and 3" TFT clear color screen.
3.Intelligent: Built-in memory card is capable for data storage and output.
4.Faster: Unique anti-fog function, convenient and ready to use, no need for preheating.
5.Durable: High precision manufacturing process, ergonomic design handle with long service life.
6.Convenient: Portable laryngoscope with taking pictures, video recording and frame freezing function.
7.Optimization: Large capacity imported rechargeable Li battery provides up to 6 hrs continuous usage.
8.Safety: Disposable sterilized blades packaging to prevent cross infection for medical care personnel and patients.
9.Versatile: Integrated design applies for anesthesiology, ICU,pediatrics,emergency department and ambulance for clinical tracheal intubation.
Rigid Video Laryngoscope Packaging: Anti-drop strong suitcase
Package Details : 1 Anti-drop suitcase in stadard export Carton for video asssited laryngoscope
Carton size: 415*110*345 cm
Gross weight: 2.3 kg
Standard equipment contain:
1x Main machine
3x Camera system
3x Disposable laryngoscope blade
1x Charger
1x Anti-drop suitcase with foam protect in carton
1x Operation manual and warranty card
| Description | Specification | |
| Machine | Product name | video laryngoscope |
| Item weight | 225 g | |
| Power | <2W | |
| Screen | Screen size | 3 inch LCD |
| Resolution | 960*480 pixels (RGB) | |
| Viewing angle | ≥70º | |
| Screen tilt angle(back/forth) | 0 º~135 º | |
| Screen rotation angle(left/right) | 0º～275º | |
| Camera | Illuminance | ≥3000 Lux |
| Resolution | 2 mega or 1600*1200 pixels | |
| Viewing angle | ≥70º | |
| Depth of field | 3～100mm | |
| Anti-fog | Yes | |
| Image/Video function | Image/ Video/ Freeze frame function | Yes |
| Output | USB & AV output | |
| Memory type | 8GB Micro SD card | |
| Battery | Battery Type | Rechargable Li-ion |
| Capacity | 3400 mAh | |
| Charging cycles | >800 times | |
| Charging time | <4 hrs | |
| Continuous working time | ≥6 hrs | |
| Power Adapter | Charging Port | Micro USB |
| Input | 100-240V, 50 Hz. | |
| Output | 5V, 2000mA | |
| Working condition | Temparature | 5℃--40℃ |
| Humidity | ≤80% | |
| Atmospheric pressure | 860hpa～1060hpa |
