Product Details:
|
| Products Name: | Video Laryngoscope | Disposable Blade: | 5 Size Blades |
|---|---|---|---|
| Certificate: | CE ,FDA ,ISO13485 | Blade Material: | PC |
| Batery Capacity: | 3400mA | Rechargeable Battery: | Yes |
| Storage Card: | 64 GB | ||
| High Light: | High Definition Anesthesia Video Laryngoscope,5 Disposable Blades Anesthesia Video Laryngoscope,Anesthesia Laryngoscope Surgical Medical Equipment |
||

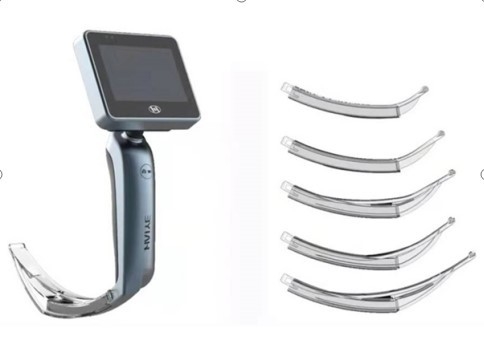

Anesthesia Medical Equipment Video Laryngoscope Disposable 5 size Blades
Haiye Medical 64 GB storage Video Laryngoscope is a portable, economic, durable, high-definition video laryngoscope fit for a disposable blade.
Specifications for the Video Laryngoscope
| Specification | Length of blade(L1) | Blade inserted in part length(L2) | Blade tip width(W1) | Width of blade at camera(W2) | Blade insert partial thickness(W3) |
| Mac 5 | 141.1 | 135.0 | 9.0 | 22.5 | 14.0 |
| Mac 4 | 132.1 | 126.0 | 8.8 | 22.4 | 12.3 |
| Mac 3 | 126.1 | 120.0 | 8.6 | 22.3 | 12.2 |
| Mac 2 | 116.1 | 110.0 | 8.81 | 20.9 | 11.8 |
| Mac 1 | 107.1 | 100.0 | 10.7 | 20.9 | 11.8 |
| Miller 1 | 79.6 | 68.5 | 8.1 | 14.7 | 9.6 |
| Miller 0 | 67.6 | 56.5 | 8.4 | 14.7 | 9.6 |
| Miller 00 | 57.1 | 46.0 | 8.65 | 14.7 | 9.6 |
Screen : 3.0 inch
300 Pixel
Screen Resolution : 960*480
Camera Resolution : 2368*1296
*Anti fog
*Video/Take Photo /Freeze function
*Battery rechargeable
*One button Only, Fast and simple operation
*360 °All sight LCD, no blind spot
Surgical medical equipment disposable 5 size blades Video Laryngoscope
*Application range:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.
**Portable
Light weight, main unit is less than 350g. Excellent body design, easy to install or remove. It's ready to use in no time.
Package Type :Carton ,Standard Export Packing for Ansthesia Adult Video Laryngoscope With 5 size disposable blades.
Outer package size of the device : 415*110*345mm
Disposable blade package size :
50Pcs : 300*230*250mm
100Pcs : 480*315*270mm
