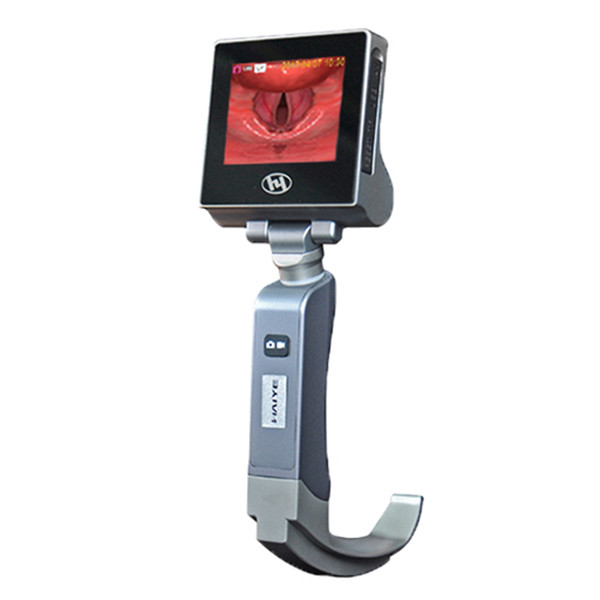

CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch

CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch
CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch

Large Image :  CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch

Product Details:
Place of Origin: China
Brand Name: Haiye
Certification: CE ,FDA ,ISO13485
Model Number: HYHJ-KC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1000-USD1500
Packaging Details: Carton
Delivery Time: 5-8 days after your payment
Payment Terms: L/C, D/A, T/T
Supply Ability: 1000Sets/month

CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch

Description
Screen: 3.0 Inch Resolution: 960*480
Pixel: 2 Million Material: Stainless Steel
Battery: Rechargeable Lithium Battery Anti Fog: Yes

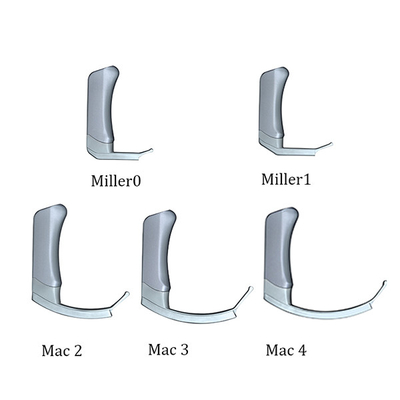

Blade: Reusable Blade Blade Size: 5 Size Blades
High Light:

Rigid Reusable Video Laryngoscope

,

3.5 Inch Rigid Video Laryngoscope

,

Full View Uescope Video Laryngoscopes



CMOS Rigid Video Laryngoscope With Reusable Blades 3.5 Inch Full View





Specifications for the Video Laryngoscope

PARTS
Description
Technical Index
Machine
Screen
3 inch LCD
Resolution
960*480 (RGB)
Viewing angle
≥70º
Power
<2W
Display front and back rotation Angle
0 º~175 º
Weight
225g
Camera
Illuminance
≥3000 LUX
Resolution
1200*1600 px
Image/Video function
Image/ Video function
Yes
Output
USB output, Easy to storage and establish image/video
Memory type
Micro SD card 32GB
Battery
Battery Type
Rechargable lithium battery
Capacity
3400mAh
Cycle life of battery
>600 times
Battery working time
>400min
Charging time
<2(hrs)

Charging Port
Micro USB
Power Adapter
Input
100-250V, 50 Hz.
Output
5V1A
Working

Condition
Temperature
-5℃~+50℃
Humidity
10%~90%
Air Pressure
860~1060hpa
Transport / Storage

Condition
Temperature
-10℃~50℃
Humidity
≤93%
Air Pressure
500~1060hpa





Surgical Medical Equipment Reusable 5 size blades Video Laryngoscope

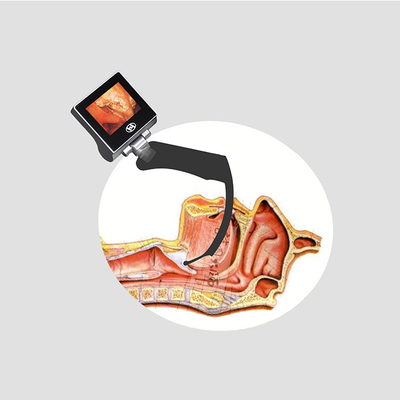

*Application range:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.



NEW Medical Device Anti-fog Emergency Department Use Video Laryngoscope

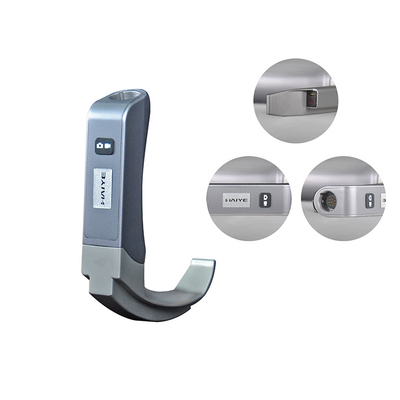

Advantages

**Portable

Light weight, main unit is less than 350g. Disposable blade is vacuum packing. Excellent body design, easy to install or remove. It's ready to use in no time.



Packing and Delivery



Packing Size :400*95*360mm

Package Type :Carton ,Standard Export Packing for Ansthesia Video Laryngoscope With 5 blades.



CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch 0









CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch 1CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch 2

 Video Laryngoscope Workshop



CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch 3

CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch 4





CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch 5

CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch 6



CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch 7





CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch 8

Certificate





CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch 9

CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch 10

CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch 11

CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch 12

CMOS Full View Rigid Reusable Video Laryngoscope With Blades 3.5 Inch 13





Contact us:



HAIYE MEDICAL (Professional Manufacturer of Video Laryngoscope)



XIAN HAIYE MEDICAL EQUIPMENT CO.,LTD.

Add: Fengjing Industrial Park, Xian City, China.

Tel No. : 0086 15529330163

WhatsAPP No.: 0086 13289895671



Welcome to contact me ! Thanks !
