3'' TFT Rigid Video Laryngoscope Intubation Video Machine 960*480

Certification
China Xian Haiye Medical Equipment Co.,Ltd certification
China Xian Haiye Medical Equipment Co.,Ltd certification
I'm Online Chat Now

3'' TFT Rigid Video Laryngoscope Intubation Video Machine 960*480

3'' TFT Rigid Video Laryngoscope Intubation Video Machine 960*480
3'' TFT Rigid Video Laryngoscope Intubation Video Machine 960*480 3'' TFT Rigid Video Laryngoscope Intubation Video Machine 960*480 3'' TFT Rigid Video Laryngoscope Intubation Video Machine 960*480 3'' TFT Rigid Video Laryngoscope Intubation Video Machine 960*480 3'' TFT Rigid Video Laryngoscope Intubation Video Machine 960*480 3'' TFT Rigid Video Laryngoscope Intubation Video Machine 960*480 3'' TFT Rigid Video Laryngoscope Intubation Video Machine 960*480 3'' TFT Rigid Video Laryngoscope Intubation Video Machine 960*480 3'' TFT Rigid Video Laryngoscope Intubation Video Machine 960*480

Large Image :  3'' TFT Rigid Video Laryngoscope Intubation Video Machine 960*480

Product Details:
Place of Origin: CHINA
Brand Name: HAIYE
Certification: CE
Model Number: HYHJ-KC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1000 USD-1500 USD/SET
Packaging Details: CARTOON PACKAGE
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 5000 units per month

3'' TFT Rigid Video Laryngoscope Intubation Video Machine 960*480

Description
LCD SCREEN: 3 INCH Material: Stainless Steel
BLADES: 5 BLADES
High Light:

3'' TFT Rigid Video Laryngoscope

,

Video Laryngoscope Machine 960*480

,

3'' TFT Video Laryngoscope Machine

Hospital use 8GB Surgical laryngoscope Anesthesia and Emergency Apparatus Non-active Reusable video Laryngoscope

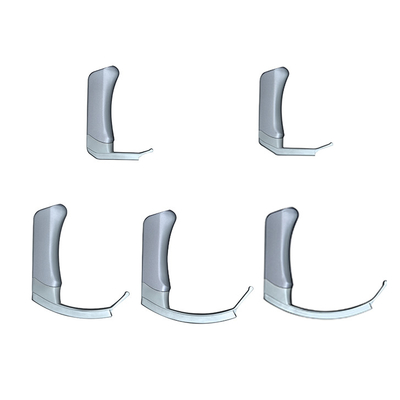

Haiye Video laryngoscope with 5 sized reusable blades

As a perfect solution for doctors in Anesthesia, ICU, Operation Room, Emergency Rescue to handle all kinds of airway management problems.

Applications

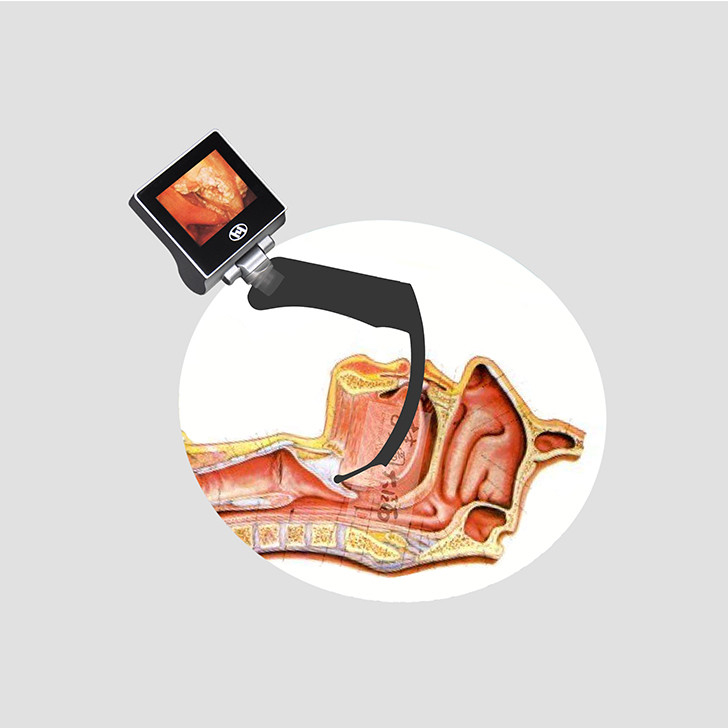

1. Clinical endotracheal intubation.

2. Simulation practice

3. Clinical teaching

4. Difficult airway intubation.

5. Anesthesiology, Emergency Diagnosis

6. ICU, Pediatrics and Ambulance



Main features

1. It has high precision all mold manufacturing technology, stainless steel reinforcement, not easy to damage, long service life.

2. The machine adopts imported large capacity lithium battery, which can last for more than 300 minutes.

3. It has the functions of taking pictures, videos and freeze frames, and can store and export.

4. The unique anti fog function can be used normally after 3 minutes of warm up. There is no blind area.

5. This machine has four specifications, suitable for adult large, medium size, child type and newborn type.

6. The camera system is made of medical used 304 stainless steel and can be reused after disinfection.

7. Mature reliable and fully functional electronic solutions and high-definition digital camera system, with 3'' TFT colorful display screen, image restoration effect is good.



Video laryngoscope Specification;

Components Parameter Technical index
Screen Size 3.0" LCD screen
Resolution 960*480
backlight LED
From front to rear the rotation angle 0-175°
From left to right the rotation angle 0-275°
Data output Easy to create and save the file
Video Output External monitor, facilitate teaching and demonstration.
Laryngoscope blades Resolution 2,000,000
Power ≤12V
laryngoscope blade Reusable blades(4 model)
FOV 70±2°
Illumination ≥3000LUX
Battery Type Lithium-ion rechargeable battery
Voltage 3.7V
Capacity 3000mAh
Charging times >800 times
Charging time <4 hours
