Product Details:
Place of Origin: CHINA
Brand Name: HAIYE
Certification: CE ,ISO13485,FDA
Model Number: HYHJ-1320
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1000-USD1500
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 1000 Sets

Viewing Angle 70 Degree Anesthesia Video Laryngoscope 400hrs Electronic Endoscope

Description
Products: Video Laryngoscope Screen: 3.0 Inch
Resolution: 960*480 Pixel: 2 Million
Material: Stainess Steel & PC Image /Video: Yes
Battery: Rechargeable Lithium Battery Battery Working Time: >400hrs
Cycle Life Of Battery: >600 Times Storage SD Card: 8GB To 32 GB
High Light:

70 Degree Anesthesia Video Laryngoscope

,

400hrs electronic endoscope

,

70 Degree electronic endoscope

Hot Sales ! 32 GB Rechargeable portable Surgical Instruments Disposable Video Laryngoscope

32 GB Rechargeable Emergency Medical Equipment Anti-Fog Disposable Blade Video Laryngoscope



Type: Anesthesia equipment&accessories Brand name:HAIYE

Instrument classification: Class II Product name:Bulb laryngoscope

Color:Silver black Size:Adult large, adult use

Certificate:ISO9001, ISO13458 Material: Medical used stainless steel



Application: emergency diagnosis, difficult airway intubation, pediatrics, ambulance clinical diagnosis,ICU, Department of anesthesiology



Specifications for the Video Laryngoscope

PARTS
Description
Technical Index
Machine
Screen
3 inch LCD
Resolution
960*480 (RGB)
Viewing angle
≥70º
Power
<2W
Display front and back rotation Angle
0 º~175 º
Weight
225g
Camera
Illuminance
≥3000 LUX
Resolution
1280*720 px
Image/Video function
Image/ Video function
Yes
Output
USB output, Easy to storage and establish image/video
Memory type
Micro SD card 16GB
Battery
Battery Type
Rechargable lithium battery
Capacity
3400mAh
Cycle life of battery
>600 times
Battery working time
>400min
Charging time
<2(hrs)

Charging Port
Micro USB
Power Adapter
Input
100-250V, 50 Hz.
Output
5V1A
Working

Condition
Temperature
-5℃~+50℃
Humidity
10%~90%
Air Pressure
860~1060hpa
Transport / Storage

Condition
Temperature
-10℃~50℃
Humidity
≤93%
Air Pressure
500~1060hpa





NEW Medical Device Anti-fog Emergency Department Use Video Laryngoscope
**Portable

Light weight, main unit is less than 350g. Disposable blade is vacuum packing. Excellent body design, easy to install or remove. It's ready to use in no time.



Packing and Delivery



Packing Size :360*320*185mm

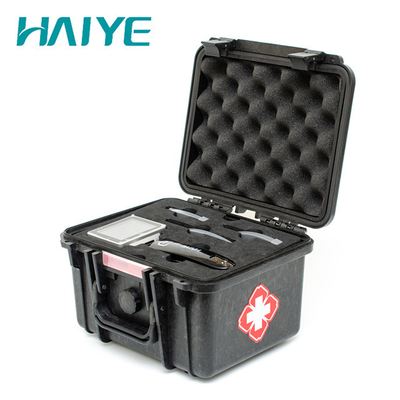

Package Type :Carton ,Standard Export Packing for Ansthesia Video Laryngoscope With 3 Disposable blades for Adult ,Pediatric ,Neonate.
