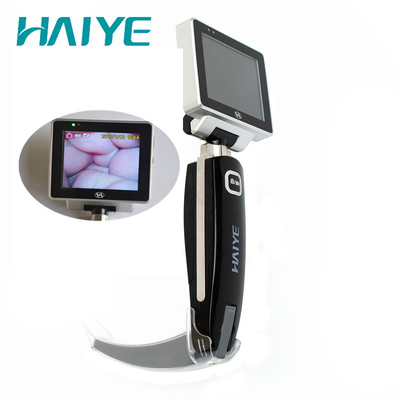

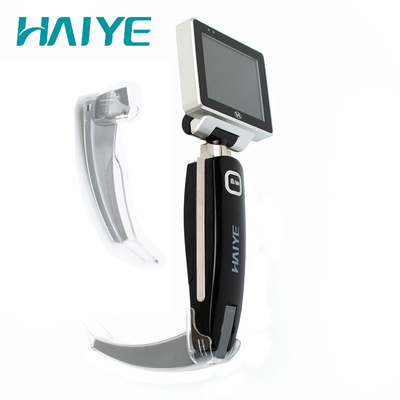

Portable Handle 32GB Anesthesia Video Laryngoscope Airway 2W

Portable Handle 32GB Anesthesia Video Laryngoscope Airway 2W
Portable Handle 32GB Anesthesia Video Laryngoscope Airway 2W Portable Handle 32GB Anesthesia Video Laryngoscope Airway 2W Portable Handle 32GB Anesthesia Video Laryngoscope Airway 2W Portable Handle 32GB Anesthesia Video Laryngoscope Airway 2W

Large Image :  Portable Handle 32GB Anesthesia Video Laryngoscope Airway 2W

Product Details:
Place of Origin: China
Brand Name: HAIYE
Certification: CE ,ISO13485
Model Number: HYHJ-1320
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-USD1500/Set
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 1000 SETS

Portable Handle 32GB Anesthesia Video Laryngoscope Airway 2W

Description
Products Name: Video Laryngoscope Screen: 3.0 Inch
Resolution: 960*480 Pixel: 2 Million
Material: Stainless Steel Image / Video: Yes
Battery: Rechargeable Lithium Battery Battery Capacity: 3400mA
Storage Card: 8 GB To 32 GB Battery Working Time: >400 Hours
Battery Cycly Of The Time: > 600 Times Warranty: 1 Year
High Light:

Portable handle 32GB Anesthesia Video Laryngoscope

,

Portable handle 32GB laryngoscope airway

,

laryngoscope airway 2W

Portable handle 32GB Difficulty Airway Intubation Disposable Blade Of Video Laryngoscope



32 GB Rechargeable Medical Equipment Disposable Portable Anti-fog Video Laryngoscope

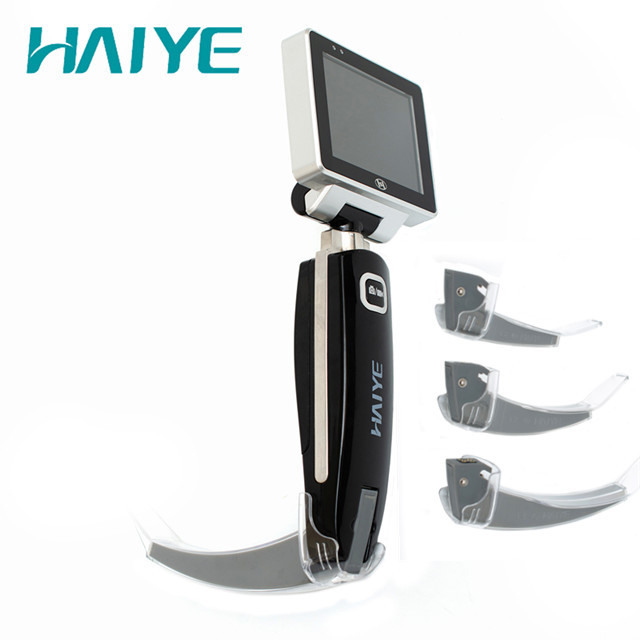

Disposable Blade : 1. Adult 2. Pediatric 3. Neonate



Specifications for the Video Laryngoscope

PARTS
Description
Technical Index
Machine
Screen
3 inch LCD
Resolution
960*480 (RGB)
Viewing angle
≥70º
Power
<2W
Display front and back rotation Angle
0 º~175 º
Weight
225g
Camera
Illuminance
≥3000 LUX
Resolution
1280*720 px
Image/Video function
Image/ Video function
Yes
Output
USB output, Easy to storage and establish image/video
Memory type
Micro SD card 16GB
Battery
Battery Type
Rechargable lithium battery
Capacity
3400mAh
Cycle life of battery
>600 times
Battery working time
>400min
Charging time
<2(hrs)

Charging Port
Micro USB
Power Adapter
Input
100-250V, 50 Hz.
Output
5V1A
Working

Condition
Temperature
-5℃~+50℃
Humidity
10%~90%
Air Pressure
860~1060hpa
Transport / Storage

Condition
Temperature
-10℃~50℃
Humidity
≤93%
Air Pressure
500~1060hpa



Features:

*Anti fog coating on distal lens
*Video/Photo function
*Battery rechargeable
*One button Only, Fast and simple operation
*360 °All sight LCD, no blind spot



*Application range:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.



NEW Medical Device Anti-fog Emergency Department Use Video Laryngoscope
Advantages

**Portable

Light weight, main unit is less than 350g. Disposable blade is vacuum packing. Excellent body design, easy to install or remove. It's ready to use in no time.

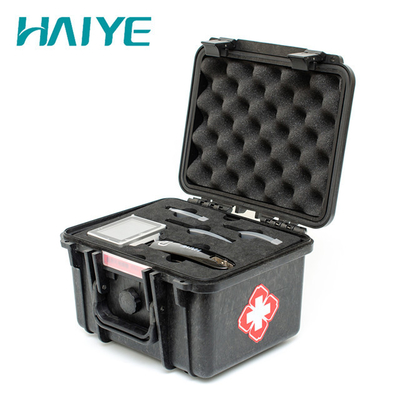

Packing and Delivery



Packing Size :360*320*185mm

Package Type :Carton ,Standard Export Packing for Ansthesia Video Laryngoscope With 3 Disposable blades for Adult ,Pediatric ,Neonate.
