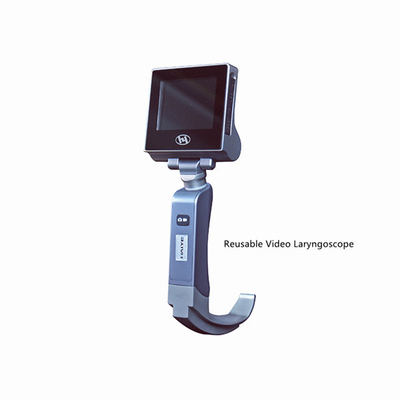

HAIYE Video Assisted Laryngoscope Machine Photo Function

HAIYE Video Assisted Laryngoscope Machine Photo Function
HAIYE Video Assisted Laryngoscope Machine Photo Function HAIYE Video Assisted Laryngoscope Machine Photo Function HAIYE Video Assisted Laryngoscope Machine Photo Function HAIYE Video Assisted Laryngoscope Machine Photo Function HAIYE Video Assisted Laryngoscope Machine Photo Function HAIYE Video Assisted Laryngoscope Machine Photo Function

Large Image :  HAIYE Video Assisted Laryngoscope Machine Photo Function

Product Details:
Place of Origin: CHINA
Brand Name: HAIYE
Certification: CE ,ISO13485 ,FDA
Model Number: HYHJ-KC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD1000-USD1500
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 1000 Set

HAIYE Video Assisted Laryngoscope Machine Photo Function

Description
Product Name: Video Laryngoscope Screen: 3.0 Inch
Resolution: 960*480 Depth Of Field: 3-100mm
Field Angle: 70°+9° Pixel: 2 Million

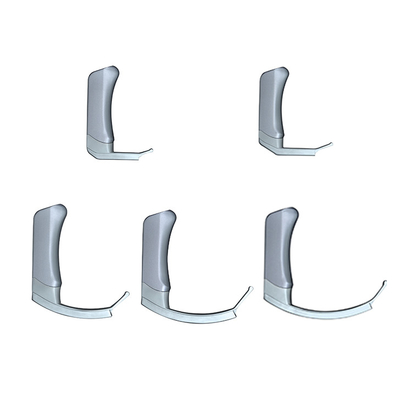

Certificate: CE ,FDA ISO13485 Reusable Blade: 5 Size Blades
Image/ Video: Yes Cycly Time Of Battery: >600 Times
Battery Working Time: >400 Hrs Warranty: 1 Year
Capacity: 3400mA Illuminance: 3000LUX
High Light:

HAIYE video assisted laryngoscope

,

Photo function video assisted laryngoscope

,

Photo function glidescope machine

Hospital Emergency Center Medical Equipment Video Laryngoscope



Specifications for the Video Laryngoscope

PARTS
Description
Technical Index
Machine
Screen
3 inch LCD
Resolution
960*480 (RGB)
Viewing angle
≥70º
Power
<2W
Display front and back rotation Angle
0 º~175 º
Weight
225g
Camera
Illuminance
≥3000 LUX
Resolution
1280*720 px
Image/Video function
Image/ Video function
Yes
Output
USB output, Easy to storage and establish image/video
Memory type
Micro SD card 16GB
Battery
Battery Type
Rechargable lithium battery
Capacity
3400mAh
Cycle life of battery
>600 times
Battery working time
>400min
Charging time
<2(hrs)

Charging Port
Micro USB
Power Adapter
Input
100-250V, 50 Hz.
Output
5V1A
Working

Condition
Temperature
-5℃~+50℃
Humidity
10%~90%
Air Pressure
860~1060hpa
Transport / Storage

Condition
Temperature
-10℃~50℃
Humidity
≤93%
Air Pressure
500~1060hpa



Features:

*Anti fog coating on distal lens
*Video/Photo function
*Battery rechargeable
*One button Only, Fast and simple operation
*360 °All sight LCD, no blind spot



*Application range:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.



NEW Medical Device Anti-fog Emergency Department Use Video Laryngoscope
Advantages

**Portable

Light weight, main unit is less than 350g. Disposable blade is vacuum packing. Excellent body design, easy to install or remove. It's ready to use in no time.

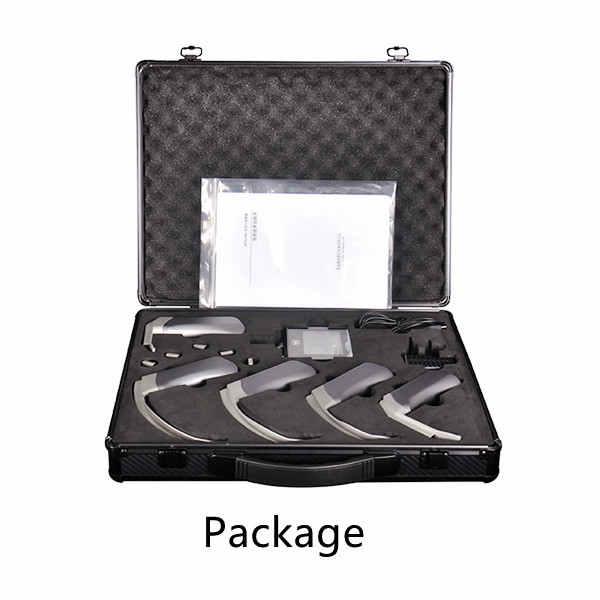

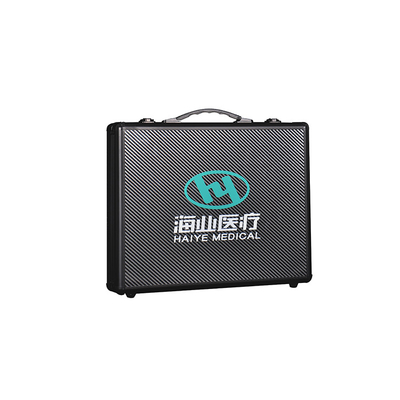

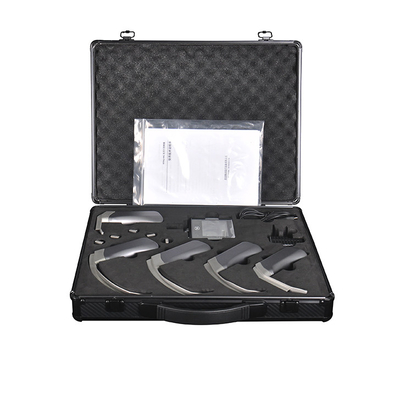

Packing and Delivery



Packing Size :400*95*360mm

Package Type :Carton ,Standard Export Packing for Ansthesia Video Laryngoscope With 5 blades.
