Product Details:
|
| Product Name: | Video Laryngoscope | Resolution: | 960*480 |
|---|---|---|---|
| Pixel: | 2 Million | Image /Video: | Yes |
| Depth Of Field: | 3-100mm | Field Angle: | 70+9 |
| Reusable Blade: | 5 Size Blade | Battery: | Rechargeable Lithium Battery |
| Battery Capacity: | 3400mA | LED Illuminance: | 3000LUX |
| Certificate: | CE ,FDA ,ISO13485 | Warranty: | 1 Year |
| Cycle Life Of Battery: | >600 Times | Battery Working Time: | >400hrs |
| Screen: | 3.0 Inch | ||
| High Light: | 100mm Portable Video Laryngoscope,100mm medical video laryngoscope,medical video laryngoscope 2 Million Pixel |
||
Hospital Respiratory department use Anti-fog Medical device Video Laryngoscope
Specifications for the Video Laryngoscope
| Product Name: | Video Laryngoscope | Resolution: | 960*480 |
|---|---|---|---|
| Pixel: | 2 Million | Image /Video: | Yes |
| Depth Of Field: | 3-100mm | Field Angle: | 70+9 |
| Reusable Blade: | 5 Size Blade | Battery: | Rechargeable Lithium Battery |
| Battery Capacity: | 3400mA | LED Illuminance: | 3000LUX |
| Certificate: | CE ,FDA ,ISO13485 | Warranty: | 1 Year |
| Cycle Life Of Battery: | >600 Times | Battery Working Time: | >400hrs |
| Screen: | 3.0 Inch |
|
PARTS
|
Description
|
Technical Index
|
|
Machine
|
Screen
|
3 inch LCD
|
|
Resolution
|
960*480 (RGB)
|
|
|
Viewing angle
|
≥70º
|
|
|
Power
|
<2W
|
|
|
Display front and back rotation Angle
|
0 º~175 º
|
|
|
Weight
|
225g
|
|
|
Camera
|
Illuminance
|
≥3000 LUX
|
|
Resolution
|
1280*720 px
|
|
|
Image/Video function
|
Image/ Video function
|
Yes
|
|
Output
|
USB output, Easy to storage and establish image/video
|
|
|
Memory type
|
Micro SD card 32GB
|
|
|
Battery
|
Battery Type
|
Rechargable lithium battery
|
|
Capacity
|
3400mAh
|
|
|
Cycle life of battery
|
>600 times
|
|
|
Battery working time
|
>400min
|
|
|
Charging time
|
<2(hrs)
|
|
|
|
Charging Port
|
Micro USB
|
|
Power Adapter
|
Input
|
100-250V, 50 Hz.
|
|
Output
|
5V1A
|
|
|
Working
Condition |
Temperature
|
-5℃~+50℃
|
|
Humidity
|
10%~90%
|
|
|
Air Pressure
|
860~1060hpa
|
|
|
Transport / Storage
Condition |
Temperature
|
-10℃~50℃
|
|
Humidity
|
≤93%
|
|
|
Air Pressure
|
500~1060hpa
|
Features:
*Anti fog coating on distal lens
*Video/Photo function
*Battery rechargeable
*One button Only, Fast and simple operation
*360 °All sight LCD, no blind spot

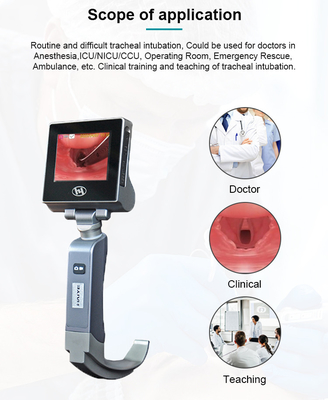

*Application range:

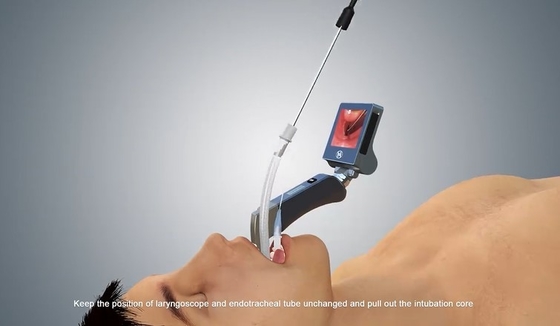

Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.
**Portable
Light weight, main unit is less than 350g. Disposable blade is vacuum packing. Excellent body design, easy to install or remove. It's ready to use in no time.
Packing Size :400*95*360mm
Package Type :Carton ,Standard Export Packing for Ansthesia Video Laryngoscope With 1 blade.
