Home ProductsVideo Assisted Laryngoscope

3 Inch LCD Portable Video Assisted Laryngoscope 3400 MA

Certification
China Xian Haiye Medical Equipment Co.,Ltd certification
China Xian Haiye Medical Equipment Co.,Ltd certification
I'm Online Chat Now

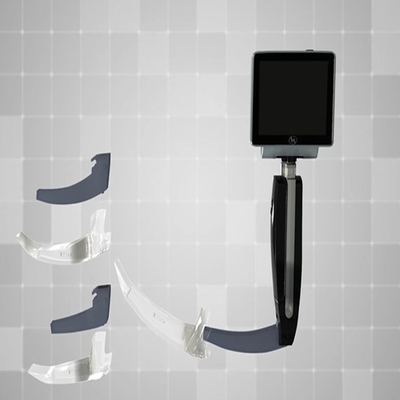

3 Inch LCD Portable Video Assisted Laryngoscope 3400 MA

3 Inch LCD Portable Video Assisted Laryngoscope 3400 MA
3 Inch LCD Portable Video Assisted Laryngoscope 3400 MA 3 Inch LCD Portable Video Assisted Laryngoscope 3400 MA 3 Inch LCD Portable Video Assisted Laryngoscope 3400 MA 3 Inch LCD Portable Video Assisted Laryngoscope 3400 MA 3 Inch LCD Portable Video Assisted Laryngoscope 3400 MA

Large Image :  3 Inch LCD Portable Video Assisted Laryngoscope 3400 MA

Product Details:
Place of Origin: China
Brand Name: Haiye
Certification: CE ,FDA ,ISO13485
Model Number: HYHJ-1320
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 1000-1500 USD
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 1000 Set

3 Inch LCD Portable Video Assisted Laryngoscope 3400 MA

Description
Product Name: Video Larngoscope Screen: 3.0 Inch
Resolution: 960*480 Pixel: 2 Million
Viewing Angle: >70 ° Battery: Rechargeable Lithium Battery

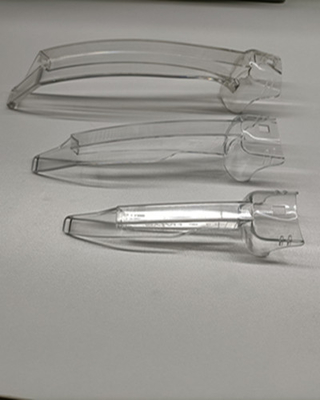

Depth Of Field: 70+2 Disposable Blade: Adult ,Pediatric ,Neonate
Battery Capacity: 3400 MA Illuminance: >3000LUX
Memory Type: 8GB To 32 GB Image/ Video Function: Yes
Cycle Life Of Battery: >500 Times Battery Working Time: >400 Min
High Light:

3 inch LCD portable laryngoscope

,

portable laryngoscope 3400 mA

,

3 inch LCD Video Assisted Laryngoscope

Adult ,Pediatric and Neonate Disposable Blade Portable Video Laryngoscope Factory



Specifications for the Video Laryngoscope

PARTS
Description
Technical Index
Machine

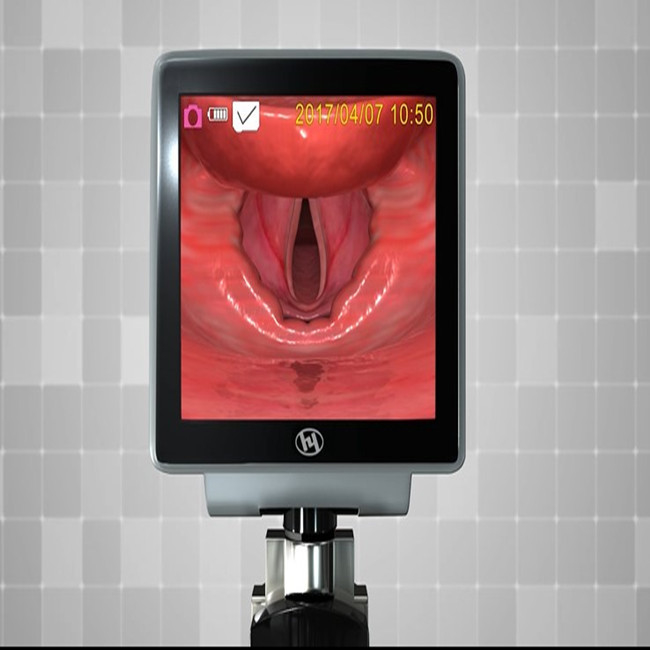

Display
3 inch LCD
Resolution
960*480 (RGB)
Viewing angle
≥70º
Pixel
2 Million
Display front and back rotation Angle
0 º~175 º
Weight
225g
Camera
Illuminance
≥150 LUX
Resolution
1280*720 px
Image/Video function
Image/ Video function
Yes
Output
USB output, Easy to storage and establish image/video
Memory type
Micro SD card 8GB
Battery
Battery Type
Rechargable lithium battery
Capacity
3400mAh
Cycle life of battery
>600 times
Battery working time
>400min
Charging time
<2(hrs)

Charging Port
Micro USB
Power Adapter
Input
100-250V, 50 Hz.
Output
5V1A
Working

Condition
Temperature
-5℃~+50℃
Humidity
10%~90%
Air Pressure
860~1060hpa
Transport / Storage

Condition
Temperature
-10℃~50℃
Humidity
≤93%
Air Pressure
500~1060hpa









Video Laryngoscope Model No.: HYHJ-1320
