Data Storage 8GB Rechargeable Reusable Video Laryngoscope HYHJ-KC

China Stainlesss steel Rechargeable Video Laryngoscope

Professional Video Laryngoscope Factory

First Aid Assitanted Intubation Device Video Layrngoscope

Reusable Video Laryngoscope

Blade size :1. Difficulty-blade 2.Large-adult 3. Medium-adult 4.Pediatric 5.Neonate

HAIYE MEDICAL ====== (Care For Your Health)

Application: Video Laryngoscope

Widely used for anesthesia, emergency department and ICU, pediatrics, ambulance etc, for clinical endotracheal intubation, simulated practice, clinical teaching, difficult airway intubation.

1. Clinical endotracheal intubation.

2. Simulation practice

3. Clinical teaching

4. Difficult airway intubation.

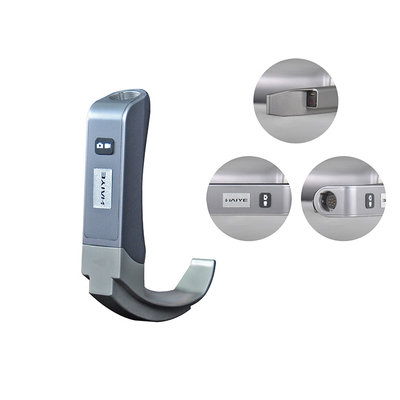

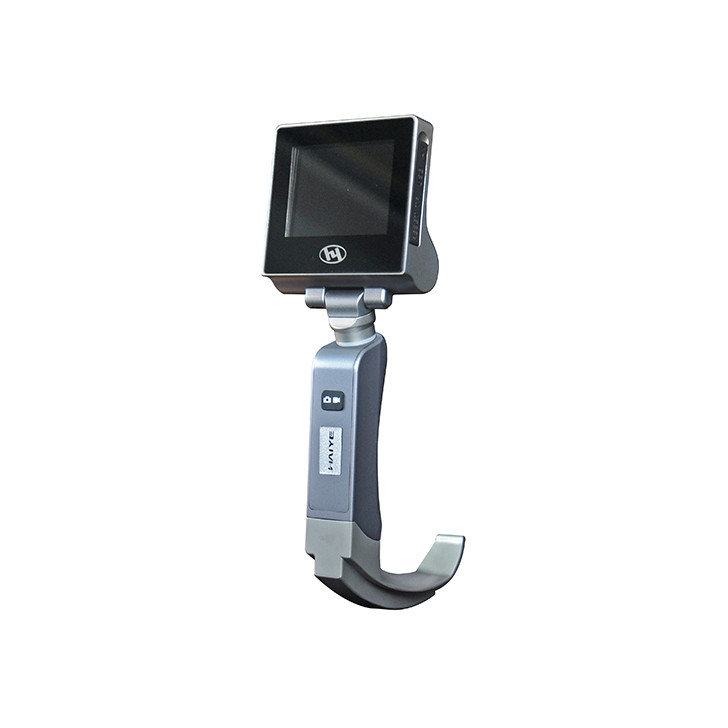

Reusable video laryngoscope : HYHJ-KC medical visual laryngoscope is a forward-looking product of our company. This machine has the advantages of novel design, beautiful appearance, small size, portability, complete function and simple use. This machine is a medical visual laryngoscope which integrates functions, portability, practicability, durability and high configuration,It is a tailor-made for the people's conscience! It is an ideal teaching tool for hospital first aid, clinical application and trachea intubation lead-in teaching.

Emergency Medical equipment USB 8GB Electronical endoscope Adult Use 3.0 '' display screen Anesthesia Airtraq video Laryngoscope

With high precision, full mold manufacturing process, stainless steel reinforcement, not easy to damage, long service life;

With 3 inch TFT color display screen, and can Large angle rotation up and down, left and right;

The machine adopts imported high-capacity lithium battery, lasts for more than 300 minutes;

With pictures, video, freeze and other functions, and can store and export;

Unique dual anti fog function, that is, open and use, no preheating,intubation without blind area ;

With three different type of cameras , three different blades are available for adults, children and newborns.

Disposable packing and sterilizing of blade to prevent cross infection;

Mature, reliable, full-featured electronic solutions and high- definition digital camera system, with 3 inch TFT color display screen, the image restoration effect is good.

Technical Parameter : Video Laryngoscope

Resolution :960×480

Pixel :2 million

Effective depth of field :3~100mm

Field angle :70º±2°

Battery life :≥6h

Display: 3 "TFT color display screen

Front and back rotation angle of display :0º~135º,Left and right rotation angle of display:0º~275º

The light source built-in high power waterproof LED light source, and the illumination:≥3000lux

Working Environment

Temperature :5℃~40℃

Humidity:≤80%

Atmospheric pressure :860hpa~1060hpa

Charger input :100~240V,50/60Hz,0.35A

Charger output :5V,2000mA

Charging time :≤4hs

Video Laryngoscope assembly procedure diagram

Packaging Details : Carton, Standard export packing for video laryngoscope

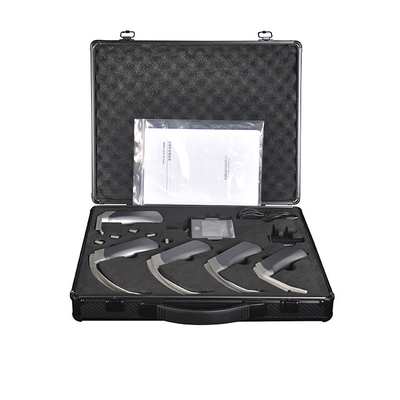

An entire set of KC standard equipment contain :

1x Main machine

1x Camera system

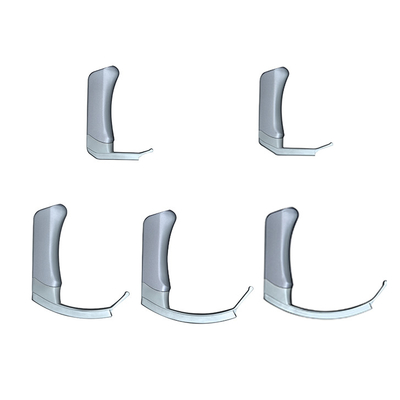

1x 5 size reusable blades

1x Charger

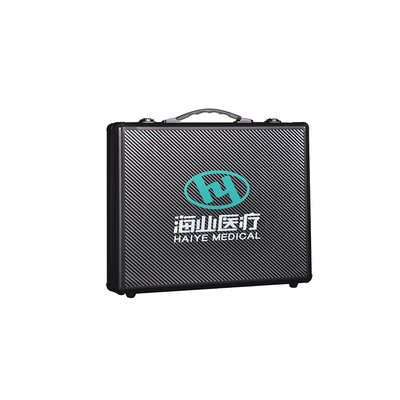

1x Suit case

1x Operation manual and warranty card
