Product Details:
|
| Material: | Stainless Steel | Display: | 3 "TFT Color Screen |
|---|---|---|---|
| Battery Life: | Continous Use 6h | Resolution: | 960*480 |
| Depth Of Field: | 3~100mm | Viewing Angle: | 70°± 2° |
| Warranty: | 1 Year |
Difficult Airway Intubation Video Laryngoscope Suitable for Various People
Why Choose Vedio Laryngoscope?
Video laryngoscopy can prevent doctors from being exposed to droplet transmitted causative agent and enhance the safety of users. Airway management occupational therapists take certain precautions an further prevent droplet transmit pathogens, reduce the COVID-19 infection risk for people who take care of infected patients.
the first video laryngoscopy intubation need less time and will be more successful compared with traditional laryngoscopy, also reduced the hemodynamic response after intubation .
Haiye Medical Equipment has successively designed and developed a full range of disposable and reusable video laryngoscopes, anesthesia pharyngoscopes, video rigid and flexible endoscopes, disposable hysteroscopes, disposable uroscopes, etc. product.
Choose HAIYE MEDICAL , Choose Professional!

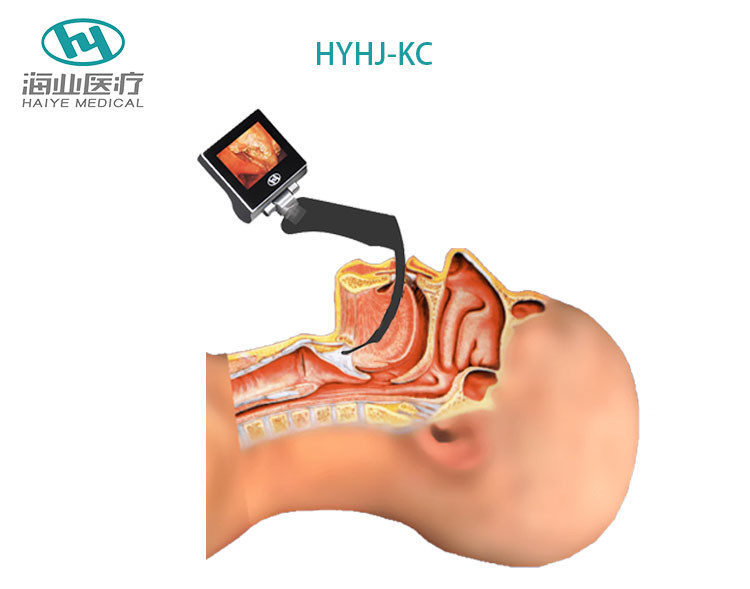

Newest arrival product: HYHJ-KC
Technical feature
| Name | Technical term | Technical Index |
|
Machine |
Resolution | 960 x 480 |
| Pixels | 200 million | |
| Display | 3 "TFT color screen | |
| Viewing angle | 70°± 2° | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |

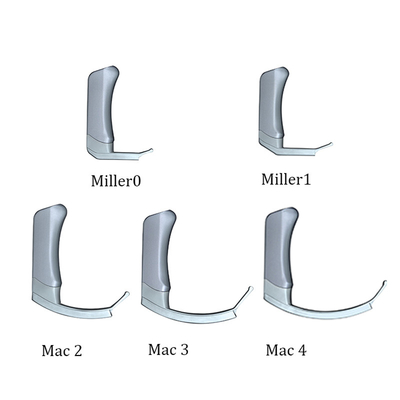

| laryngoscope | Suit for different oral structure,aseptic packaging for single use | |
|
Power Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continous use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |

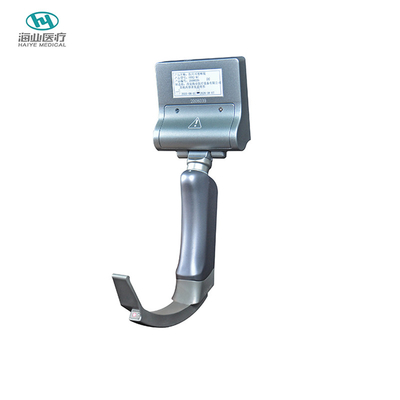

Picture Display
Video laryngoscope Precautions:
1. Do not use too much force on video laryngoscope.
2. The display parts of video laryngoscope are not waterproof, please pay attention to waterproofing when cleaning.
3. Please charge the video laryngoscope for the first time.
4. When the video laryngoscope is not used for a long time, it needs to be charged once every 2-3 months.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
