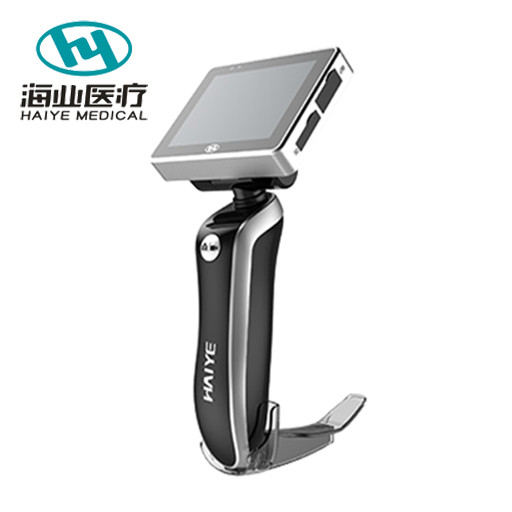

Distinguished Pediatric Video Laryngoscope For Laryngoscope Intubation

Distinguished Pediatric Video Laryngoscope For Laryngoscope Intubation

How does a pediatric video laryngoscope  been used?

Tracheal intubation using a pediatric video laryngoscope secures the respiratory passage in instances where the trachea is blocked or constricted during cardiopulmonary arrest or in surgical operations where the children or neonate is given general anesthesia.

Pediatric Video Laryngoscope main features:

1.Clear view: Large depth of field, no blind area for intubation.

2.High resolution: 2 million pixels camera and 3" TFT clear color screen.

3.Intelligent: Built-in memory card is capable for data storage and output.

4.Faster: Unique anti-fog function, convenient and ready to use, no need for preheating.

5.Durable: High precision manufacturing process, ergonomic design handle with long service life.

6.Convenient: Portable laryngoscope with taking pictures, video recording and frame freezing function.

7.Optimization: Large capacity imported rechargeable Li battery provides up to 6 hrs continuous usage.

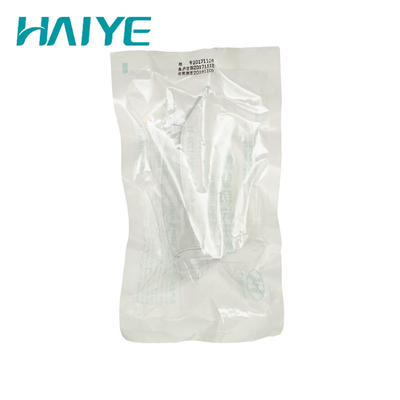

8.Safety: Disposable sterilized blades packaging to prevent cross infection for medical care personnel and children or neonate.

9.Versatile: Integrated design applies for anesthesiology, ICU,emergency department and ambulance for clinical tracheal intubation.

Certificates such as

CE, FDA, ISO 13485, ISO9001

are proofs of our quality.

All of the pediatric Video Laryngoscope are

fully inspected before shipment.



Pediatric video Laryngoscope  Specification:

Item No.	HYHJ-1330II
Category	Disposable
Discription	pediatric video Laryngoscope
Item size:(L*W*H)	11.9*8.5*19cm
Item weight	<307 g
Power	<2W
Screen size	3 inch LCD
Screen resolution	960*480 pixels
Tilt angle(back/forth)	0 º~135 º
Rotation angle(left/right)	0 º~275 º
Led light Illuminance	≥3000 Lux
Camera pixels	2 Million
Viewing angle	≥70º
Depth of field	3~100mm
Camera Anti-fog	Yes
Image/ Video function	Yes
Freeze frame function	Yes
Output	USB & AV output
Memory type	8GB Micro SD card
Battery type	Rechargable Li-ion
Battery capacity	3400 mAh
Continuous working time	≥6 hrs
Charging cycles	>800 times
Charging time	<4 hrs
Charging Port	Micro USB
Input	100-240V, 50 Hz
Output	5V, 2000mA
Warranty	12 months

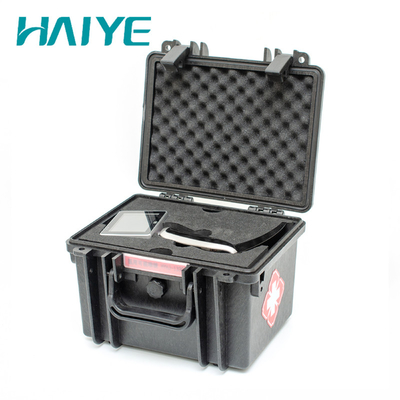

Pediatric Video Laryngoscope Packaging: Anti-drop Protective case



Packaging Details : Standard export carton packing for pediatric video laryngoscope

Package size: 415*110*345 cm

Gross weight: 2.3 kg



Standard equipment contain :

1x Integrated machine

1x Disposable laryngoscope blades

1x Charger

1x Operation manual

1x Warranty card
