Surgical Operation Portable Medical Handheld Reusable Visual Flexible Video Laryngoscope with Stainless Reusable Blade

Certification
China Xian Haiye Medical Equipment Co.,Ltd certification
China Xian Haiye Medical Equipment Co.,Ltd certification
I'm Online Chat Now

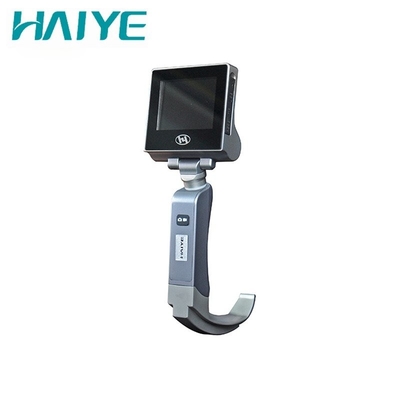

Surgical Operation Portable Medical Handheld Reusable Visual Flexible Video Laryngoscope with Stainless Reusable Blade

Surgical Operation Portable Medical Handheld Reusable Visual Flexible Video Laryngoscope with Stainless Reusable Blade
Surgical Operation Portable Medical Handheld Reusable Visual Flexible Video Laryngoscope with Stainless Reusable Blade Surgical Operation Portable Medical Handheld Reusable Visual Flexible Video Laryngoscope with Stainless Reusable Blade Surgical Operation Portable Medical Handheld Reusable Visual Flexible Video Laryngoscope with Stainless Reusable Blade

Large Image :  Surgical Operation Portable Medical Handheld Reusable Visual Flexible Video Laryngoscope with Stainless Reusable Blade

Product Details:
Place of Origin: Shaanxi China
Brand Name: HAIYE
Certification: CE/FDA/ISO13485/ISO9001
Model Number: HYHJ-KC
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 900-1500USD/SET
Packaging Details: cartoon
Delivery Time: 5-8days
Payment Terms: T/T, L/C
Supply Ability: 1000sets

Surgical Operation Portable Medical Handheld Reusable Visual Flexible Video Laryngoscope with Stainless Reusable Blade

Description
Product Namee: Reusable Video Laryngoscope Material: Stainless Steel
Display: 3 "TFT Color Display Screen Carema: CMOS,double Anti Fog
Resolution: 960*480 Charging Time: <4h
Battery Life: >6h Warranty: 1 Year
Effective Depth Of Field: 3-100mm

Surgical Operation Portable Medical Handheld Reusable Visual Flexible Video Laryngoscope with Stainless Reusable Blade

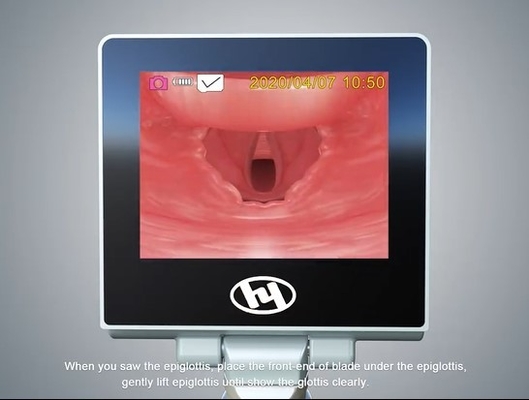

This device provides a choice of standard or channeled disposable blades, making it adaptable to the anesthesia provider's preference. Its reusable 3.0-inch, full-color TFT LCD display features anti-fog treatment and offers 70°  views and 3~100 that can also be transmitted to external monitors and recording devices.



PARTS
Description
Technical Index
Machine
Screen
3 inch LCD
Resolution
960*480 (RGB)
Viewing angle
≥70º
Power
<2W
Display front and back rotation Angle
0 º~175 º
Camera
Illuminance
≥3000 LUX
Resolution
1600*1200 px
Image/Video function
Image/ Video function
Yes
Output
USB output, Easy to storage and establish image/video
Memory type
Micro SD card 32GB
Battery
Battery Type
Rechargable lithium battery
Capacity
3400mAh
Cycle life of battery
>600 times
Battery working time
>400min
Charging time
<4(hrs)

Charging Port
Micro USB
Power Adapter
Input
100-250V, 50 Hz.
Output
5V1AC

Surgical Operation Portable Medical Handheld Reusable Visual Flexible Video Laryngoscope with Stainless Reusable Blade 0Surgical Operation Portable Medical Handheld Reusable Visual Flexible Video Laryngoscope with Stainless Reusable Blade 1

Description of Products:

The product HYHJ-KC’s design fully takes into account the particularity of clinical use, It adopts a large number of medical grade metal materials and advanced processing technology; optimized and improved the structure design, imaging quality and convenience of use which perfectly combines the appearance and use together.



Product features:

simple and graceful, clear imaging, simple operation, complete specifications. Products with photography, freeze frame, video recording, HD output, data storage, large capacity export and other functions. The large-capacity battery lasts longer, and the display can rotate from front to back, left to right.



Product configuration:

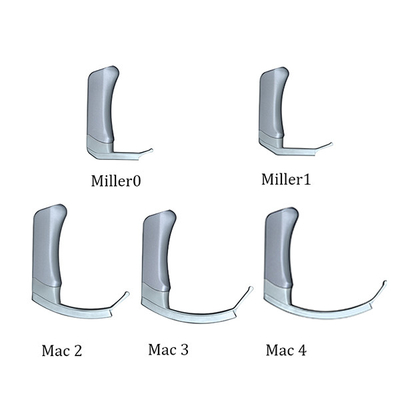

In order to enhance the convenience of use, the display screen can be connected with any size of the handle, the product can be reused and one-time use (5 specifications: adult large, adult medium, child, newborn, premature).

Surgical Operation Portable Medical Handheld Reusable Visual Flexible Video Laryngoscope with Stainless Reusable Blade 2Surgical Operation Portable Medical Handheld Reusable Visual Flexible Video Laryngoscope with Stainless Reusable Blade 3

  • One key boot without pre heating
  • Power key contains scale freezing function
  • Standard 3 inch screen clarity high practiability
  • The frame is made of medical 316 stainless steel with high strength and high hardness
  • Camera button contaions the vedio function
  • Camera system with medical 316 stainless steel
  • Double anti fog, no blind area
  • Transparent laryngoscope blade
  • Different specifications meet various oral structure, asepsis packing a one –time useSurgical Operation Portable Medical Handheld Reusable Visual Flexible Video Laryngoscope with Stainless Reusable Blade 4

Welcome to inquiry if you have any interests!

OEM order is acceptable.
