Product Details:
|
| Material: | Metal And Stainless Steel | Reusable: | Yes |
|---|---|---|---|
| Application: | Multiple Departments | Battery Type:: | Li-ion Rechargable |
| Screen Size: | 3'' Color Screen | Tilt: | 0 º~135 º |
| Rotation: | 0º～275º | Camera: | 2 Million Pixels |

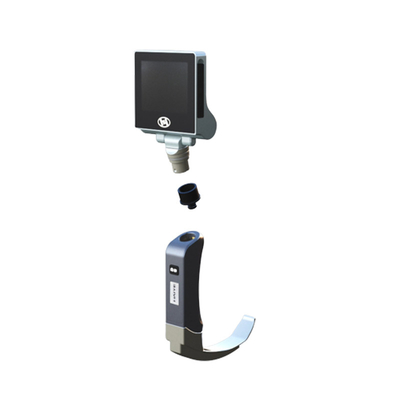

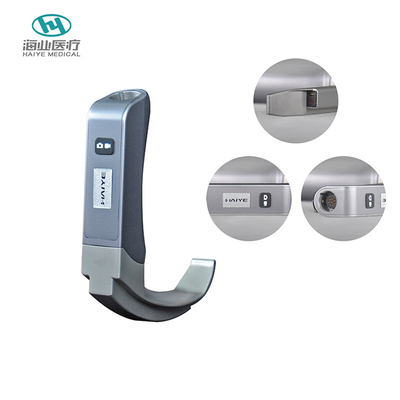

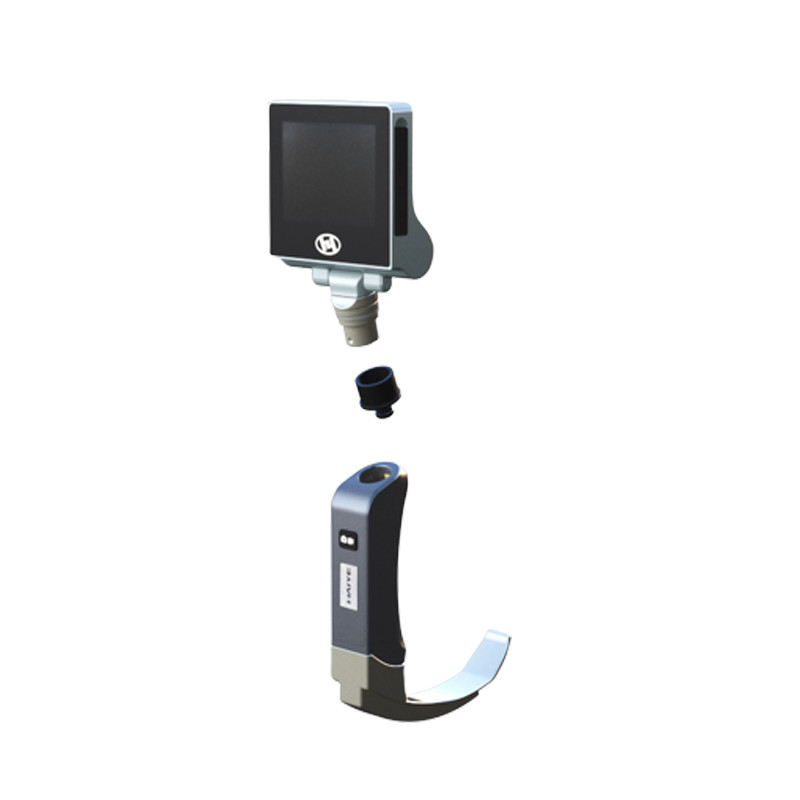

Remarkable Durable Medical Direct Laryngoscope for Difficult Airway Intubation
Is Medical video laryngoscopy direct or indirect?
The current practice is to use direct laryngoscopy to facilitate intubation; video assisted laryngoscopy, has the potential to facilitate successful intubation while improving intubation outcomes.
Direct Video Laryngoscope main features:
1.Clear view: Large depth of field, no blind area for intubation.
2.High resolution: 2 million pixels camera and 3" TFT clear color screen.
3.Intelligent: Built-in memory card is capable for data storage and output.
4.Faster: Unique anti-fog function, convenient and faster to use for tracheal intubation.
5.Durable: High precision process, ergonomic metal display screen frame and handle, long service life.
6.Convenient: Portable laryngoscope with taking pictures, video recording and frame freezing function.
7.Resuable: Camera system in medical grade 304 S/S integrated with handle could be sterilized and reusable.
8.Versatile: Provides up to five different camera options. Apply for extreme airways, adult large, adult medium, pediatric and neonate patients.
| Description | Specification | |
| Machine | Product name | video laryngoscope |
| Item weight | 225 g | |
| Power | <2W | |
| Screen | Screen size | 3 inch LCD |
| Resolution | 960*480 pixels (RGB) | |
| Viewing angle | ≥70º | |
| Screen tilt angle(back/forth) | 0 º~135 º | |
| Screen rotation angle(left/right) | 0º～275º | |
| Camera | Illuminance | ≥3000 Lux |
| Resolution | 2 mega or 1600*1200 pixels | |
| Viewing angle | ≥70º | |
| Depth of field | 3～100mm | |
| Anti-fog | Yes | |
| Image/Video function | Image/ Video/ Freeze frame function | Yes |
| Output | USB & AV output | |
| Memory type | 8GB Micro SD card | |
| Battery | Battery Type | Rechargable Li-ion |
| Capacity | 3400 mAh | |
| Charging cycles | >800 times | |
| Charging time | <4 hrs | |
| Continuous working time | ≥6 hrs | |
| Power Adapter | Charging Port | Micro USB |
| Input | 100-240V, 50 Hz. | |
| Output | 5V, 2000mA | |
| Working condition | Temparature | 5℃--40℃ |
| Humidity | ≤80% | |
| Atmospheric pressure | 860hpa～1060hpa |
Medical Video Laryngoscope Package: High strength protection box
Packaging Details : Standard export carton packing for medical video laryngoscope
Package size: 415*110*345 cm
Gross weight: 3.20 kg
Standard equipment contain :
1x Main machine
5x Camera systems
5 x reusable stainless steel blades
1x Charger
1x Anti-drop suitcase with foam protect in carton
1x Operation manual and warranty card
